UHGS1032 HG-S1032 PANASONIC HG-S contact measurement sensor, head, standard type, resolution 0,5μm, accuracy..
UHGS1032
HG-S1032
PANASONIC

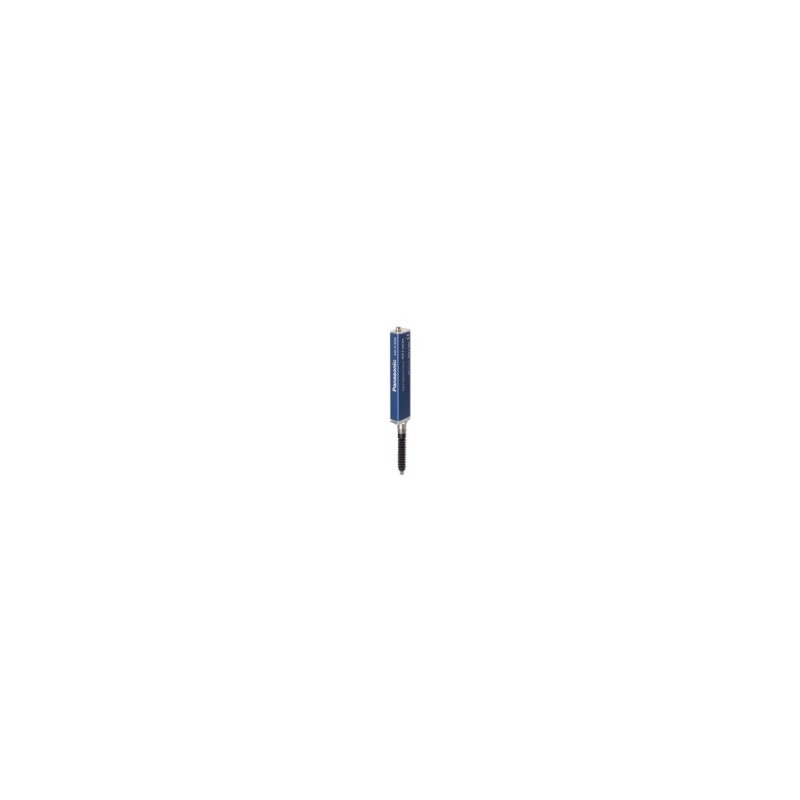

HG-S contact measurement sensor, head, standard type, resolution 0,5μm, accuracy 3μm, range 32mm
HG-S - Contact measurement sensor. Standard model sensor head. Resolution 0.5μm. Precision 3μm. Range 32mm
HG-S1032_Contact-Type Digital Displacement Sensor_Contact-Type Digital Displacement Sensor HG-S_32 mm 1.260 in typeGeneral purpose Standard type
Laser Sensors - Spot Type - AN - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | HG-S1032 |
| Part Number | HG-S1032 |
| Product | Contact-Type Digital Displacement Sensor |
| Details | 32 mm 1.260 in type General purpose Standard type |
| Product name | Contact-Type Digital Displacement Sensor HG-S |
| Item | Specifications |
|---|---|
| Product Number | HG-S1032 |
| Part Number | HG-S1032 |
| Regulatory compliance | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Applicable controller | HG-SC101(-P), HG-SC111(-P), HG-SC112(-P), HG-SC113 |
| Position detection method | Optical absolute linear encoder method |
| Measuring range | 32mm 1.260 in |
| Stroke | 32.5 mm 1.280 in or more |
| Measuring force : Downward mount | 2.97 N or less 1.90 N (Note): Typical value near center of measurement. |
| Measuring force : Upward mount | 2.09 N or less 1.19 N (Note): Typical value near center of measurement. |
| Measuring force : Side mount | 2.53 N or less 1.50 N (Note 1): Typical value near center of measurement. |
| Resolution | 0.5 μm 0.020 mil |
| Sampling rate | 1ms |
| Indication accuracy(P-P) | Full range: 3.0 μm 0.118 mil or less Narrow range: 2.0 μm 0.079 mil or less (any 60 μm 2.362 mil) |
| Tip deviation amount | 40 μm 1.575 mil (typical)(Note):Linearity F.S. = 16 mA, and is linearity with respect to digitally measured values. |
| Hot swap function | Incorporated |
| Operation indicator | 2-color LED (Orange / Green) |
| Pollution degree | 2 |
| Operating altitude | 2,000 m 6561.68 ft or less (Note) : Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m. |
| Environmental resistance : Protection | IP67 (IEC) (Note): Excludes damage and deterioration to rubber bellows due to external causes. |
| Environmental resistance : Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No condensation or icing), Storage: -20 to +60 ℃ -4 to +140 ℉ |
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Insulation resistance | 100 MΩ or more at 250 V DC |
| Environmental resistance : Vibration resistance | 10 to 150 Hz frequency, 3 mm 0.118 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each |
| Environmental resistance : Shock resistance | 1,960 m/s2acceleration in X, Y and Z directions three times each |
| Grounding method | Capacitor grounding |
| Material | Body: Aluminum, Holder: Stainless steel, Spindle: Free-cutting steel, Probe※: Brass (body) / Ceramic (ball), Rubber bellows: NBR (black) ※The probes (optional) are also available. |
| Weight | Net weight: 150 g approx. |
| Accessory | Sensor head fastening wrench 1 pc., Mounting nut 1 pc. |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were as follows: standard type measurement probe (HG-SS10C), ambient temperature +20 ℃ +68 ℉, and a clean atmosphere where dust and liquids such as water and oil do not come in contact with the equipment. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Data sheet HG-S1032 HGS1032 PANASONIC Contact-Type Digital Displacement Sensor HG-S | 5 Mbytes |
|
| Download general catalog |
|
