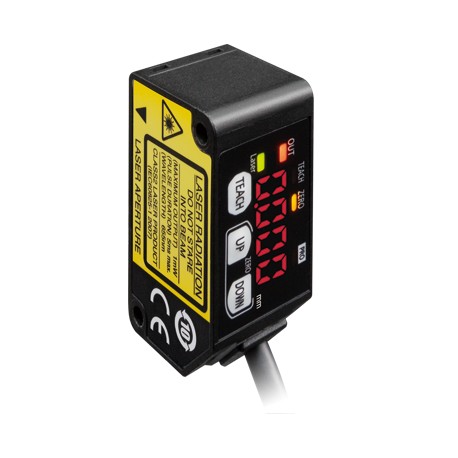

PANASONIC UHGC1200P HG-C1200-P - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

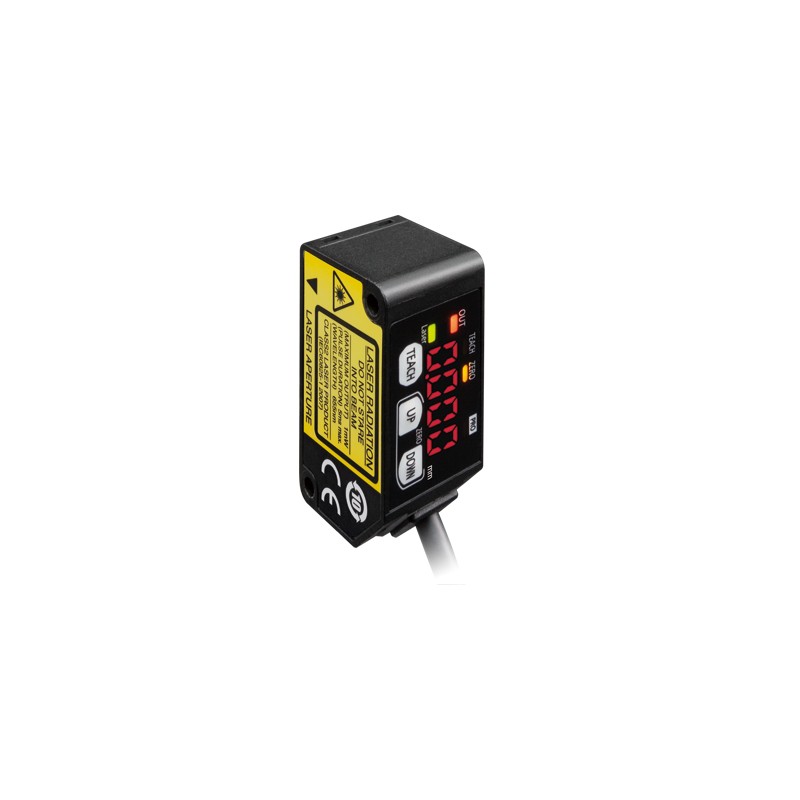

UHGC1200P HG-C1200-P PANASONIC Compact Laser Displacement Sensor, 200mm+/-80mm, PNP, 0-5V/4-20mA, cable 2m

Reference: UHGC1200P

Code: HG-C1200-P

Manufacturer: PANASONIC

Description:

Compact Laser Displacement Sensor, 200mm+/-80mm, PNP, 0-5V/4-20mA, cable 2m
Micro Displacement Laser Sensor, measurement range 200mm. ± 80mm., repeatability 200μm., beam diameter approx. 300μm., PNP digital output, analog output 0-5V / 4-20mA, cable 2m
HG-C1200-P_CMOS type Micro Laser Distance Sensor_CMOS type Micro Laser Distance Sensor HG-C_Measurement center 200mm 7.874 in type

Categories:

  • PANASONIC > Laser Sensors - Spot Type - AN - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 393,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product NumberHG-C1200-P
Part NumberHG-C1200-P
ProductCMOS type Micro Laser Distance Sensor
DetailsMeasurement center 200mm 7.874 in type
Product nameCMOS type Micro Laser Distance Sensor HG-C

ItemSpecifications
Product NumberHG-C1200-P
Part NumberHG-C1200-P
Applicable regulations and certificationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification
(Note) : The UL/c-UL certified products have been shipped since April, 2017.
Measurement center distance200 mm 7.874 in
Measuring range±80 mm 3.150 in
Repeatability200 μm 7.874 mil
Linearity±0.2%F.S.
Temprerature characteristics0.03% F.S./℃
Light sourceRed semiconductor laser Class 2 [IEC / EN/ JIS / GB / KS / FDA (Note) ]
Max. output: 1 mW
emission peak wavelength: 655 nm 0.026 mil
(Note) This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
Beam diameterø300 μm 11.8111 mil approx.
(Note) This is the size in the measurement center distance. These values were defined by using 1/e2 (13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.
Supply voltage12 to 24 V DC ±10 %, Ripple P-P 10 % or less
Current consumption40 mA or less (at 24V DC supply voltage)
65 mA or less (at 12V DC supply voltage)
Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 ： 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage)
Control outputPNP open-collector transistor
- Maximum source current: 50 mA
- Applied voltage: 30 V DC or less (Between control output to +V)
- Residual voltage: 1.5 V or less (At 50 mA source current)
- Leakage current: 0.1 mA or less
Control output:Output operationEither Light-ON or Dark-ON
Control output:Short-circuit protectionIncorporated (Auto reset type)
Analogue output : Analog voltage output• Output range: 0 to 5 V (at alarm: +5.2 V)
• Output impedance: 100Ω
Analogue output : Analog current output• Output range: 4 to 20mA (at alarm: 0mA)
• Output impedance: 300Ω or less
Note : Analog current output has been added from shipment in August 2016.
Response timeSwitchable between 1.5 ms / 5 ms / 10 ms
External inputPNP non-contact input
- Input conditions
Invalid: 0 to +0.6 V DC or Open
Valid: +4 to +V DC
- Input impedance: 10 kΩ approx.
Pollution degree2
Operating altitude2,000 m 6561.680 ft or less
ProtectionIP67 (IEC)
Ambient temperature-10 to +45 ℃ -14 to 113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminanceIncandescent light: 3,000 ℓx or less at the light-receiving face
Vibration resistance10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Cable5-core composite cable, 2 m 6.5617 ft long
Cable extensionExtension up to total 10 m 393.701 ft is possible with 0.3 mm2, or more, cable.
MaterialEnclosure: Aluminum die-cast
Front cover: Acrylic
WeightNet weight: 35 g approx. (without cable), 85 g approx. (including cable)
