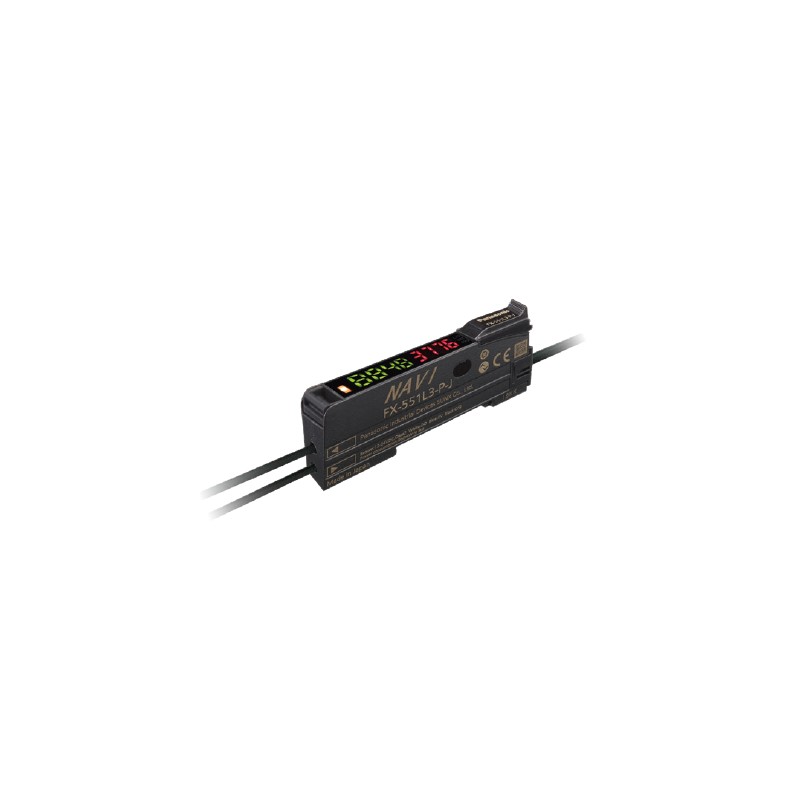

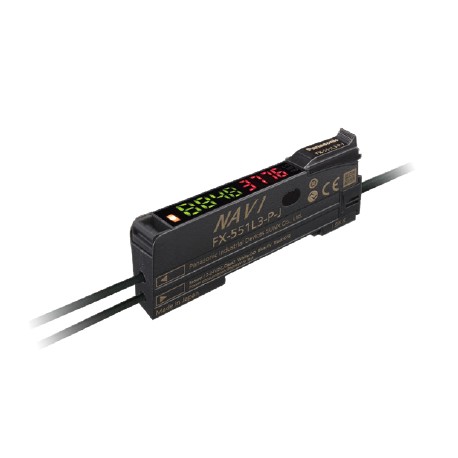

UFX551L3PC2 FX-551L3-P-C2 PANASONIC Fiber amplifier, IO Link, double display, cable type, 2m
UFX551L3PC2
FX-551L3-P-C2
PANASONIC
Fiber amplifier, IO Link, double display, cable type, 2m
FX-550L Series. Amplifier F. Optical, 1 digital output PNP, dual display, IO Link connection, 2m cable
FX-551L3-P-C2_Digital Fiber Sensor FX-550L
Fiber - PANASONIC > FX500 high performance digital fiber sensor - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FX-551L3-P-C2 |
| Part Number | FX-551L3-P-C2 |
| Product name | Digital Fiber Sensor FX-550L |
| Item | Specifications |
|---|---|
| Product Number | FX-551L3-P-C2 |
| Part Number | FX-551L3-P-C2 |
| Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Supply voltage | 12 to 24 V DC +10-15% Ripple P-P 10 % or less |
| Power consumption | Normal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage) ECO mode: 720 mW or less (current consumption 30 mA or less at 24 V supply voltage) |
| Communication output (C/Q):IO-Link communication | IO-Link Specification V1.1 (Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Communication output (C/Q):Baud rate | COM3 (230.4 kbps) (Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Communication output (C/Q):Process data | 4 byte (Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Communication output (C/Q):Minimum cycle time | 1.0 ms (Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Control output (DO) | PNP open-collector transistor • Maximum source current: 50 mA • Applied voltage: 30 V DC or less (between output and +V) • Residual voltage: 2 V or less (Note) (at maximum source current) (Note:)In case of using the cable (cable length 2 m 6.562 ft). |
| Control output (DO):Output operation | Switchable either Light-ON or Dark-ON by L/D mode |
| Control output (DO):Short-circuit protection | Incorporated |
| Response time | STD: 250 μs or less, LONG: 2 ms or less, U-LG: 4 ms or less, HYPR: 24 ms or less, selectable |
| Sensitivity setting | 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment |
| Incident light sensitivity setting | Incorporated, 4 steps |
| Incident light intensity display range | STD: 0 to 4,000, LONG: 0 to 8,000, U-LG / HYPR: 0 to 9,999 |
| Timer function | Incorporated with variable OFF-delay / ON-delay / One-shot, switchable either effective or ineffective |
| Timer function:Timer period | 0.1 to 999.9 ms approx., in units of 0.1 ms approx. |
| Different frequency interference prevention function | Incorporated (up to 4 units). Note that the response time varies depending on the setting. F-1: 0.8 ms or less, F-2: 0.9 ms or less, F-3: 1.0 ms or less, F-4: 1.7 ms or less (Note:)This function increases the hysteresis. Check the sensing condition when using the function. |
| Protection | IP40 (IEC) |
| Ambient temperature | -10 to +55℃ +14 to +131℉ (If 4 to 7 units are mounted in cascade: -10 to +50℃ +14 to +122℉ or if 8 to 16 units are mounted in cascade: -10 to +45℃ +14 to +113℉) (No dew condensation or icing allowed), Storage: -20 to +70℃ -4 to +158℉ |
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 G max.) in X, Y and Z directions for two hours each |
| Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each |
| Emitting element (modulated) | Red LED (Peak emission wavelength: 660 nm 0.026 mil) |
| Material | Enclosure, Case cover: Polycarbonate, Switch: Polyacetal |
| Cable | 0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 20 m 65.617 ft is possible with 0.3 mm2, or more, cable. (Condition of CE compliance: less tan 20 m 65.617 ft) (however, supply voltage 12 V DC or more) |
| Weight | Net weight: 55 g approx., Gross weight: 80 g approx. |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23℃ +73.4℉. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| UFX551L3PC2 FX-551L3-P-C2 hg-c1030l3-p_e_cata1.pdf | 7 Mbytes |
|
