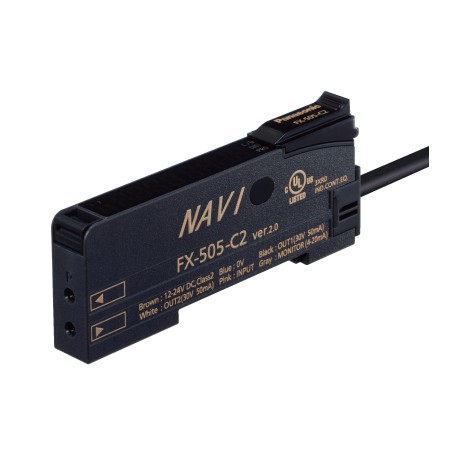

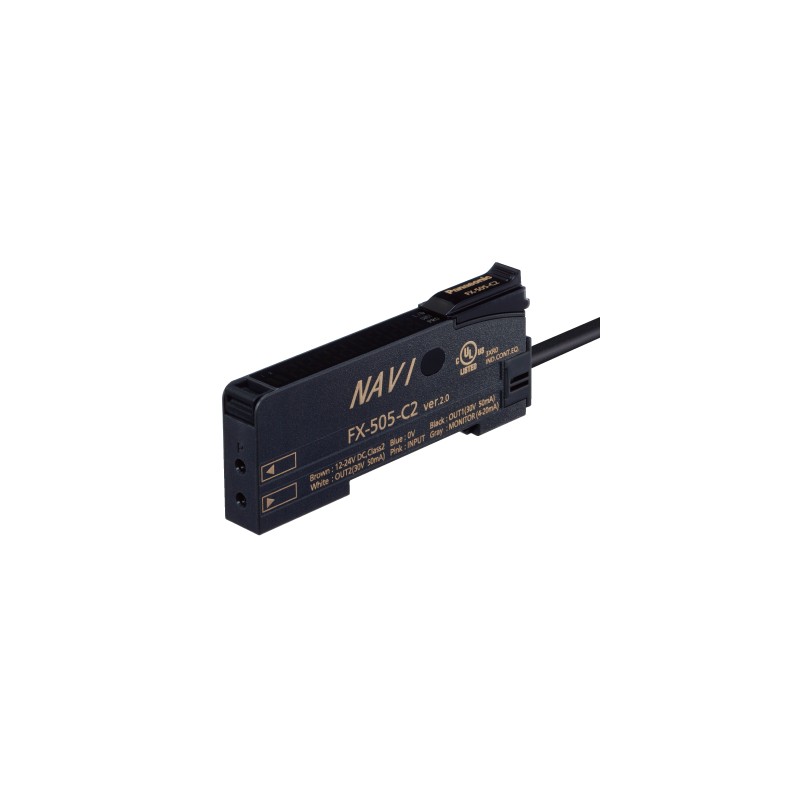

Fiber amplifier, NPN, analogue output, double display
Fiber - PANASONIC > FX500 high performance digital fiber sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | FX-505-C2 |
Part Number | FX-505-C2 |
Product | Digital Fiber Sensor |
Details | Cable type |
Product name | Digital Fiber Sensor FX-500 Ver.2 |
Item | Specifications |
---|---|
Product Number | FX-505-C2 |
Part Number | FX-505-C2 |
CE marking directive compliance | EMC Directive, RoHS Directive |
Supply voltage | 12 to 24 V DC+10-15 % Ripple P-P 10 % or less |
Power consumption | Normal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage, excluding analog output) ECO mode: 680 mW or less (current consumption 28 mA or less at 24 V supply voltage, excluding analog output) |
Output 1, Output 2 | NPN open-collector transistor - Maximum sink current: 50 mA (Note 1) - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (Note 2) (at maximum sink current) (Note 1) 50 mA max. if 5 or more standard types are connected together. (Note 2) 50 mA max. if 5 or more standard types are connected together. (25 mA in case of 2-output type and cable type) |
Output 1, Output 2:Output points | 2 points |
Output 1, Output 2:Output operation | Switchable either Light-ON or Dark-ON by L/D mode |
Output 1, Output 2:Short-circuit protection | Incorporated |
Response time | H-SP: 25 micro s or less FAST: 60 micro s or less STD: 250 micro s or less LONG: 2 ms or less U-LG: 4 ms or less HYPR: 24 ms or less, selectable |
Analog output | Output current: 4 to 20 mA approx. [H-SP, FAST STD: At 0 to 4,000 digits, LONG: At 0 to 8,000 digits (Note) ] Response time: 2 ms or less Zero point: Within 4 mA plus or minus 1 % F.S. Span: Within 16 mA plus or minus 5 % F.S. Linearity: Within plus or minus 3 % F.S. Load resistance: 0 to 250 Ohm (Note) If display adjustment was conducted, it is not in this range. |
External input | NPN non-contact input - Signal condition High: +8 V to +V DC or Open Low: 0 to +1.2 V DC(at 0.5 mA source current) - Input impedance: 10 kOhm approx. |
External input(switchable with Output 2) | - |
Possible external input function | Emission halt / Teaching (Full-auto, Limit, 2-point) / Logic operation setting / Copy lock / Display adjustment / Data bank load / Data bank save, selectable |
Sensitivity setting | 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment |
Incident light intensity display range | H-SP / FAST / STD: 0 to 4,000 LONG: 0 to 8,000 U-LG / HYPR: 0 to 9,999 |
Timer function | Incorporated with variable OFF-delay / ON-delay /One-shot / ON-delay - OFF-delay / ON-delay - One-shot timer, switchable either effective or ineffective Incorporated with variable OFF-delay / ON-delay /One-shot timer, switchable either effective or ineffective |
Timer function:Timer period | Timer range ''ms'': 0.5 ms approx., 1 to 9,999 ms approx., 1 ms approx. Timer range ''sec.'': 0.5 s approx., 1 to 32 s approx., 1 s approx. Timer range ''1/10 ms'': 0.05 ms approx., 0.1 to 999.9 ms approx., 0.1 ms approx. each output is set individually |
Emission amount setting function | Incorporated, 3 levels (each level 25 to 100 %) + Auto setting [1 level (25 to 100 %) when using H-SP mode] |
Interference prevention function | Incorporated (Note) , selectable either automatic interference prevention or different frequency (Note) Number of sensor heads which is possible to be mounted closely in auto interference prevention function depends on response time as shown in table below.Number of sensor heads which is possible to be mounted closely in different frequency Interference prevention function is up to 3 units. - Number of sensor heads mountable closely (Unit: set) Response time: IP-1 H-SP: 0 FAST: 2 STD: 4 LONG: 8 U-LG: 8 HYPR: 12 |
Various settings | Hysteresis setting / Shift amount setting / Emission power setting / Display turning setting / ECO setting / Data bank loading saving setting / Copying setting / Code setting / Reset setting / Logical calculation setting / Threshold value tracking setting, etc. |
Protection | IP40 (IEC) |
Ambient temperature | -10 to +55 ℉+14 to +131 ℉[If 4 to 7 units are mounted in cascade: -10 to +50 ℉+14 to +122 ℉or if 8 to 12 units are mounted in cascade: -10 to +45 ℉+14 to +113 ℉] (No dew condensation or icing allowed), Storage: -20 to +70 ℉-4 to +158 ℉ |
Emitting element (modulated) | Red LED (Peak emission wavelength: 643 nm0.025 mil) |
Material | Enclosure, Case cover: Polycarbonate Switch: Polyacetal |
Cable | 0.2 mm26-core cabtyre cable, 2 m6.562 ftlong |
Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. (however, supply voltage 12 V DC or more) |
Weight | Net weight: 60 g approx. Gross weight: 100 g approx. |
Accessory | FX-MB1 (Amplifier protection seal): 1 set |
