UFTR60Y FT-R60Y PANASONIC Fiber (thru-beam, elbow-type 90°, M6, 2m, oil resistant)
UFTR60Y
FT-R60Y
PANASONIC
Fiber (thru-beam, elbow-type 90°, M6, 2m, oil resistant)
Barrier optical fiber, flexible (R4), resists oil, rectangular head projection at 90°, barrier, M6, range 3.6 m, temperat range. -55/+80ºC, beam diameter 3.5 mm, fiber length 2 m, IP68G
FT-R60Y_Thru-beam type Fiber_Square Head Fiber_Square Head type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-R60Y |
| Part Number | FT-R60Y |
| Product | Thru-beam type Fiber |
| Details | Square Head type Fiber |
| Product name | Square Head Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-R60Y |
| Part Number | FT-R60Y |
| Sensing mode | Thru-beam type |
| Fiber type | Square head type |
| Fiber head dia. | M6 |

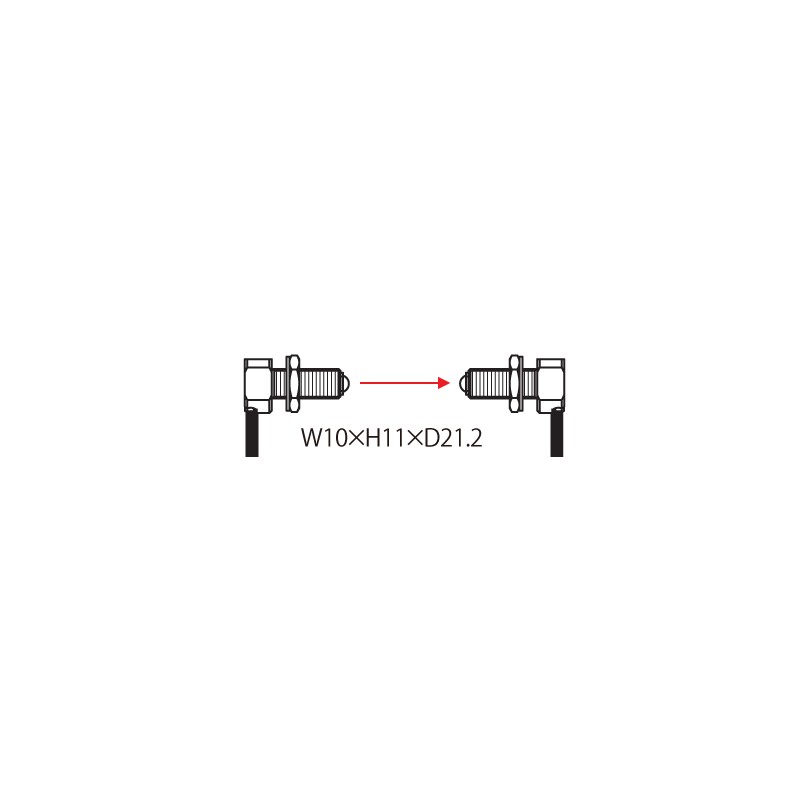

| Fiber head length | W10 x H11 x D21.2 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 3.5 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Semi-custom | Not available |
| Mounting lens | Not available |
| Application | Oil-resistant |
| Environmental resistance : Protection | IP68G |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 2,100 mm 82.677 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（FAST） | 1,260 mm 49.606 in (FX-500 series) |
| Sensing range（H-SP） | 400 mm 15.748 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Download general catalog |
|
