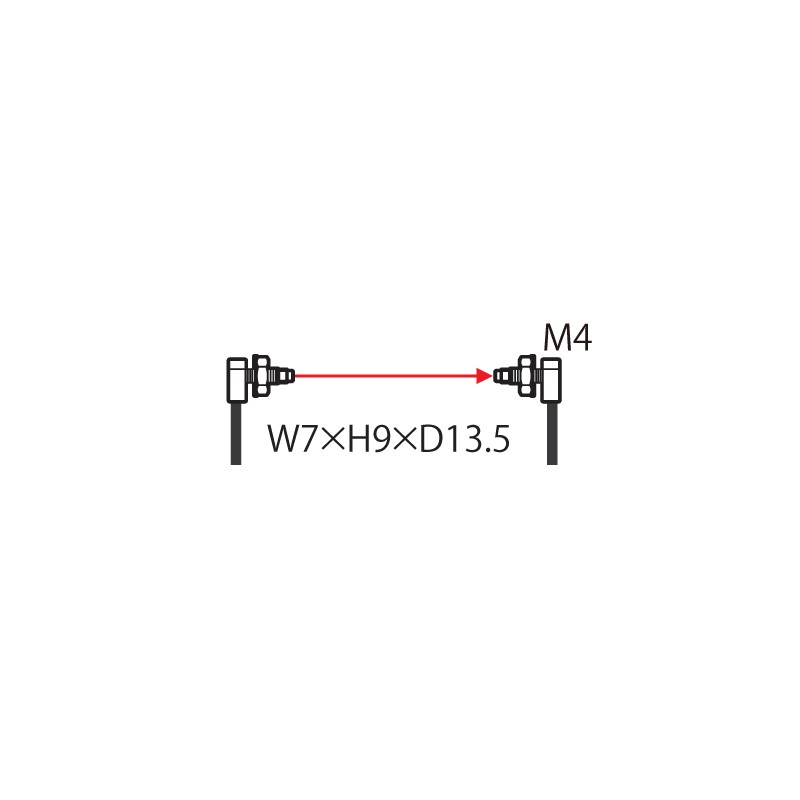

UFTR43 FT-R43 PANASONIC Fiber, Thru-beam type, M4, beam diam. 1mm, 2m, IP67
UFTR43
FT-R43
PANASONIC
Fiber, Thru-beam type, M4, beam diam. 1mm, 2m, IP67
Fiber Optic Flexible Rectangular Head 90° Projection, Barrier, M4, Range 3m, Beam Diameter 1mm, Fiber Length 2m, IP67
FT-R43_Thru-beam type Fiber_Square Head Fiber_Square Head type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Often bought together
▲Best sellers
▲More info
▲| Product Number | FT-R43 |
| Part Number | FT-R43 |
| Product | Thru-beam type Fiber |
| Details | Square Head type Fiber |
| Product name | Square Head Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-R43 |
| Part Number | FT-R43 |
| Sensing mode | Thru-beam type |
| Fiber type | Square head type |
| Fiber head dia. | M4 |
| Fiber head length | W7 x H9 x D13.5 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 1 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Semi-custom | Available |
| Mounting lens | Available |
| Applicable lens | FX-LE1,FX-LE2,FX-SV1 |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 720 mm 28.346 in (FX-500 series) |
| Sensing range（HYPR） | 3,000 mm 118.110 in (FX-500 series) |
| Sensing range（U-LG） | 1,600 mm 62.992 in (FX-500 series) |
| Sensing range（LONG） | 1,100 mm 43.307 in (FX-500 series) |
| Sensing range（FAST） | 430 mm 16.929 in (FX-500 series) |
| Sensing range（H-SP） | 130 mm 5.118 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
