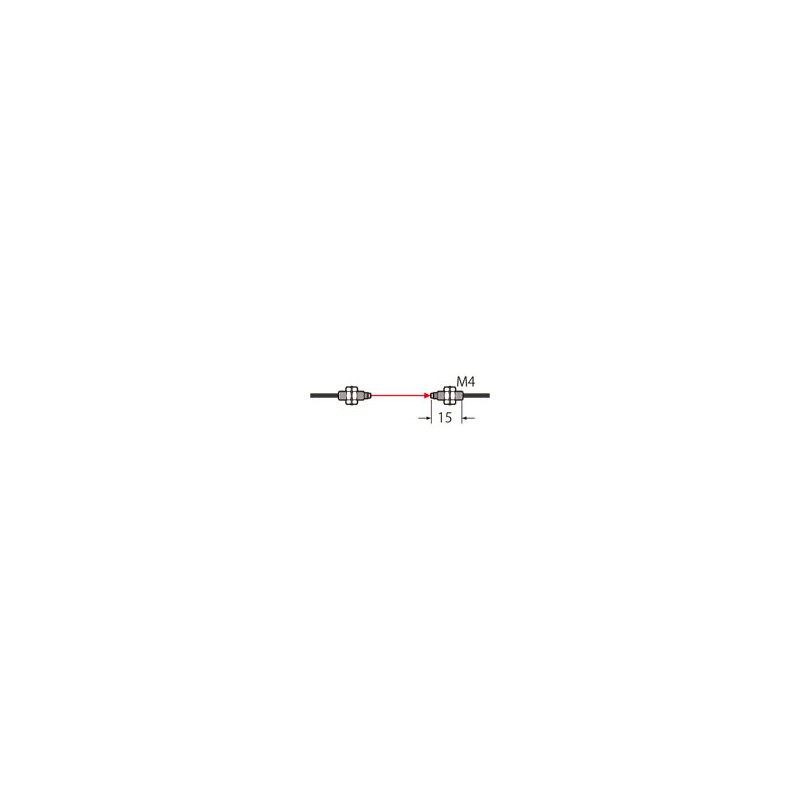

UFT42W FT-42W PANASONIC Fiber (thru-beam, bending radius R1, M4, 2m, IP67)
UFT42W
FT-42W
FT-42W
PANASONIC
Fiber (thru-beam, bending radius R1, M4, 2m, IP67)
Fiber Optic Barrier, M4, Lens Mountable; Range of Detection. 3300mm (FX500, HYPER mode); Long. 2m (cuttable), curvat radius. 1mm (R1), IP67, temp. range -40/+60ºC
FT-42W_Thru-beam type Fiber_Threaded Type Fiber_Threaded Type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-42W |
| Part Number | FT-42W |
| Product | Thru-beam type Fiber |
| Details | Threaded Type Fiber |
| Product name | Threaded Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-42W |
| Part Number | FT-42W |
| Sensing mode | Thru-beam type |
| Fiber type | Threaded type |
| Fiber head dia. | M4 |
| Fiber head length | 15 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 1 mm |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Mounting lens | Available |
| Applicable lens | FX-LE1,FX-LE2,FX-SV1 |
| Mounting protective tube | FTP-500,FTP-1000,FTP-1500 |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 800 mm 31.496 in (FX-500 series) |
| Sensing range（HYPR） | 3,300 mm 129.921 in (FX-500 series) |
| Sensing range（U-LG） | 1,900 mm 74.803 in (FX-500 series) |
| Sensing range（LONG） | 1,400 mm 55.118 in (FX-500 series) |
| Sensing range（FAST） | 490 mm 19.291 in (FX-500 series) |
| Sensing range（H-SP） | 160 mm 6.299 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FT42W - FT-42W | FT-42W | 4 Mbytes |
|
