UFDR41 FD-R41 PANASONIC Fiber, reflective type, M4, beam diam. 0.75 mm, 2m, IP67
UFDR41
FD-R41
PANASONIC
Fiber, reflective type, M4, beam diam. 0.75 mm, 2m, IP67
Reflex fiber optics. direct, rectangular head, 90° projection, M4, "Tough" model; Detection range. 710 mm (FX500), curved radius. 2mm (R2), long. 2 m, cuttable, temp. range -55º/+80ºC, IP67
FD-R41_Reflective type Fiber_Square Head Fiber_Square Head type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-R41 |
| Part Number | FD-R41 |
| Product | Reflective type Fiber |
| Details | Square Head type Fiber |
| Product name | Square Head Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-R41 |
| Part Number | FD-R41 |
| Sensing mode | Reflective type |
| Fiber type | Square head type |
| Fiber head dia. | M4 |

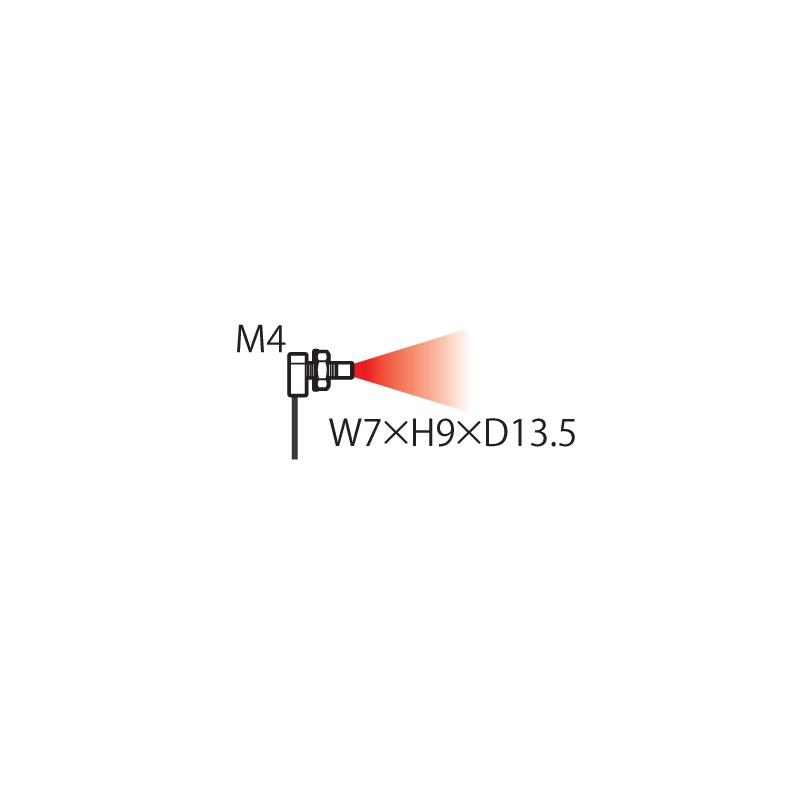

| Fiber head length | W7 x H9 x D13.5 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 0.75 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Semi-custom | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 210 mm 8.268 in (FX-500 series) |
| Sensing range（HYPR） | 710 mm 27.953 in (FX-500 series) |
| Sensing range（U-LG） | 430 mm 16.929 in (FX-500 series) |
| Sensing range（LONG） | 320 mm 12.598 in (FX-500 series) |
| Sensing range（FAST） | 100 mm 3.937 in (FX-500 series) |
| Sensing range（H-SP） | 34 mm 1.339 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
