FDH30L32 FD-H30-L32 PANASONIC Fiber, heat resistant 300°C, fixed length type
FDH30L32
FD-H30-L32
PANASONIC
Fiber, heat resistant 300°C, fixed length type
Fiber - PANASONIC > HEAT-RESISTANT type optical fibers - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | FD-H30-L32 |
| Part Number | FD-H30-L32 |
| Product | Convergent Reflective type Fiber |
| Details | Heat-resistant Fiber |
| Product name | Heat-resistant Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-H30-L32 |
| Part Number | FD-H30-L32 |
| Sensing mode | Convergent Reflective type |
| Fiber type | Glass substrate detection |

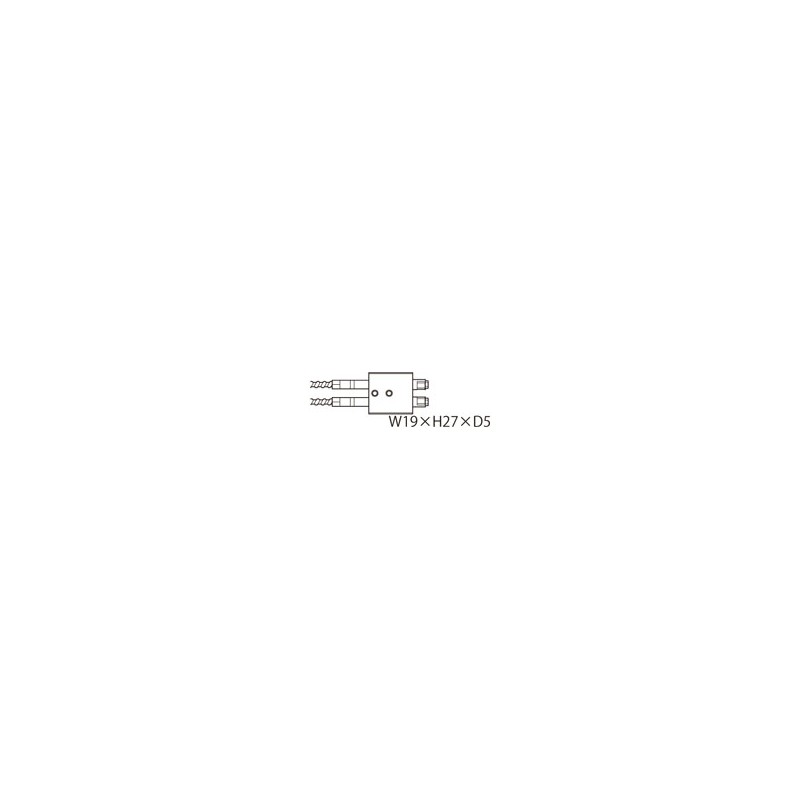

| Fiber head length | W19 x H27 x D5 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 2m |
| Allowable bending radius | R25 mm |
| Free-cut | Not available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | Heat-resistant |
| Environmental resistance : Ambient temperature MAX | 300 degrees |
| Environmental resistance : Ambient temperature MIN | -60 degrees |
| Sensing range（STD） | 17 mm 0.669 in (FX-500 series) |
| Sensing range（HYPR） | 40 mm 1.575 in (FX-500 series) |
| Sensing range（U-LG） | 30 mm 1.181 in (FX-500 series) |
| Sensing range（LONG） | 25 mm 0.984 in (FX-500 series) |
| Sensing range（FAST） | 12 mm 0.472 in (FX-500 series) |
| Sensing range（H-SP） | 1.5 to 6 mm 0.059 to 0.236 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: FDH30L32 - FDH30L32 | FD-H30-L32 | 4 Mbytes |
 |
| Download general catalog |
|
