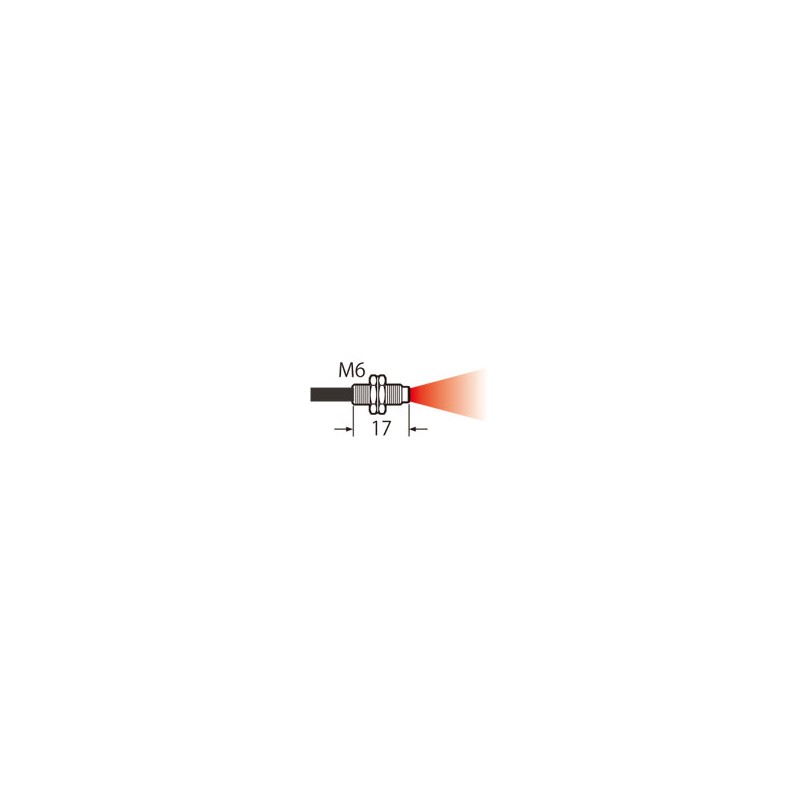

UFD62 FD-62 PANASONIC Fiber (reflective, bending radius R4, M6, 2m, IP67)
UFD62
FD-62
FD-62
PANASONIC
Fiber (reflective, bending radius R4, M6, 2m, IP67)
Reflex optical fiber. direct M6, radius curvat. 4mm (R4), detecc. up to 1500mm (with FX500, more with FX551), long.2m, cutable, IP67, temp.-55/+80ºC range
FD-62_Reflective type Fiber_Threaded Type Fiber_Threaded Type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-62 |
| Part Number | FD-62 |
| Product | Reflective type Fiber |
| Details | Threaded Type Fiber |
| Product name | Threaded Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-62 |
| Part Number | FD-62 |
| Sensing mode | Reflective type |
| Fiber type | Threaded type |
| Fiber head dia. | M6 |
| Fiber head length | 17 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | FDP-500,FDP-1000,FDP-1500 |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 520 mm 20.472 in (FX-500 series) |
| Sensing range（HYPR） | 1,500 mm 59.055 in (FX-500 series) |
| Sensing range（U-LG） | 1,000 mm 39.370 in (FX-500 series) |
| Sensing range（LONG） | 940 mm 37.008 in (FX-500 series) |
| Sensing range（FAST） | 340 mm 13.386 in (FX-500 series) |
| Sensing range（H-SP） | 110 mm 4.331 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FD62 - FD-62 | FD-62 | FD-62 | 4 Mbytes |
|
