View larger

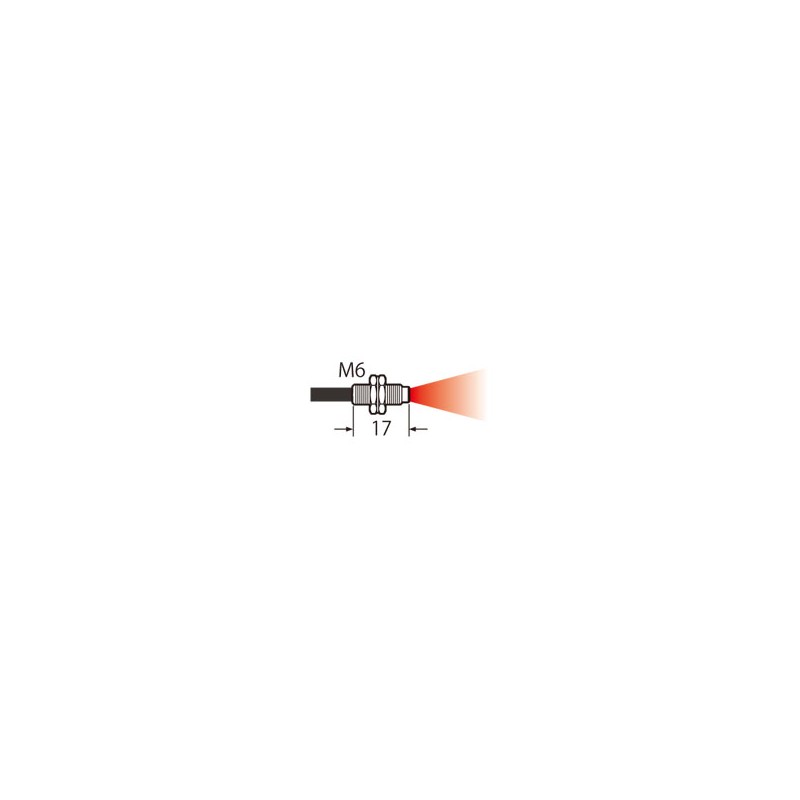

FD-61W PANASONIC Fiber (reflective, bending radius R1, M6, 2m, IP67)
FD-61W
PANASONIC
Fiber (reflective, bending radius R1, M6, 2m, IP67)
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | FD-61W |
| Part Number | FD-61W |
| Product | Reflective type Fiber |
| Details | Threaded Type Fiber |
| Product name | Threaded Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-61W |
| Part Number | FD-61W |
| Sensing mode | Reflective type |
| Fiber type | Threaded type |
| Fiber head dia. | M6 |
| Fiber head length | 17 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis accuracy : Beam axis position | - |
| Beam axis accuracy : Beam axis Inclination | - |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | FDP-500,FDP-1000,FDP-1500 |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 270 mm 10.630 in (FX-500 series) |
| Sensing range（HYPR） | 900 mm 35.433 in (FX-500 series) |
| Sensing range（U-LG） | 630 mm 24.803 in (FX-500 series) |
| Sensing range（LONG） | 430 mm 16.929 in (FX-500 series) |
| Sensing range（FAST） | 150 mm 5.906 in (FX-500 series) |
| Sensing range（H-SP） | 45 mm 1.772 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: FD61W - FD-61W | FD-61W | 4 Mbytes |
 |
| Download general catalog |
|
