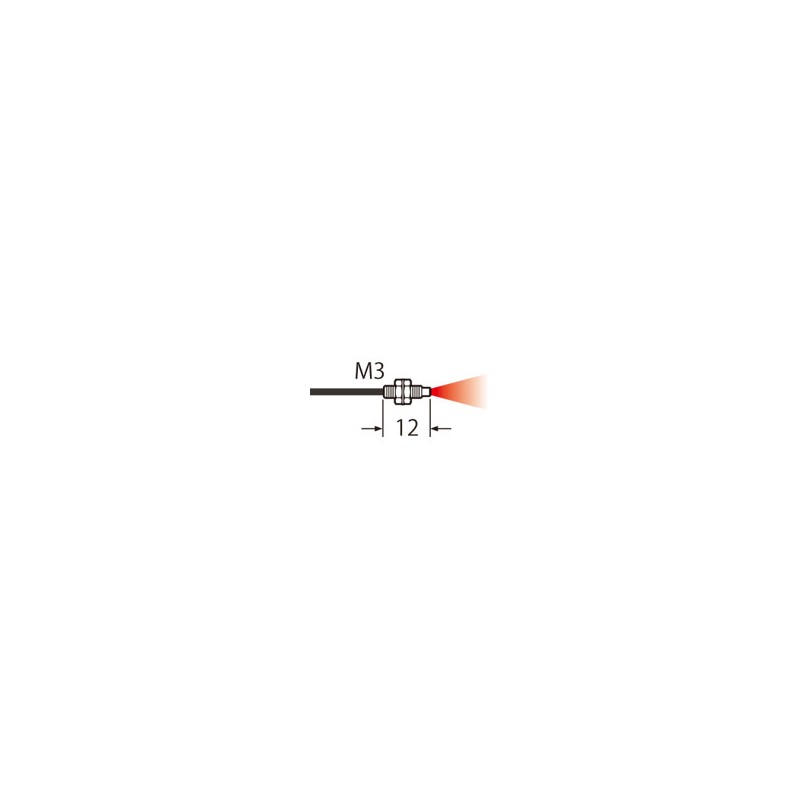

UFD31W FD-31W PANASONIC Fiber (reflective, bending radius R1, M3, 2m, IP67)
UFD31W
FD-31W
FD-31W
PANASONIC
Fiber (reflective, bending radius R1, M3, 2m, IP67)
Direct reflection optical fiber, M3, super flexible: bend radius 1mm (R1), length. 2m, cuttable, detection. up to 330mm (with FX500, more with FX551), IP67, temp. range -40/+60ºC
FD-31W_Reflective type Fiber_Threaded Type Fiber_Threaded Type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-31W |
| Part Number | FD-31W |
| Product | Reflective type Fiber |
| Details | Threaded Type Fiber |
| Product name | Threaded Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-31W |
| Part Number | FD-31W |
| Sensing mode | Reflective type |
| Fiber type | Threaded type |
| Fiber head dia. | M3 |
| Fiber head length | 12 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis accuracy : Beam axis position | - |
| Beam axis accuracy : Beam axis Inclination | - |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | FTP-N500,FTP-N1000,FTP-N1500 |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 80 mm 3.150 in (FX-500 series) |
| Sensing range（HYPR） | 330 mm 12.992 in (FX-500 series) |
| Sensing range（U-LG） | 180 mm 7.087 in (FX-500 series) |
| Sensing range（LONG） | 140 mm 5.512 in (FX-500 series) |
| Sensing range（FAST） | 45 mm 1.772 in (FX-500 series) |
| Sensing range（H-SP） | 12 mm 0.472 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Download general catalog |
|
