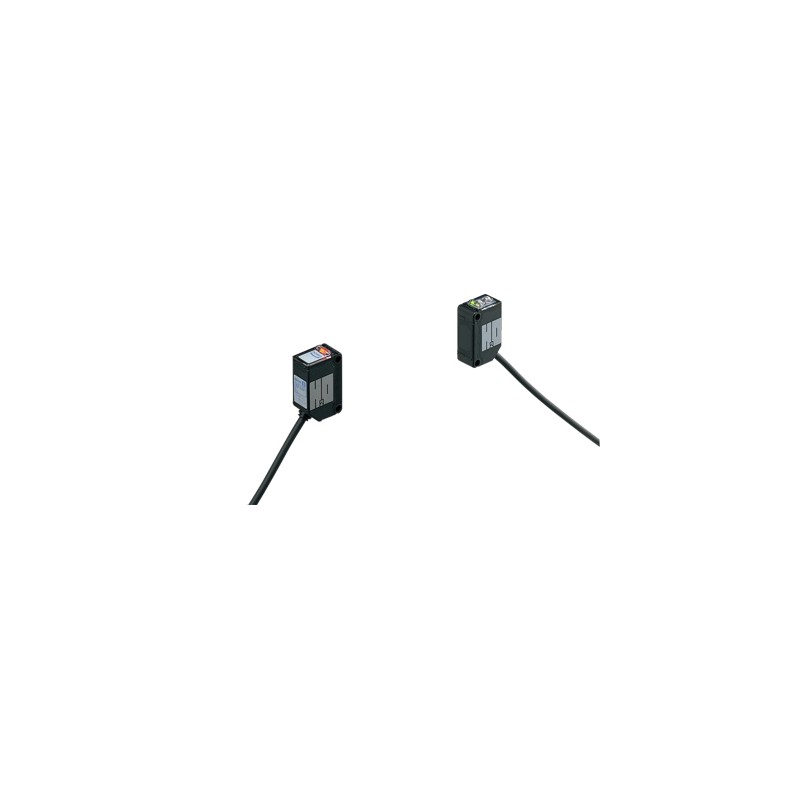

UEZ11PN EZ11PN EZ-11-PN PANASONIC Water detection sensor, 5 M, 12-24V DC, PNP, cable
UEZ11PN
EZ11PN
EZ-11-PN
PANASONIC
Water detection sensor, 5 M, 12-24V DC, PNP, cable
Liquid detection sensor, range 5 m, power 12-24 VDC, PNP output, 2m cable
Special Photoelectric Sensors - PANASONIC > EZ11 Liquid detection photoelectric sensors - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | EZ-11-PN |
| Part Number | EZ-11-PN |
| Product | Water Detection Sensor |
| Details | PNP output |
| Product name | Water Detection Sensor EZ-10 |
| Item | Specifications |
|---|---|
| Product Number | EZ-11-PN |
| Part Number | EZ-11-PN |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Sensing range | 5 m16.404 ft(without container or pipe) (Note):The sensing range shortens depending on the thickness, material, color, etc., of the container or pipe. |
| Sensing object | ø12 mmø0.472 mmor more liquid which contains water, or opaque object (Note):If there are two slit masks on both sides, the size of those slit masks represents the min. sensing object. |
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
| Current consumption | Emitter: 25 mA or less, Receiver: 25 mA or less |
| Output | PNP open-collector transistor ・Maximum source current: 100 mA ・Applied voltage: 30 V DC or less (between output and +V) ・Residual voltage: 1.5 V or less (at 100 mA source current) 0.4 V or less (at 16 mA source current) |
| Output:Utilization category | DC-12 or DC-13 |
| Output:Output operation | Switchable either Light-ON or Dark-ON |
| Output:Short-circuit protection | Switchable either Light-ON or Dark-ON |
| Response time | 12 ms or less |
| Sensitivity adjuster | Continuously variable adjuster |
| Protection | IP67 (IEC) |
| Ambient temperature | 0 to +55 ℃ +32 to +131℉ (No dew condensation allowed), Storage: -30 to +70 ℃-22 to +158℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element | Infrared LED (modulated) |
| Material | Polycarbonate |
| Weight | Emitter: 45 g approx., Receiver: 50 g approx. |
| Accessory | Adjusting screwdriver: 1 pc. |
| Dimensions | W12 x H31 x D20 mmW0.472 x H1.221 x D0.787 in |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: EZ11PN - EZ11PN | EZ-11-PN | 451 Kbytes |
|
