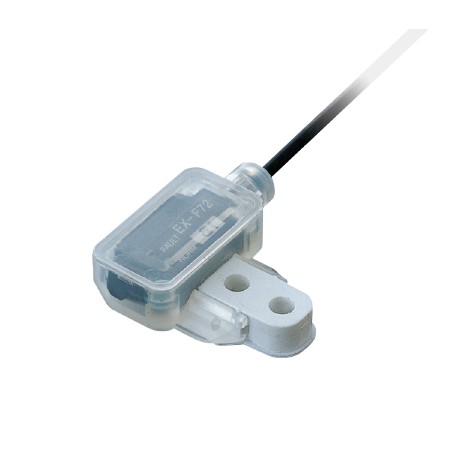

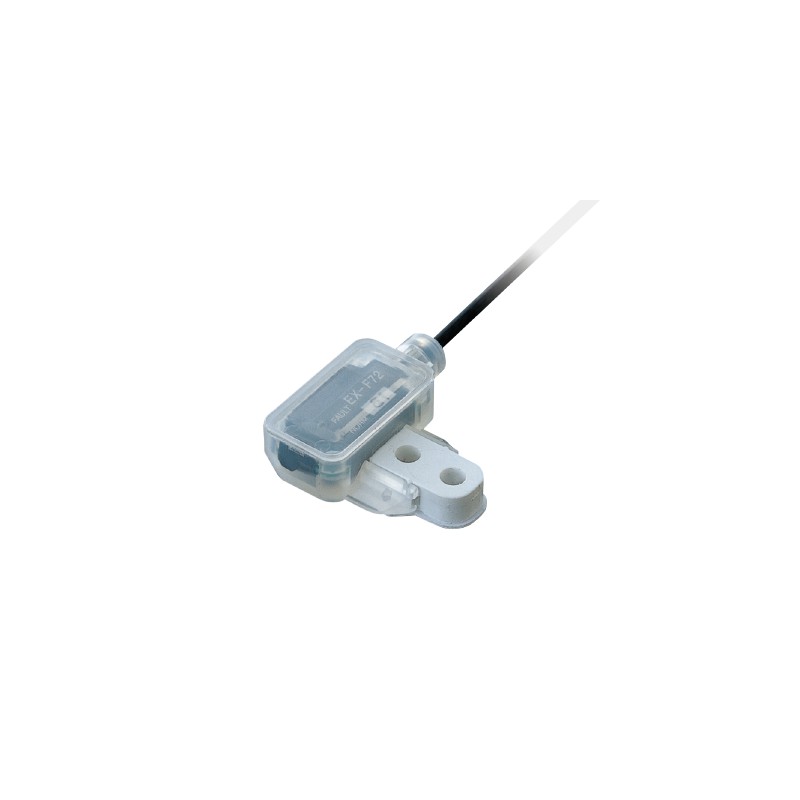

EX-F72 PANASONIC Leak sensor with built-in amplifier, NPN output, 2 m cable, SUS
EX-F72
PANASONIC
Leak sensor with built-in amplifier, NPN output, 2 m cable, SUS
EX-F72_Leak Detection Sensor_Leak Detection Sensor EX-F70/EX-F60_General purpose
Sensor Accessories - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | EX-F72 |
| Part Number | EX-F72 |
| Product | Leak Detection Sensor |
| Details | General purpose |
| Product name | Leak Detection Sensor EX-F70/EX-F60 |
| Item | Specifications |
|---|---|
| Product Number | EX-F72 |
| Part Number | EX-F72 |
| Sensing object | Water, Fluorinert™ Note:Highly viscous liquid may not be detected stably. Note:Fluorinert is the world wide trademark of 3M. |
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
| Current consumption | 10 mA or less(PNP output type: 15 mA or less) |
| Output | NPN open-collector transistor - Maximum sink current: 50 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.0 V or less (at 50 mA sink current), 0.4 V or less (at 16 mA sink current) |
| Output:Output operation | In normal state: ON, When leak detected or the sensor is mounted improperly: OFF |
| Output:Short-circuit protection | Incorporated |
| Response time | 50 ms or less |
| FAULT indicator | Red LED (lights up when the leak liquid is detected, or the sensor is mounted improperly) |
| NORMAL indicator | Green LED (lights up when the sensor is mounted properly) |
| Protection | IP67 (IEC) |
| Ambient temperature | -10 to +60 ℃ +14 to +140 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℃ - 4 to +158 ℉ Note : Liquid being detected should also be kept within the rated ambient temperature range. |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 1,000 ℓx or less at the light-receiving face |
| Emitting element | Infrared LED (non-modulated) |
| Material | Enclosure: Polypropylene |
| Cable | 0.1 mm2 3-core PVC cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 50 m 164.042 ft |
