EX29BPN
EX-29B-PN
PANASONIC
1

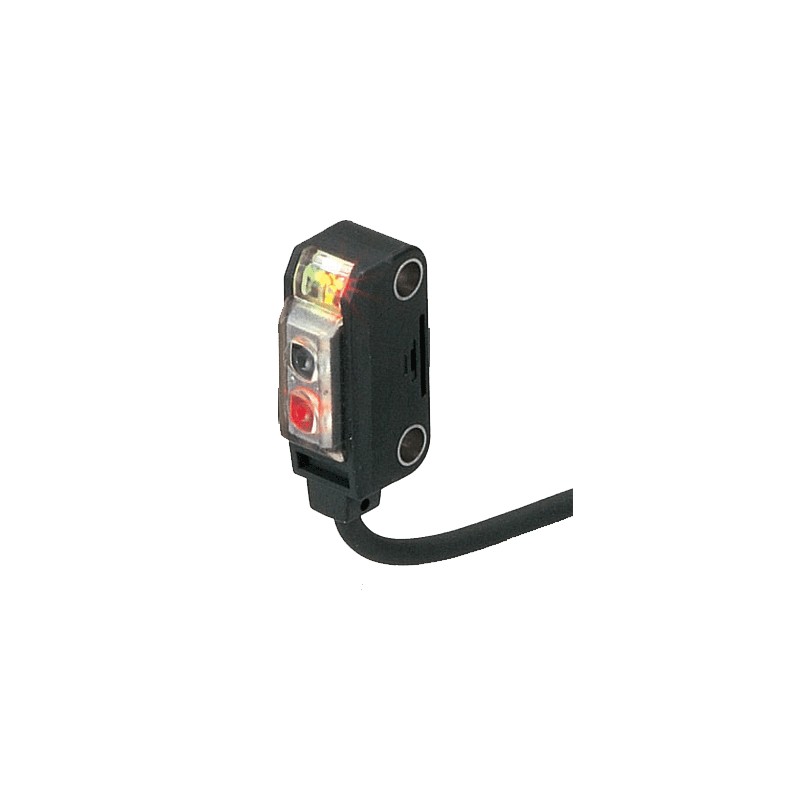

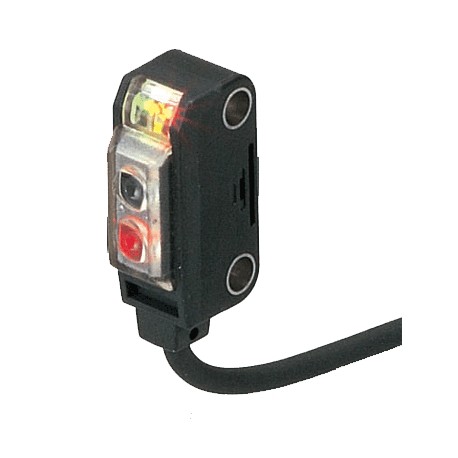

UZB6425, retroreflective type, 200mm, Dark-ON, PNP, cable 2m
Miniature Photoelectric Sensors - PANASONIC > EX20 High performance ultra-slim type photoelectric sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | EX-29B-PN |
Part Number | EX-29B-PN |
Product | Ultra-compact Photoelectric Sensor |
Details | Retroreflective[Side sensing] |
Product name | Ultra-compact Photoelectric Sensor EX-20 Ver.2 |
Item | Specifications |
---|---|
Product Number | EX-29B-PN |
Part Number | EX-29B-PN |
CE marking directive compliance | EMC Directive, RoHS Directive |
Sensing range | 30 to 200 mm 1.181 to 7.874 in (Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-200 reflector. Further, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 30 mm 1.181 in away. However, if the reflector is set 100 mm 3.937 in or less away, the sensing object should be opaque. |
Sensing object | dia. 15 mm dia. 0.591 in or more opaque or translucent object (Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-200 reflector. Further, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 30 mm 1.181 in away. However, if the reflector is set 100 mm 3.937 in or less away, the sensing object should be opaque. (Note) Make sure to confirm detection with an actual sensor before use. |
Hysteresis | - |
Repeatability(perpendicular to sensing axis) | 0.5 mm 0.020 in or less |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Current consumption | 13 mA or less |
Output | PNP open-collector transistor - Maximum source current: 50 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
Output:Utilization category | DC-12 or DC-13 |
Output:Short-circuit protection | Incorporated |
Response time | 0.5 ms or less |
Operation indicator | Orange LED (lights up when the output is ON) |
Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
Sensitivity adjuster | Continuously variable adjuster |
Operation mode switch | - |
Protection | IP67 (IEC) |
Ambient temperature | -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
Emitting element | Red LED (modulated) |
Emitting element:Peak emission wavelength | 680 nm 0.027 mil |
Material | Enclosure: Polyethylene terephthalate Lens: Polyalylate |
Cable | 0.1 mm2 3-core cabtyre cable, 2 m 6.562 ft long |
Cable extension | Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable. |
Weight | Net weight: 20 g approx Gross weight: 45 g approx |
Accessory | RF-200 (Reflector): 1 pc Adjusting screwdriver: 1 pc |
Title: | Size: | Type: |
---|---|---|
Datasheet 1: EX29BPN - EX29BPN | EX-29B-PN | 808 Kbytes | |
Download general catalog |
