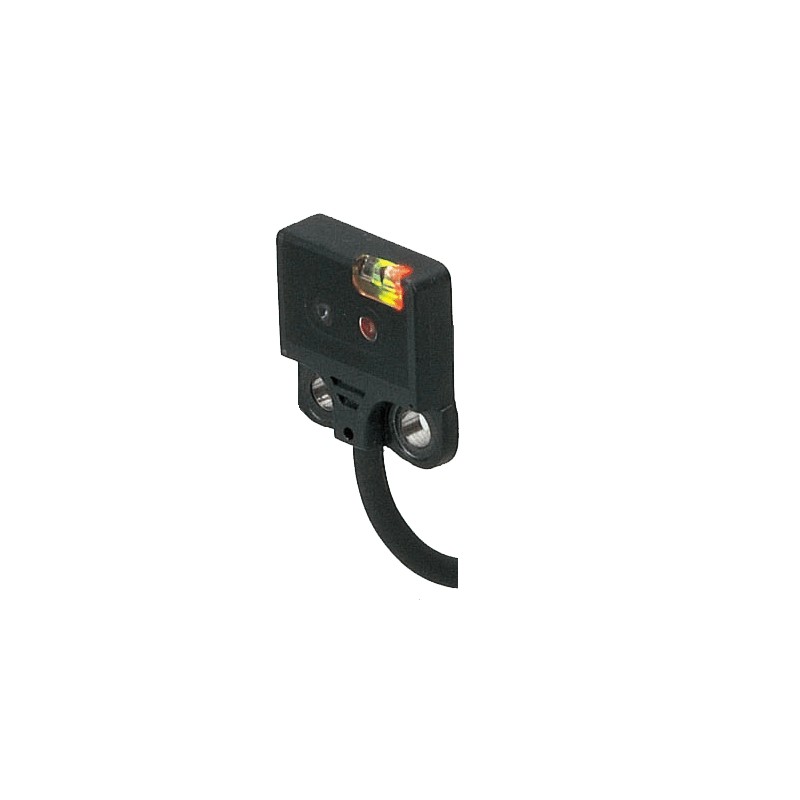

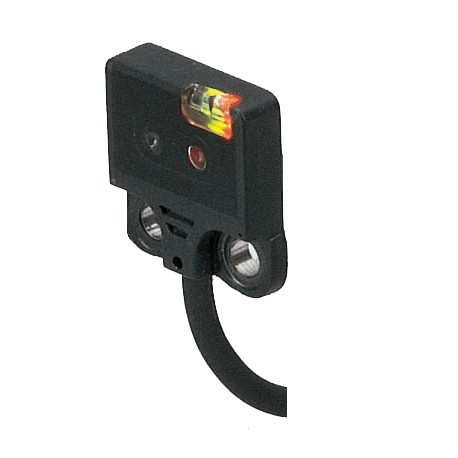

EX24BPN EX-24B-PN PANASONIC UZB5625, Diffus reflective type, 25mm, Dark-ON, PNP, cable 2m
EX24BPN
EX-24B-PN
PANASONIC
UZB5625, Diffus reflective type, 25mm, Dark-ON, PNP, cable 2m
Miniature Photoelectric Sensors - PANASONIC > EX20 High performance ultra-slim type photoelectric sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | EX-24B-PN |
| Part Number | EX-24B-PN |
| Product | Ultra-compact Photoelectric Sensor |
| Details | Convergent reflective(Diffused beam type)[Front sensing] |
| Product name | Ultra-compact Photoelectric Sensor EX-20 Ver.2 |
| Item | Specifications |
|---|---|
| Product Number | EX-24B-PN |
| Part Number | EX-24B-PN |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Sensing range | 2 to 25 mm 0.079 to 0.984 in (Conv. point: 10 mm 0.394 in) with white non-glossy paper (50 x 50 mm) (1.969 x 1.969 in) |
| Sensing object | Min. dia. 0.1 mm dia. 0.004 in copper wire (Setting distance: 10 mm 0.394 in) |
| Hysteresis | 15 % or less of operation distance [50 x 50 mm 1.969 x 1.969 in with white non-glossy paper] |
| Repeatability(perpendicular to sensing axis) | 0.1 mm 0.004 in or less (Setting distance: 10 mm 0.394 in) |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 13 mA or less |
| Output | PNP open-collector transistor - Maximum source current: 50 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| Output:Utilization category | DC-12 or DC-13 |
| Output:Short-circuit protection | Incorporated |
| Response time | 0.5 ms or less |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Sensitivity adjuster | - |
| Operation mode switch | - |
| Protection | IP67 (IEC) |
| Ambient temperature | -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element | Red LED (modulated) |
| Emitting element:Peak emission wavelength | 680 nm 0.027 mil |
| Material | Enclosure: Polyethylene terephthalate Lens: Polyalylate |
| Cable | 0.1 mm2 3-core cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable. |
| Weight | Net weight: 20 g approx Gross weight: 45 g approx |
| Accessory | - |
