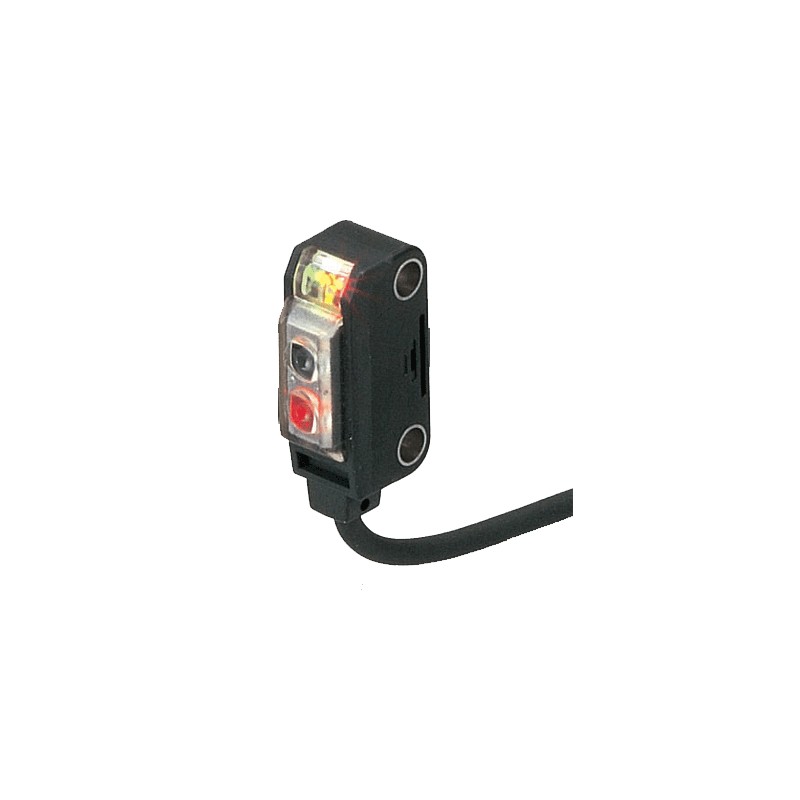

PANASONIC UEX22B EX22B EX-22B - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

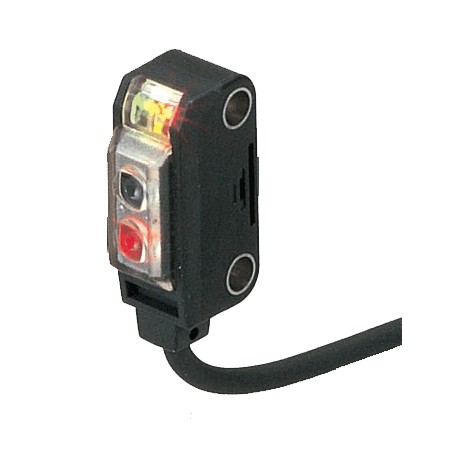

UEX22B EX22B EX-22B PANASONIC UZB632, Diffus reflective type, 160mm, Dark-On, NPN, cable 2m

Reference: UEX22B

Code: EX22B

Catalog Number: EX-22B

Manufacturer: PANASONIC

Description:

UZB632, Diffus reflective type, 160mm, Dark-On, NPN, cable 2m
Ultra-compact photoelectric sensor, diffuse direct reflection, side detection, 160 mm, NPN, dark operation, 12-24 VDC

Categories:

  • PANASONIC > Miniature Photoelectric Sensors - PANASONIC > EX20 High performance ultra-slim type photoelectric sensor - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 96,75 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product Number EX-22B
Part Number EX-22B
Product Ultra-compact Photoelectric Sensor
Details Diffuse reflective[Side sensing]
Product name Ultra-compact Photoelectric Sensor EX-20 Ver.2

Item Specifications
Product Number EX-22B
Part Number EX-22B
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 5 to 160 mm 0.197 to 6.299 in (Note) with white non-glossy paper (200 x 200 mm) (7.874 x 7.874 in)
(Note) In case of using this product at a sensing range of 50 mm 1.969 in or less, take care that the sensitivity adjustment range becomes extremely narrow.
Sensing object Opaque,translucent or transparent object
(Note) Make sure to confirm detection with an actual sensor before use.
Hysteresis 15 % or less of operation distance [200 x 200 mm 7.874 x 7.874 in with white non-glossy paper]
Repeatability(perpendicular to sensing axis) 0.3 mm 0.012 in or less
Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption 13 mA or less
Output NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output:Utilization category DC-12 or DC-13
Output:Short-circuit protection Incorporated
Response time 0.5 ms or less
Operation indicator Orange LED (lights up when the output is ON)
Stability indicator Green LED (lights up under stable light received condition or stable dark condition)
Sensitivity adjuster Continuously variable adjuster
Operation mode switch -
Protection IP67 (IEC)
Ambient temperature -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element Red LED (modulated)
Emitting element:Peak emission wavelength 680 nm 0.027 mil
Material Enclosure: Polyethylene terephthalate
Lens: Polyalylate
Cable 0.1 mm2 3-core cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 20 g approx
Gross weight: 45 g approx
Accessory Adjusting screwdriver: 1 pc
