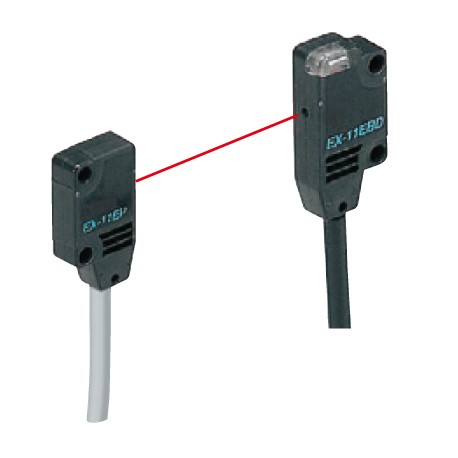

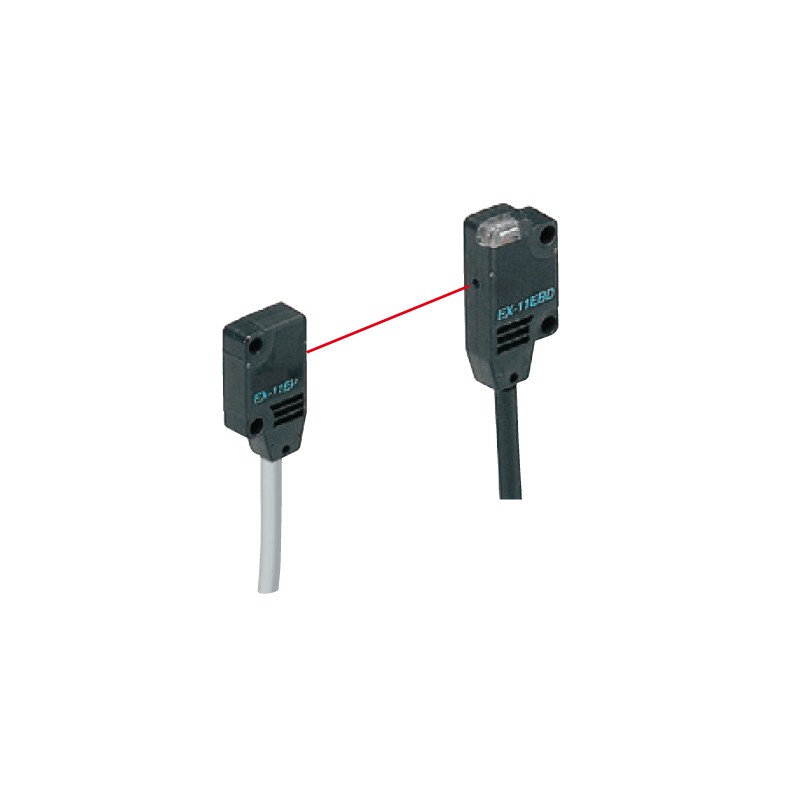

UEX19EA EX-19EA PANASONIC Thru beam, side sensing, 1m, Light-ON, NPN, cable 2m
UEX19EA
EX-19EA
PANASONIC
Thru beam, side sensing, 1m, Light-ON, NPN, cable 2m
Ultra-miniature photoelectric sensor, barrier, side detection, range 1 m., light operation, NPN, cable 2m, dimensions 10 x 14.5 x 4.5 mm.
EX-19EA_Ultra-slim Photoelectric Sensor_Ultra-slim Photoelectric Sensor EX-10_Thru-beam [Front sensing]
Miniature Photoelectric Sensors - PANASONIC > EX10 Ultra-slim type photoelectric sensor - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | EX-19EA |
| Part Number | EX-19EA |
| Product | Ultra-slim Photoelectric Sensor |
| Details | Thru-beam [Front sensing] |
| Product name | Ultra-slim Photoelectric Sensor EX-10 |
| Item | Specifications |
|---|---|
| Product Number | EX-19EA |
| Part Number | EX-19EA |
| Regulatory compliance | ・EMC Directive ： EN 60947-5-2 ・RoHS Directive ・ISO 13849-1 (Category 1, PLc) (Note) (Note) : Conformed from December 2021 production. |
| Certification | UL certification |
| Sensing range | 1 m 3.281 ft |
| Min. sensing object | ø2 mm ø0.079 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 500 mm 19.685 in) |
| Hysteresis | - |
| Repeatability(perpendicular to sensing axis) | 0.05 mm 0.002 in or less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | Emitter: 10 mA or less Receiver: 10 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 50 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (at 50 mA sink current),1 V or less (at 16 mA sink current) |
| Output:Utilization category | DC-12 or DC-13 |
| Output:Short-circuit protection | Incorporated |
| Response time | 0.5 ms or less |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Incident beam indicator | - |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Pollution degree | 3 (Industrial environment) |
| Protection | IP67 (IEC) |
| Ambient temperature | -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element | Red LED (Peak emission wavelength: 680 nm 0.027 mil, modulated) |
| Material | Enclosure: Polyarylate Lens: Polyarylate |
| Cable | 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (emitter and receiver). (Note) : For safety applications, do not exceed 30 m 98.425 ft. |
| Weight | Net weight (each emitter and receiver): 20 g approx Gross weight: 50 g approx |
| Accessory | Mounting screws: 1 set |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| UEX19EA EX-19EA ex-19ea_e_cata2.pdf | 6 Mbytes |
|
