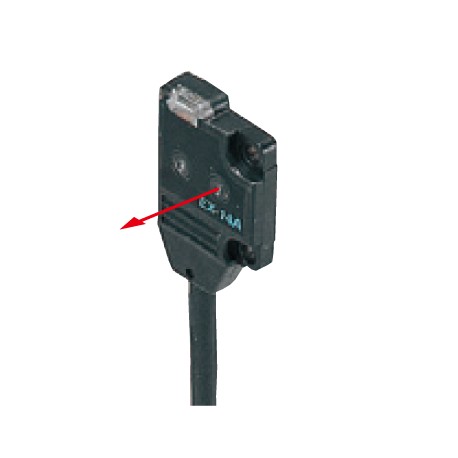

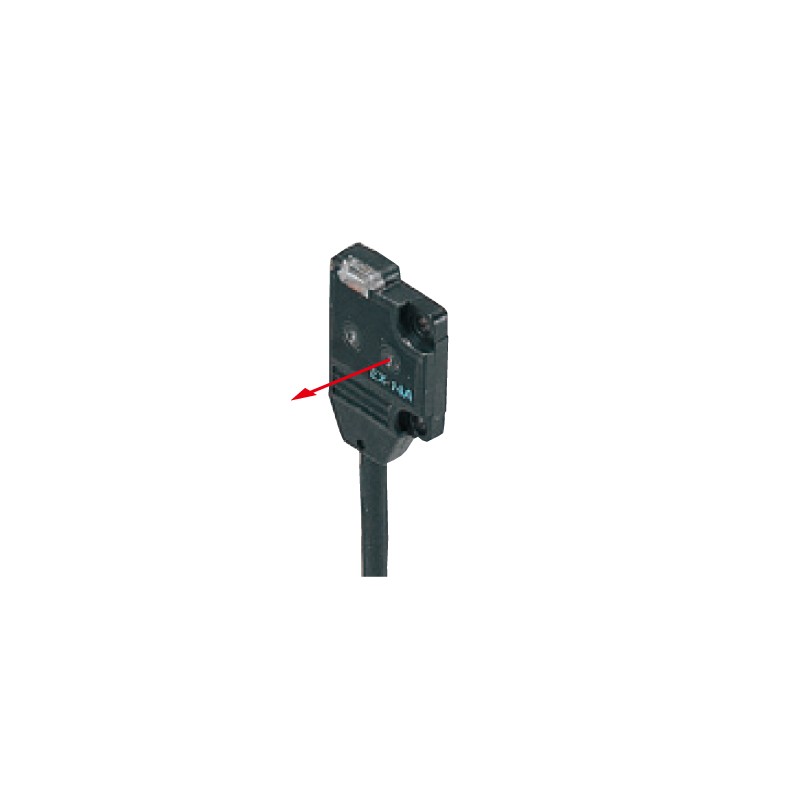

PANASONIC UEX14A EX14A EX-14A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

UEX14A EX14A EX-14A PANASONIC UZB1601, diffus reflective type, 25mm, Light-ON, NPN, cable 2m

Reference: UEX14A

Code: EX14A

Catalog Number: EX-14A

Manufacturer: PANASONIC

Description:

UZB1601, diffus reflective type, 25mm, Light-ON, NPN, cable 2m
Ultra-miniature photoelectric sensor, diffuse reflection, front detection, range 2 to 25 mm, light operation, NPN, cable 2m, dimensions 13 x 16 x 3.5 mm.

Categories:

  • PANASONIC > Miniature Photoelectric Sensors - PANASONIC > EX10 Ultra-slim type photoelectric sensor - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 85,77 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product Number EX-14A
Part Number EX-14A
Product Ultra-slim Photoelectric Sensor
Details Convergent reflective (Diffused beam type) [Front sensing]
Product name Ultra-slim Photoelectric Sensor EX-10

Item Specifications
Product Number EX-14A
Part Number EX-14A
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 2 to 25 mm 0.079 to0.984 in(Conv. point: 10 mm 0.394 in)
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 ×1.969 in) as the object.
Min. sensing object ø0.1 mmø0.004 incopper wire (Completely beam interrupted object) (Setting distance: 10 mm0.394 in)
Hysteresis 15 % or less of operation distance
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object.
Repeatability(perpendicular to sensing axis) 0.1 mm0.004 inor less
Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption 13 mA or less
Output NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current),1 V or less (at 16 mA sink current)
Output:Utilization category DC-12 or DC-13
Output:Short-circuit protection Incorporated
Response time 0.5 ms or less
Operation indicator Orange LED (lights up when the output is ON)
Incident beam indicator -
Stability indicator Green LED (lights up under stable light received condition or stable dark condition)
Pollution degree 3 (Industrial environment)
Protection IP67 (IEC)
Ambient temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element Red LED (Peak emission wavelength: 680 nm0.027 mil, modulated)
Material Enclosure: Polyethylene terephthalate
Lens: Polyalylate
Cable 0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlong
Cable extension Extension up to total 50 m164.042 ftis possible with 0.3 mm2, or more, cable.
Weight Net weight: 20 g approx
Gross weight: 40 g approx
Accessory Mounting screws: 1 set
