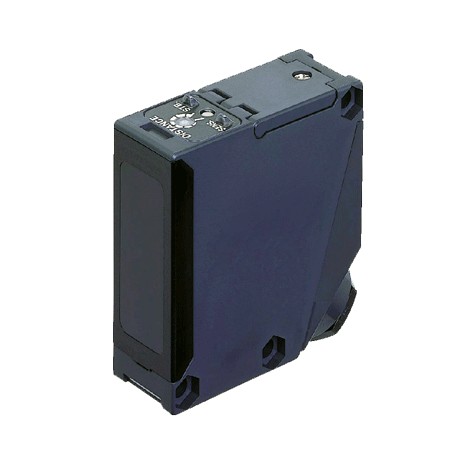

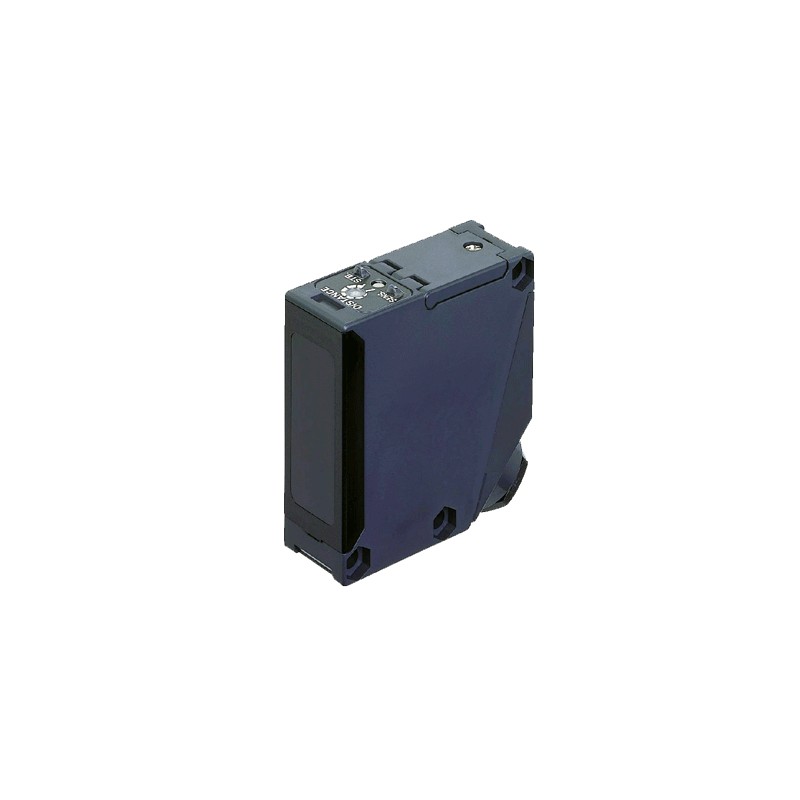

EQ511T EQ-511T PANASONIC Trigonometric diffuse reflective type 2,5m, with timer function, NPN/ PNP, Screw te..
EQ511T
EQ-511T
PANASONIC
Trigonometric diffuse reflective type 2,5m, with timer function, NPN/ PNP, Screw terminal type
Background supression - PANASONIC > EQ500 Long range background supression photoelectric sensors - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | EQ-511T |
| Part Number | EQ-511T |
| Product | Adjustable Range Reflective Photoelectric Sensor |
| Details | DC-voltage [With timer] |
| Product name | Adjustable Range Reflective Photoelectric Sensor EQ-500 |
| Item | Specifications |
|---|---|
| Product Number | EQ-511T |
| Part Number | EQ-511T |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Adjustable range | 0.2 to 2.5 m 0.656 to 8.202 ft (Note 1) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can also detect an object 0.1 m0.328 ft, or more, away. (Note 2) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm7.874 x 7.874 in) as the object. |
| Sensing range(at maximum setting distance) | 0.1 to 2.5 m 0.328 to 8.202 ft (Note) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm7.874 x 7.874 in) as the object. |
| Hysteresis | 10 % or less of operation distance (Note) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object. |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Power / Current consumption | 45 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current) PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current) |
| Output:Output operation | Switchable either Detection-ON or Detection-OFF |
| Output:Short-circuit protection | Incorporated |
| Response time | 2 ms or less (depends on the setting timer period) |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Stability indicator | Green LED (lights up under stable operating condition) |
| Distance adjuster | 2-turn mechanical adjuster with indicator |
| Sensing mode | Switchable either BGS or FGS function |
| Timer function | Incorporated with variable (0.1 to 5 sec.) ON-delay/OFF-delay timer |
| Automatic Interference prevention function | Incorporated (Note) Note that the detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object. |
| Protection | IP67 (IEC) |
| Ambient temperature | –20 to +55 ℃–4 to +131℉(No dew condensation or icing allowed), Storage: –30 to +70 ℃–22 to +158℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 Lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 55 Hz frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, modulated) |
| Receiving element | 2-segment photodiode |
| Material | Enclosure: ABS Front cover: Polycarbonate Display cover: Polycarbonate |
| Connection method | Screw-on terminal connection |
| Cable | Suitable for round cable φ9 to φ11 mmφ0.354 to φ0.433 in |
| Cable length | Total length up to 100 m328.084 ftis possible with 0.3 mm2, or more, cabtyre cable. |
| Weight | Net weight: 85 g approx. |
| Accessory | Adjusting screwdriver: 1 pc. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: EQ511T - EQ511T | EQ-511T | 1 Mbytes |
 |
| Download general catalog |
|
