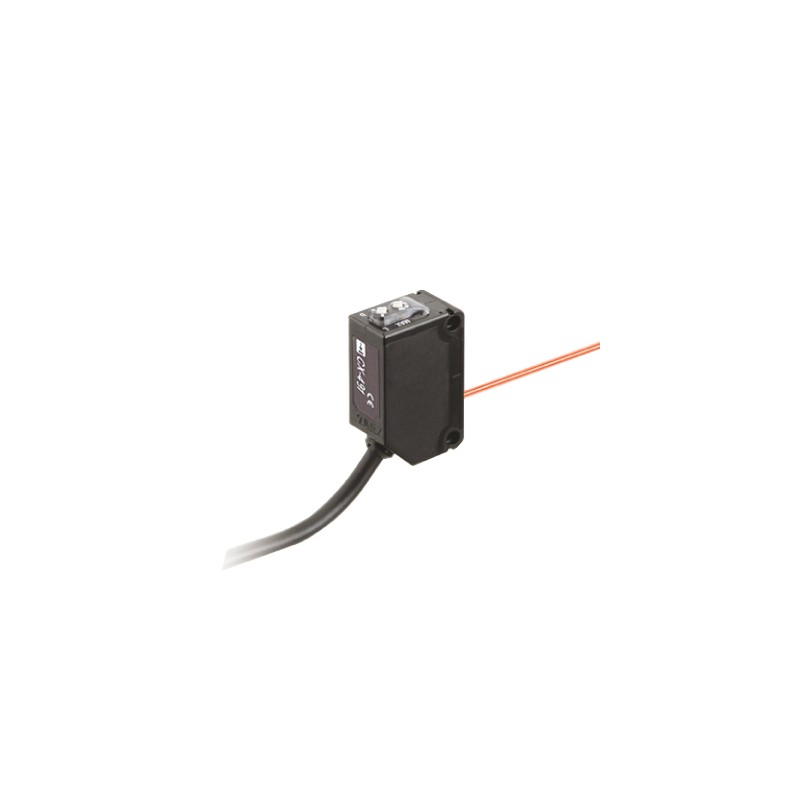

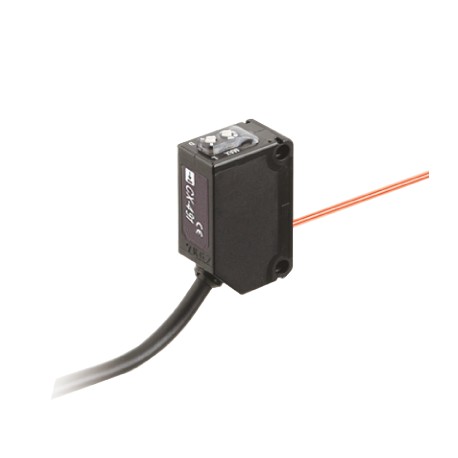

CX493
CX-493
PANASONIC
1
retroreflective type, 5m, NPN, cable 2m
Miniature Photoelectric Sensors - PANASONIC > CX400 Compact Photoelectric Sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | CX-493 |
Part Number | CX-493 |
Product | Compact Photoelectric Sensor |
Details | Retroreflective(Long sensing range) |
Product name | Compact Photoelectric Sensor CX-400 Ver.2 |
Item | Specifications |
---|---|
Product Number | CX-493 |
Part Number | CX-493 |
CE marking directive compliance | EMC Directive, RoHS Directive |
Sensing range | 5 m16.404 ft (Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor. |
Sensing object | Ø50 mmØ1.969 inor more opaque or translucent object (Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor. (Note) Make sure to confirm detection with an actual sensor before use. |
Hysteresis | - |
Repeatability(perpendicular to sensing axis) | 0.5 mm0.020 inor less |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Current consumption | 10 mA or less |
Output | NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
Output:Output operation | Switchable either Light-ON or Dark-ON |
Output:Short-circuit protection | Incorporated |
Response time | 1 ms or less |
Operation indicator | Orange LED(lights up when the output is ON) (incorporated on the receiver for thru-beam type) |
Stability indicator | Green LED(lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type) |
Power indicator | - |
Sensitivity adjuster | Continuously variable adjuster(incorporated on the receiver for thru-beam type) |
Automatic interference prevention function | Incorporated(Two units of sensors can be mounted close together.) |
Protection | IP67 (IEC) |
Ambient temperature | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 500 Hz frequency, 1.5 mm0.059 inamplitude (10 G max.) in X, Y and Z directions for two hours each |
Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
Emitting element (modulated) | Red LED |
Emitting element (modulated):Peak emission wavelength | 650 nm0.026 mil |
Material | Enclosure: PBT (polybutylene terephthalate) Lens: acrylic Indicator cover: acrylic |
Cable | 0.2 mm23-core cabtyre cable, 2 m6.562 ftlong |
Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
Weight | Net weight: 50 g approx. Gross weight: 80 g approx. |
Accessory | RF-230 (Reflector): 1 pc. |
Title: | Size: | Type: |
---|---|---|
Datasheet 1: CX493 - CX493 | CX-493 | 3 Mbytes | |
Download general catalog |
