PANASONICMiniature Photoelectric Sensors - PANASONICCX400 COMPACT PHOTOELECTRIC SENSOR. BASIC TYPES - PANASONICCX-412A-P-C05 PANASONIC Basic thru-beam type, light-ON, 15m, PNP, cable 0,5 m

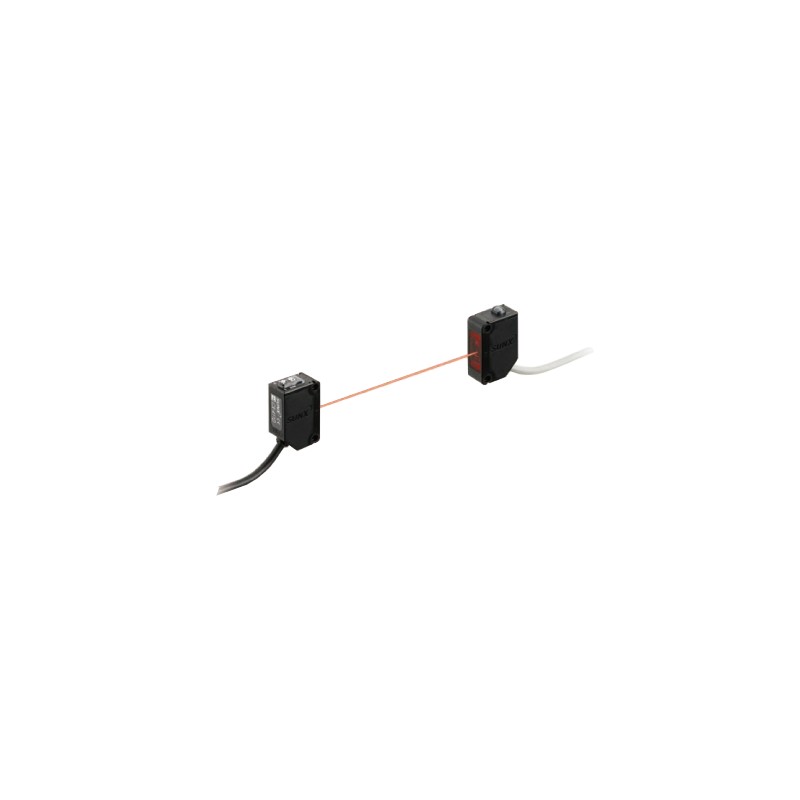

PANASONIC CX-412A-P-C05 CX-412A-P-C05 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CX-412A-P-C05 PANASONIC Basic thru-beam type, light-ON, 15m, PNP, cable 0,5 m

Reference: CX-412A-P-C05

Manufacturer: PANASONIC

Description:

Basic thru-beam type, light-ON, 15m, PNP, cable 0,5 m

Categories:

  • PANASONIC > Miniature Photoelectric Sensors - PANASONIC > CX400 Compact Photoelectric Sensor. Basic types - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Product Number CX-412A-P-C05
Part Number CX-412A-P-C05
Product Compact Photoelectric Sensor
Details Thru-beam(Long sensing range)
Product name Compact Photoelectric Sensor CX-400 Ver.2

Item Specifications
Product Number CX-412A-P-C05
Part Number CX-412A-P-C05
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 15 m49.213 ft
Sensing object Ø12 mmØ0.472 inor more opaque object
(Note) If slit masks (optional) are fitted, an object of Ø0.5 mm Ø0.020 in(using round slit mask) can be detected.
Hysteresis -
Repeatability(perpendicular to sensing axis) 0.5 mm0.020 inor less
Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption Emitter: 20 mA or less
Receiver: 10 mA or less
Output PNP open-collector transistor
- Maximum source current: 100 mA
- Applied voltage: 30 V DC or less (between output and +V)
- Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current)
Output:Short-circuit protection Incorporated
Response time 1 ms or less
Operation indicator Orange LED(lights up when the output is ON)
(incorporated on the receiver for thru-beam type)
Stability indicator Green LED(lights up under stable light received condition or stable dark condition)
(incorporated on the receiver for thru-beam type)
Power indicator Green LED(lights up when the power is ON)
(incorporated on the emitter)
Sensitivity adjuster -
Automatic interference prevention function -
Protection IP67 (IEC)
Ambient temperature - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 1.5 mm0.059 indouble amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element (modulated) Infrared LED
Emitting element (modulated):Peak emission wavelength 870 nm0.034 mil
Material Enclosure: PBT (polybutylene terephthalate)
Lens: acrylic
Indicator cover: acrylic
Cable 0.2 mm23-core (emitter: 2-core) cabtyre cable, 0.5 m1.640 ftlong
Cable extension Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable (both emitter and receiver).
