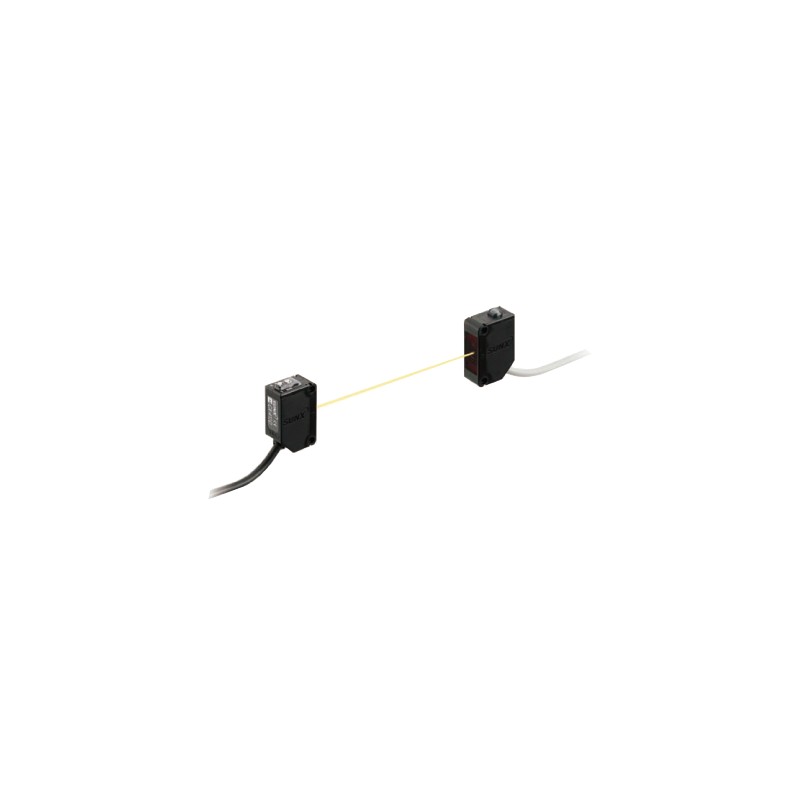

CX412
CX-412
PANASONIC
1
Thru-beam, 15m, NPN, cable 2m
Miniature Photoelectric Sensors - PANASONIC > CX400 Compact Photoelectric Sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | CX-412 |
Part Number | CX-412 |
Product | Compact Photoelectric Sensor |
Details | Thru-beam(Long sensing range) |
Product name | Compact Photoelectric Sensor CX-400 Ver.2 |
Item | Specifications |
---|---|
Product Number | CX-412 |
Part Number | CX-412 |
CE marking directive compliance | EMC Directive, RoHS Directive |
Sensing range | 15 m49.213 ft |
Sensing object | Ø12 mmØ0.472 inor more opaque object (Note) If slit masks (optional) are fitted, an object of Ø0.5 mm Ø0.020 in(using round slit mask) can be detected. |
Hysteresis | - |
Repeatability(perpendicular to sensing axis) | 0.5 mm0.020 inor less |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Current consumption | Emitter: 20 mA or less Receiver: 10 mA or less |
Output | NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
Output:Output operation | Switchable either Light-ON or Dark-ON |
Output:Short-circuit protection | Incorporated |
Response time | 1 ms or less |
Operation indicator | Orange LED(lights up when the output is ON) (incorporated on the receiver for thru-beam type) |
Stability indicator | Green LED(lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type) |
Power indicator | Green LED(lights up when the power is ON) (incorporated on the emitter) |
Sensitivity adjuster | Continuously variable adjuster(incorporated on the receiver for thru-beam type) |
Automatic interference prevention function | - |
Protection | IP67 (IEC) |
Ambient temperature | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 500 Hz frequency, 1.5 mm0.059 inamplitude (10 G max.) in X, Y and Z directions for two hours each |
Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
Emitting element (modulated) | Infrared LED |
Emitting element (modulated):Peak emission wavelength | 870 nm0.034 mil |
Material | Enclosure: PBT (polybutylene terephthalate) Lens: acrylic Indicator cover: acrylic |
Cable | 0.2 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlong |
Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable (both emitter and receiver). |
Weight | Net weight: 95 g approx. Gross weight: 100 g approx. |
Accessory | - |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes | |
PDF CATALOGUE PANASONIC EN.pdf | 15 Mbytes | |
Datasheet 1: CX412 - CX412 | CX-412 | 3 Mbytes | |
