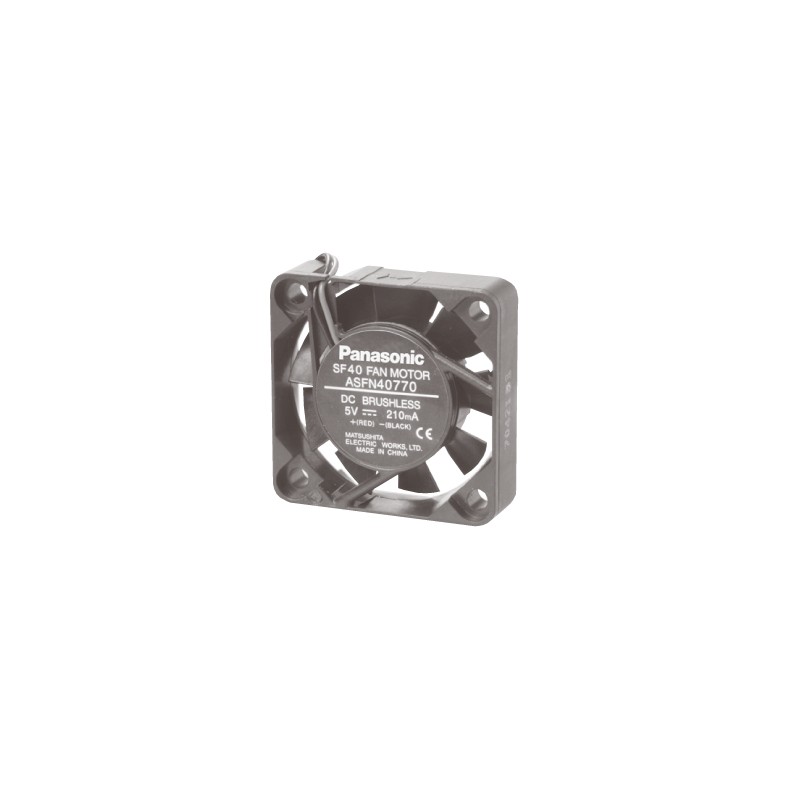

PANASONIC ASFN40770 ASFN40770 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ASFN40770 PANASONIC DC fan Motor, 5V DC, 40x40x10

Reference: ASFN40770

Manufacturer: PANASONIC

Description:

DC fan Motor, 5V DC, 40x40x10

Categories:

  • PANASONIC > Fans - PANASONIC > ASFN DC Fans - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Product Number ASFN40770
Part Number ASFN40770
Product DC Fan Motor 40 x 10t
Details Standard speed
Product name DC Fan Motor 40 x 10t(ASFN4)

Item Specifications
Product Number ASFN40770
Part Number ASFN40770
Rated voltage 5 V
Input power 1.05 W max/0.775 W AVE
Rated current 210 mA max/155 mA AVE
Rotation speed 6,500 r/min
Max. air flow 0.17 m3/min
Max. static pressure 46.0 Pa
Noise 29 dB(A)
Weight 15.0 g
Ambient temperature -10degrees to +60degrees +14degrees Fahrenheit to +140degrees Fahrenheit
Humidity resistance test condition 40degrees 104degrees Fahrenheit, 95%RH, 500 hrs
Temperature rise Coil surface: Max. 50degrees 122degrees Fahrenheit (Nominal voltage, by resistive method)
External surface: Max. 20degrees 68degrees Fahrenheit (Nominal voltage, by thermocouple method)
Breakdown voltage 500 V AC for 1 min. (between lead wire and external housing)
Insulation resistance Min. 10 MOhm (at 500 V DC)
Vibration resistance:Frequency 10 to 55Hz
Vibration resistance:Double amplitude width 0.75 mm
Vibration resistance:Applied direction X, Y and Z directions
Vibration resistance:Applied time 10 min. in each direction
Lead wire tensile strength 9.8 N, single wires did not break at 15 seconds
Fan blockage No coil burnout even after blockage of 72 hrs. at nominal voltage.
Reverse polarity power connection No damage even after reverse polarity connection for short time at nominal voltage.
Expected life 90% survival rate at 60,000 hrs. (When rotation frequency drops 30% of initial value when run at nominal voltage under 25degrees 77degrees Fahrenheit , room humidity.)
Materials used Frame: plastic
Propeller: plastic
Bearings: ball bearings
Lead wires: UL1061 and AWG26
