PANASONICUV curing systemsUV CURING SYSTEMS. CONTROLLERANUJ3500 PANASONIC Controller UJ35

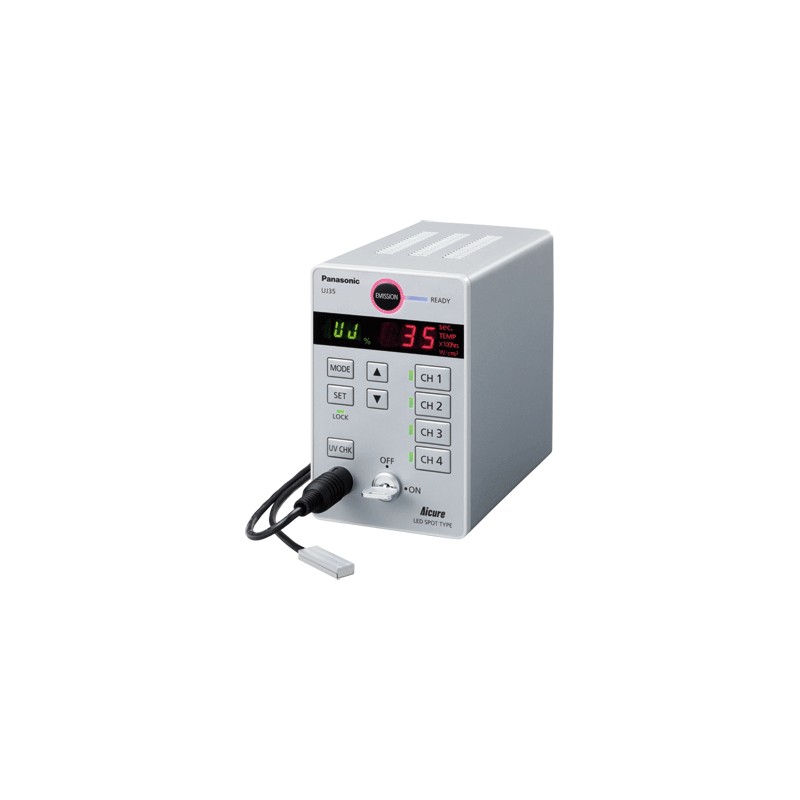

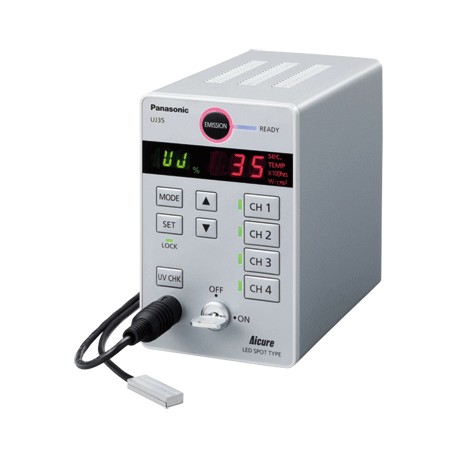

PANASONIC ANUJ3500 ANUJ3500 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ANUJ3500 PANASONIC Controller UJ35

Reference: ANUJ3500

Manufacturer: PANASONIC

Description:

Controller UJ35

Categories:

  • PANASONIC > UV curing systems > UV curing systems. Controller

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product Number ANUJ3500
Part Number ANUJ3500
Product UJ35 Controller
Details High performance model
Product name Aicure UJ30/35 LED Spot Type UV Curing Systems

Item Specifications
Product Number ANUJ3500
Part Number ANUJ3500
Connectable heads 1to 4 heads
Connectable UV sensor Compatible
UV irradiation One pattern in simple mode and programmed pattern irradiation (up to 7 patterns with up to 10 steps) The heads are either collectively or individually controlled.
Type switching Switchable (8 types)
Intensity/irradiation control Digital intensity and irradiation control manual or timer control
Manual/timer control (0.1 to 99.9 sec., 100 to 999 sec.)
Auto-tuning function using the UV sensor (for UJ35 only)
Specifications of UV sensor: Temperature characteristic: ±5 % F.S.
(+5 to +35℃+41 to +95℉)/ Repeat accuracy: ±1 % (+25℃+77℉)]
Setting/Operation Setting by the operation switches and power-on/off by a key switch
RS-232C (UJ35 setup tool)
Display 7-segment display
Cooling method Natural cooling (without a fan)
External control:Method RS-232C Parallel I/O
External control:External input Individual irradiation/stop input, interlock, full-irradiation input, and pattern switching
External control:External output READY signal, error signal, warning output,
BUSY output (each head separately), and +5 V output (for indicators)
Operating voltage Supplied AC adapter: 100 to 240 V AC (plus or minus10%),
50/60 Hz, 60 VA (at 100 V AC)
Operating ambient temperature / Operating ambient humidity 0 to +35℃+32 to +95℉/ 30 to 85 % RH (No dew condensation allowed)
Storage ambient temperature / Storage ambient humidity –10 to +60℃+14 to +140℉/ 30 to 85 % RH (No dew condensation or icing allowed)
Accessories AC adapter and key
Weight Approx. 960g (excluding the AC adapter)

DATASHEET - PDF

Title
Size
Type
ANUJ3500 ANUJ3500 ANUJ3500 anuj3500_e_cata2.pdf
5 Mbytes
PDF CATALOG PANASONIC UV EN
8 Mbytes
PDF CATALOGUE PANASONIC EN
15 Mbytes
