ANUJ3000
PANASONIC
1

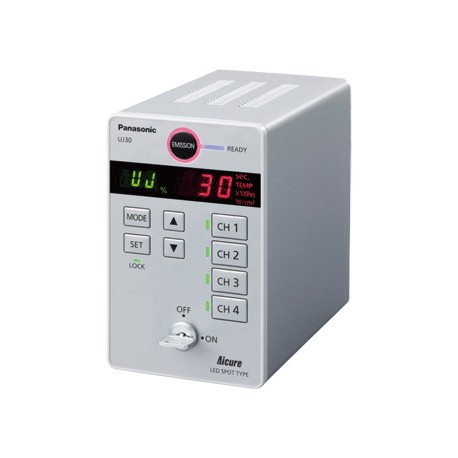

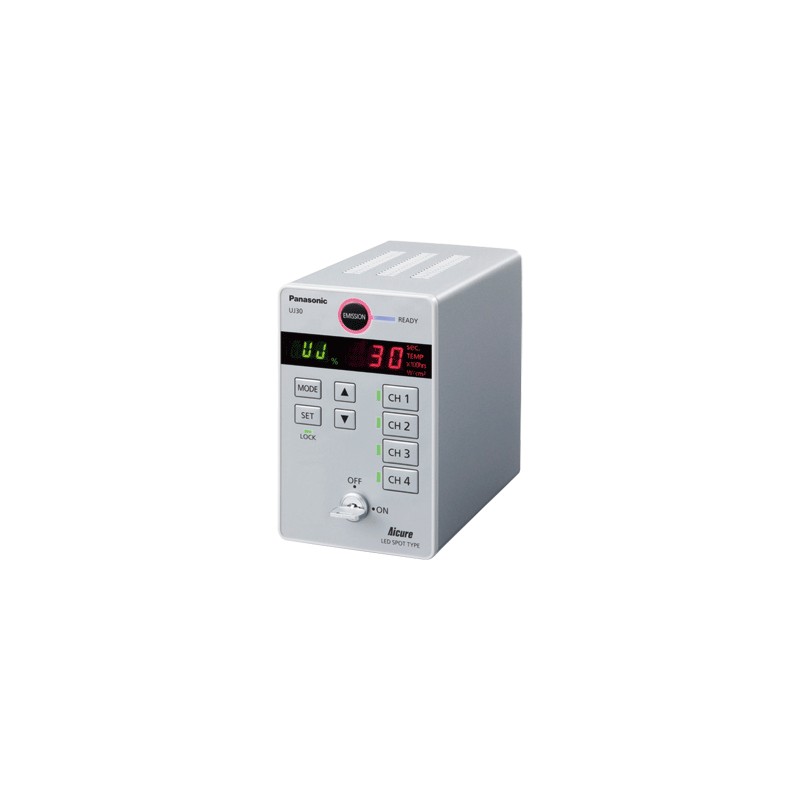

Controller UJ30
UV curing systems > UV curing systems. Controller
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | ANUJ3000 |
Part Number | ANUJ3000 |
Product | UJ30 Controller |
Details | Standard model |
Product name | Aicure UJ30/35 LED Spot Type UV Curing Systems |
Item | Specifications |
---|---|
Product Number | ANUJ3000 |
Part Number | ANUJ3000 |
Connectable heads | 1to 4 heads |
Connectable UV sensor | Not compatible |
UV irradiation | One patten in simple mode The heads are either collectively or individually controlled. |
Type switching | None (1 type) |
Intensity/irradiation control | Digital intensity and irradiation control manual or timer control Manual/timer control (0.1 to 99.9 sec., 100 to 999 sec.) Auto-tuning function using the UV sensor (for UJ35 only) Specifications of UV sensor: Temperature characteristic: ±5 % F.S. (+5 to +35℃+41 to +95℉)/ Repeat accuracy: ±1 % (+25℃+77℉)] |
Setting/Operation | Setting by the operation switches and power-on/off by a key switch |
Display | 7-segment display |
Cooling method | Natural cooling (without a fan) |
External control:Method | Parallel I/O |
External control:External input | Individual irradiation/stop input, interlock, full-irradiation and input |
External control:External output | READY signal, error signal, warning output, BUSY output (each head separately), and +5 V output (for indicators) |
Operating voltage | Supplied AC adapter: 100 to 240 V AC (plus or minus10%), 50/60 Hz, 60 VA (at 100 V AC) |
Operating ambient temperature / Operating ambient humidity | 0 to +35℃+32 to +95℉/ 30 to 85 % RH (No dew condensation allowed) |
Storage ambient temperature / Storage ambient humidity | –10 to +60℃+14 to +140℉/ 30 to 85 % RH (No dew condensation or icing allowed) |
Accessories | AC adapter and key |
Weight | Approx. 940g (excluding the AC adapter) |
Title: | Size: | Type: |
---|---|---|
ANUJ3000 ANUJ3000 ANUJ3000 anuj3000_e_cata3.pdf | 525 Kbytes | |
Download general catalog |
