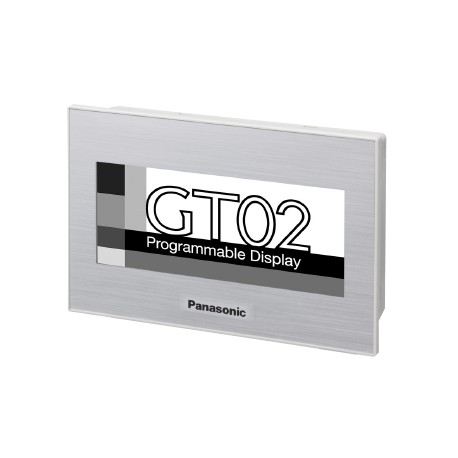

AIG02MQ03D PANASONIC Touch panel GT02 3.8", monochrome, 240x96 pix., RS232 + mini-USB (prog.), 5V DC, silver..
AIG02MQ03D
PANASONIC
Touch panel GT02 3.8", monochrome, 240x96 pix., RS232 + mini-USB (prog.), 5V DC, silver frame, LED backlight: white, red, pink, no SD card slot
GT02 3.8" Touch Screen, silver frame, 3 backlight colors (white, red, pink), 240 x 96 dots, RS232, 5 VDC
AIG02MQ03D_Compact Programmable Display_GT02_GT02M
GT-series touch terminals - PANASONIC > GT02, 3 colors, 3,8" miniature touch terminal - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Often bought together
▲Best sellers
▲More info
▲| Product Number | AIG02MQ03D |
| Part Number | AIG02MQ03D |
| Product | Compact Programmable Display |
| Details | GT02M |
| Product name | GT02 |
| Item | Specifications |
|---|---|
| Product Number | AIG02MQ03D |
| Part Number | AIG02MQ03D |
| Power supply | 5 V DC |
| Operating voltage range | 4.5 to 5.5 V DC |
| Power consumption | 1 W or less |
| Power supply unit isolation method | — |
| Ambient temperature | 0 to +50 ℃ +32 to +122℉ |
| Ambient humidity | 20 to 85% RH (at +25 ℃ +77 ℉), (No dew condensation allowed) |
| Storage temperature | –20 to +60 ℃ –4 to +140℉ |
| Storage humidity | 10 to 85% RH (at +25 ℃ +77 ℉), (No dew condensation allowed) |
| Vibration resistance | 5 to 8.4 Hz amplitude: 3.5 mm 0.138 in, 8.4 to 150 Hz acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave/min.) |
| Shock resistance | 147 m/s2, 3 times in each of the X, Y and Z directions |
| Superposed noise suppression | 1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator) |
| Environmental resistance | IP67 (in the initial stages) Note: This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing. |
| Net weight | 170 g approx. |
| Display:Display device | TFT monochrome LCD Note: The display has been changed STN LCD to TFT LCD from production in February 2017. |
| Display:Resolution | 240 (W) × 96 (H) dots |
| Display:Display color | 2 colors (black/white) |
| Display:Displayable area | 88.5 (W) × 35.4 (H) mm 3.484 (W) × 1.394 (H) inch |
| Display:Backlight | 3-color LED (white / pink / red) |
| Functions:Font types | Fixed (GTWIN) : 1/4 width (8 × 8), half width (16 × 8), full width (16 × 16) Characters can be displayed in the 1, 2, 4, or 8 times width or height. TrueType (GTWIN): 10 to 96 dots |
| Functions:Languages | Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese |
| Functions:Graphics | Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, Bitmaps |
| Functions:Number of screens | 250 screens approx. Note: The number of screens that can be registered varies according to the registered contents. |
| Functions:Screen setting No. | No. 0 to 3FF |
| Functions:Part functions | Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Custom parts (messages, lamps, switches) |
| Functions:Other functions | Recipe, Flow display, Write device, Language switching, GT link, Operation security, Data logging, SD recipe Note: The data logging and SD recipe functions are available with only models equipped with an SD / SDHC memory card slot. |
| Functions:Clock function | － |
| Functions:Contrast adjustment | Unnecessary |
| Functions:Buzzer | Installed |
| Functions:Automatic communication settings | The communication speed (baud rate) is automatically changed if there is no response from the target equipment. |
| Functions:Through function | GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC. |
| Functions:Screen creation | Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10 Note: The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10. Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries. |
| Touch key resolution | Free layout (8 dots min.) |
| Touch key operation force | 0.8 N or less |
| Touch key life | 1 million operations or more (at +25 ℃ +77 ℉) |
| COM. Port:Communication standard | Conforms to RS-232C |
| COM. Port:External communication conditions | Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, 115,200 bps Data bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit |
| COM. Port:Protocol | Our FP series supported, General-purpose serial interface supported, Other companies' PLC supported (Refer to the compatible PLC list for manufacturers and models.) |
| COM. Port:Connector | Connector terminal block (8 pins) |
| Screen data transfer interface:Communication standard | USB1.1 |
| Screen data transfer interface:Protocol | Our dedicated protocol |
| Screen data transfer interface:Connector | USB Mini-B |
| User’s memory:Memory | F-ROM |
| User's memory:Capacity | 2 Mbyte |
| Memory backup:Memory | － |
| Memory backup:Backup battery | － |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC HM INTERFACE EN.pdf | 2 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: AIG02MQ03D - AIG02MQ03D | AIG02MQ03D | 6 Mbytes |
|
