PANASONICFP7 Programmable controllersAFP7RTD8 PANASONIC FP7 temperature sensors unit 8 channels (triplex), PT100(-215°C bis +665°C), jPT100, Pt10..

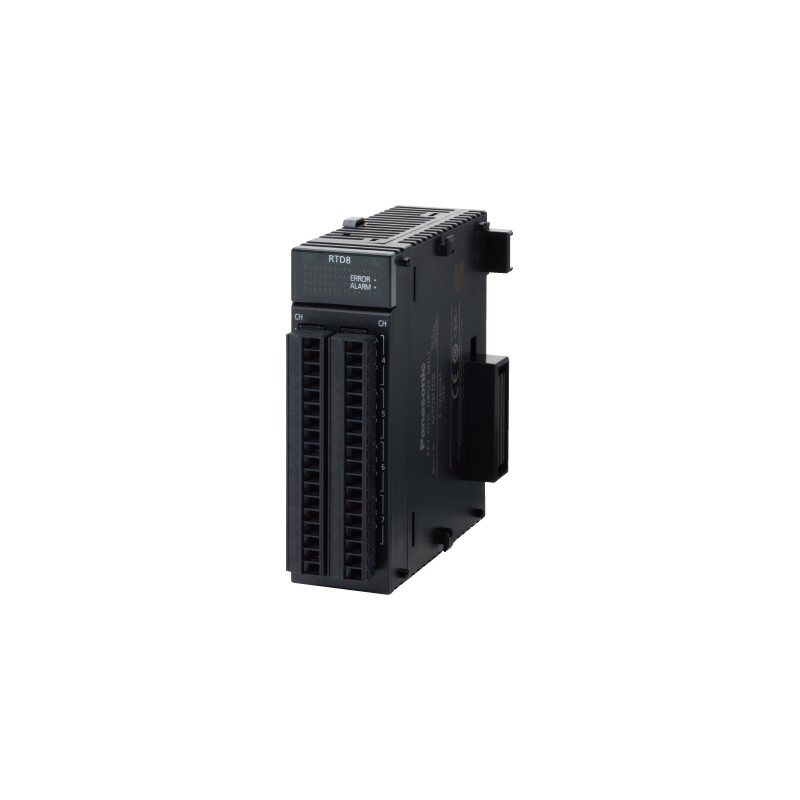

PANASONIC AFP7RTD8 AFP7RTD8 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

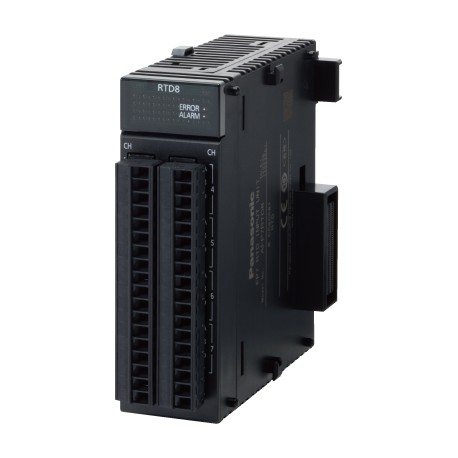

AFP7RTD8 PANASONIC FP7 temperature sensors unit 8 channels (triplex), PT100(-215°C bis +665°C), jPT100, Pt10..

Reference: AFP7RTD8

Manufacturer: PANASONIC

Description:

FP7 temperature sensors unit 8 channels (triplex), PT100(-215°C bis +665°C), jPT100, Pt1000, 0.1° resolution, MC conenctor
FP7 Expansion. 8 EA type Pt100/JPt100/Pt1000, resolution 0.1°C
AFP7RTD8_FP7 Temperature input units_FP7 Temperature input units

Categories:

  • PANASONIC > FP7 Programmable controllers

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 815,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 9 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product NumberAFP7RTD8
Part NumberAFP7RTD8
ProductFP7 Temperature input units
Product name FP7 Temperature input units

ItemSpecifications
Product NumberAFP7RTD8
Part NumberAFP7RTD8
Number of channels8 channels
Input range(resolution): Resistance temperature detector (resolution: 0.1 ºC)Pt100 (1): -100.0 to 200.0degrees
Pt100 (2): -200.0 to 650.0degrees
JPt100 (1): -100.0 to 200.0degrees
JPt100 (2): -200.0 to 650.0degrees
Pt1000: -100.0 to 100.0degrees



Conversion speed25 ms/channel + 25 ms
Add the drift compensation measuring time to the number of measuring channels.
Overall accuracyplus or minus 0.1%F.S.or less(at +25degrees +77degrees Fahrenheit )
plus or minus 0.3%F.S.or less(at 0 to +55degrees +32 to +131degrees Fahrenheit )
Allowable signal source resistanceR.T.D. input: 30 Ohm (three wires balanced)
Insulation method:Between input terminals and internal circuitPhotocoupler and isolated DC/DC converter
Insulation method:Between channelsPhotoMOS relay
Conversion execution / non-execution channel settingSelectable per channel unit
Input range change methodSelectable per channel
Digital processing:AveragingCycle, time, moving
Digital processing:Offset settingAny value within plus or minus 3,000
Digital processing:Gain settingplus or minus 10%
Comparison of upper and lower limit valuesSelectable for one channel
Max. and min. value holdingSelectable for one channel
Broken wire detectionAvailable
Connection methodConnector type terminal block

DATASHEET - PDF

Title
Size
Type
PDF CATALOG PANASONIC PROGRAMMABLE LOGIC CONTROLLERS EN
6 Mbytes
PDF CATALOGUE PANASONIC EN
15 Mbytes
