PANASONICFP7 Programmable controllersAFP7HSC2T PANASONIC FP7 High Speed Counter Modul, 2 x 2 phase high speed counter (16MHz/4 multiple), 4 trans..

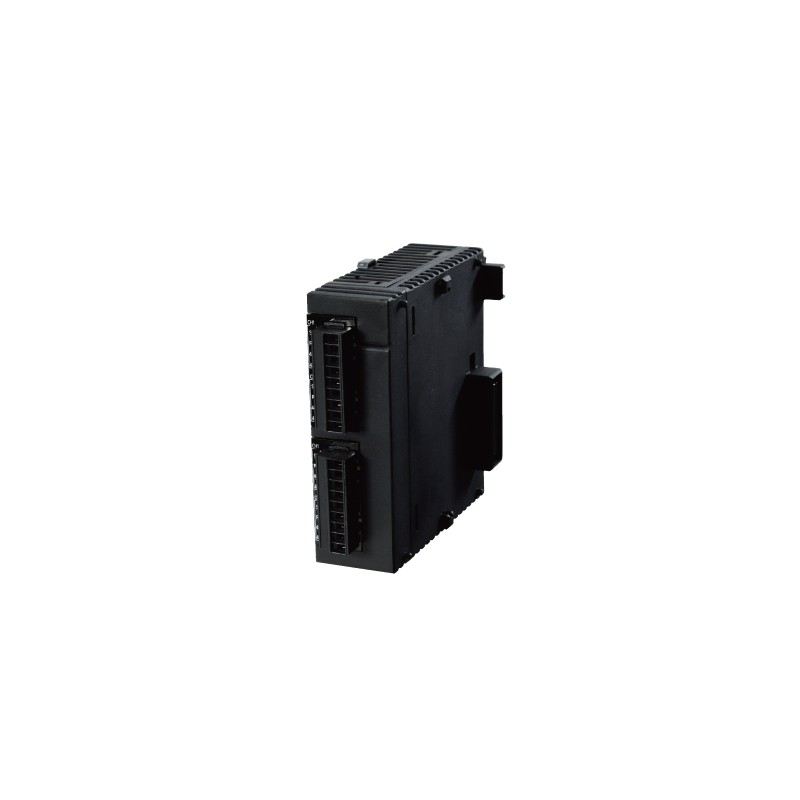

PANASONIC AFP7HSC2T AFP7HSC2T - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

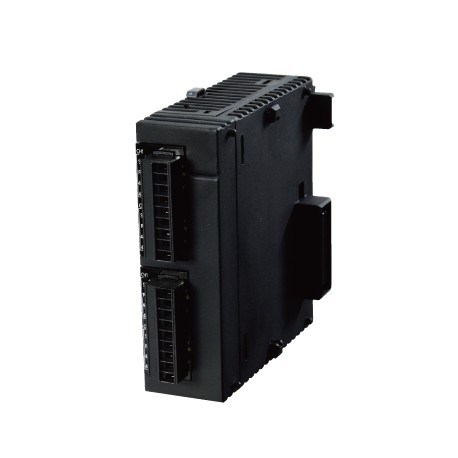

AFP7HSC2T PANASONIC FP7 High Speed Counter Modul, 2 x 2 phase high speed counter (16MHz/4 multiple), 4 trans..

Reference: AFP7HSC2T

Manufacturer: PANASONIC

Description:

FP7 High Speed Counter Modul, 2 x 2 phase high speed counter (16MHz/4 multiple), 4 transistor NPN outputs, 40 pin MIL connector
FP7 Expansion. High Speed Counting Module, 2 Dual Phase Channels, 4 Interrupt Inputs, 4 Configurable SD NPNs (NPNs)
AFP7HSC2T_FP7 High-speed Counter Units_FP7 High-speed Counter

Categories:

  • PANASONIC > FP7 Programmable controllers

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 713,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 9 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product NumberAFP7HSC2T
Part NumberAFP7HSC2T
ProductFP7 High-speed Counter Units
Product name FP7 High-speed Counter

ItemSpecifications
Product NumberAFP7HSC2T
Part NumberAFP7HSC2T
Input:Insulation methodPhotocoupler insulation
Input:Rated input voltage12 to 24 V DC / 3.5 to 5 V DC
Input:Input impedance:24 V DC3.0 kOhm approx.
Input:Input impedance:5 V DC390 Ohm (5 V DC) approx.
Input:Usage voltage range:24 V DC10.8 to 26.4 V DC
Input:Usage voltage range:5 V DC3.5 to 5.25 V DC
Input:Min. ON voltage / Min. ON current:24 V DC10 V DC / 4 mA
Input:Min. ON voltage / Min. ON current:5 V DC3.0 V DC / 4 mA
Input:Max. OFF voltage / Max. OFF current:24 V DC2.0 V DC / 2 mA
Input:Max. OFF voltage / Max. OFF current:5 V DC1.0 V DC / 0.5 mA
Input:Input time constant settingNone, 0.1 micro s, 0.2 micro s, 0.5 micro s, 1.0 micro s, 2.0 micro s and 10.0 micro s
Count function:No. of counters2ch
Count function:Counter typeLinear counter / Ring counter
Count function:Counting rangeSigned 32-bit (-2,147,483,648 to +2,147,483,647)
Count function:Max. input frequency4 MHz / 8 MHz for individual input (phases A and B) (Duty ratio 50 plus or minus 10 %), 4 MHz / 8 MHz for direction discrimination input (Duty ratio 50 plus or minus 10 %), 4 MHz / 8 MHz /16 MHz for 2-phase input (Duty ratio 50 plus or minus 10 %, Phase shifting below 5 %)
Count function:Input signalPhases A, B and Z
Count function:External I/OControl signal input: 4 points (2 points/ch), External output: 4 points (2 points/ch)
Count function:Counter input typeIndividual input (Phases A and B): 1 multiple, 2-multiple
Direction discrimination input: 1 multiple, 2-multiple
2-phase input: 1 multiple, 2-multiple, 4-multiple

Measurement function:Frequency measurement functionMeasures the intervals between the variations of count values, and calculates the frequency.
Comparison function:Target value match functionDepending on the count direction, sets or resets the output when the counter value reaches the target value.
External output:Comparison result output functionOutputs the result of comparison function.
Other functions:Capture functionAcquires the current count value from the edges of input signals, and stores it in the capture 0 register or capture 1 register. The value of the specified capture register will be overwritten by a new value and the old value will be discarded every time a counter value is captured.
Other functions:Interrupt input functionAvailable (2 points/ch, Max. 8 points/unit)
(Note) The interrupt input function can be used for 8 points per unit and for a maximum of 8 units (max. 64 points) in the whole system. However, the entire scan time slows down as more interrupt programs are used. Minimize the use of interrupt programs.
(Note) The priority order for interrupt inputs is as follows; In a unit, from the smallest interrupt bit. In the whole system, from the smallest unit number.
