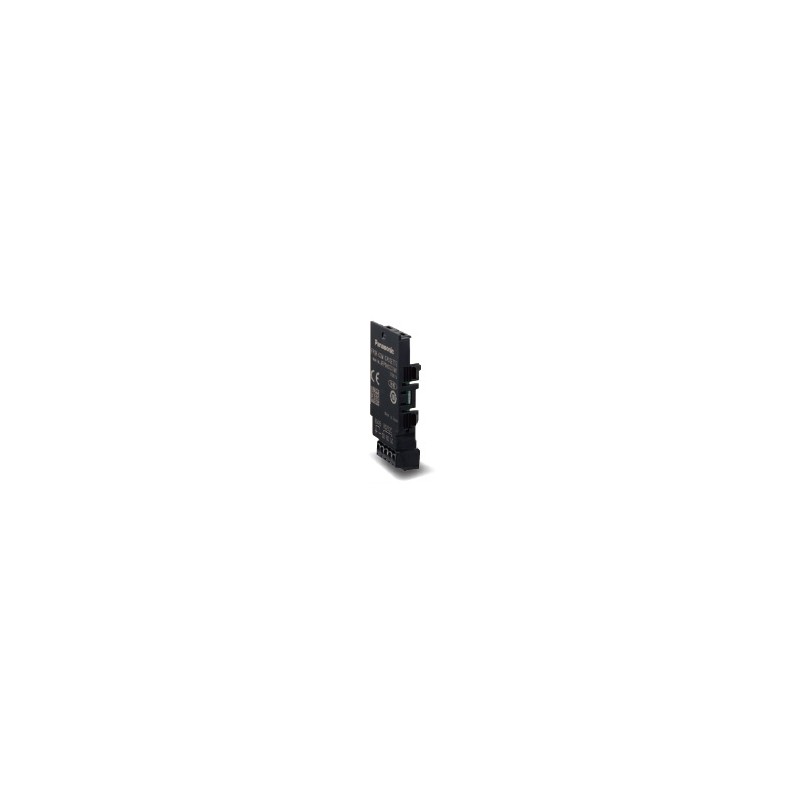

PANASONIC AFP0HCCS1M1 AFP0HCCS1M1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

AFP0HCCS1M1 PANASONIC Communication cassette with 1 x RS485 COM1 (2 pin, 19.2 or 115.2 kbit/s) and 1 x RS232..

Reference: AFP0HCCS1M1

Manufacturer: PANASONIC

Description:

Communication cassette with 1 x RS485 - COM1 (2 pin, 19.2 or 115.2 kbit/s) and 1 x RS232C - COM2 (3 pin)
FP0H Communication Cassette. 1 x RS232C Port + 1 x RS485 Port
AFP0HCCS1M1_FP0H communication cassettes

Categories:

  • PANASONIC > FP0R / FP-SIGMA / FP-X /FP-X0 Programmable controllers - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 280,56 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product NumberAFP0HCCS1M1
Part NumberAFP0HCCS1M1
Product name FP0H communication cassettes

ItemSpecifications
Product NumberAFP0HCCS1M1
Part NumberAFP0HCCS1M1
InterfaceRS-232C 1 channel and RS-485 1 channel
Transmission distance[RS-232C] Max.15 m 49.213 ft
[RS-485] Max. 1,200 m 3,937.008 ft
Communication configuration[RS-232C] 1 : 1 communication
[RS-485] 1 : N communication
Communication speed1,200(Note), 2,400(Note), 4,800, 9,600, 19,200, 38,400, 57,600, 115,200, 230,400 bits/sec.
(Note): System register no. 415 cannot be used to set the baud rate to 1,200 bps. To set the baud rate to 1,200 bps, use the SYS1 instruction. If the baud rate of any of the COM ports is 2,400 bps or lower, F-ROM access will slow down.
Example) F12(ICRD) instruction, P13(ICWT) instruction, etc.
Communication methodHalf-duplex system
Synchronous methodStart-stop synchronization system
Transmission format : Data length7 bits / 8 bits
Transmission format : Paritynone / odd / even
Transmission format : Stop bit1 bit / 2 bits
Transmission format : Start codewith STX / without STX
Transmission format : End codeCR / CR + LF / none / ETX / Time (0 to 100 ms)
Data transmission orderTransmit from bit 0 in character units.
Number of stations[RS-232C] -
[RS-485] Max. 99 units
Net weight10 g approx.
RemarkNotes:
1) The start and end codes can be used only for general-purpose serial communications.
2) The unit No. (station number) can be selected at system register.
3) Sufficient noise tolerance is provided but it is recommended that a user program be created for retransmission. (To improve the reliability of communications when a communication error occurs due to an excessive noise or when the target device cannot receive data temporarily.)
4) When connecting a commercially available device that has an RS-485 interface, please confirm operation using the actual device. In some cases, the number of station units, transmission distance and communication speed vary depending on the connected device.
5) The transmission distance, transmission speed, and number of stations should be within the range of the graph below, depending on each value.

When the transmission speed is 19,200 bits/s, you can set up to 99 stations and up to 1,200 m 3,937.008 ft transmission distance.
