OMRONIndustrial Limit switches / PushbuttonsZCZC-W155 ZC557101D ZCW155 OMRON The end of the race miniature

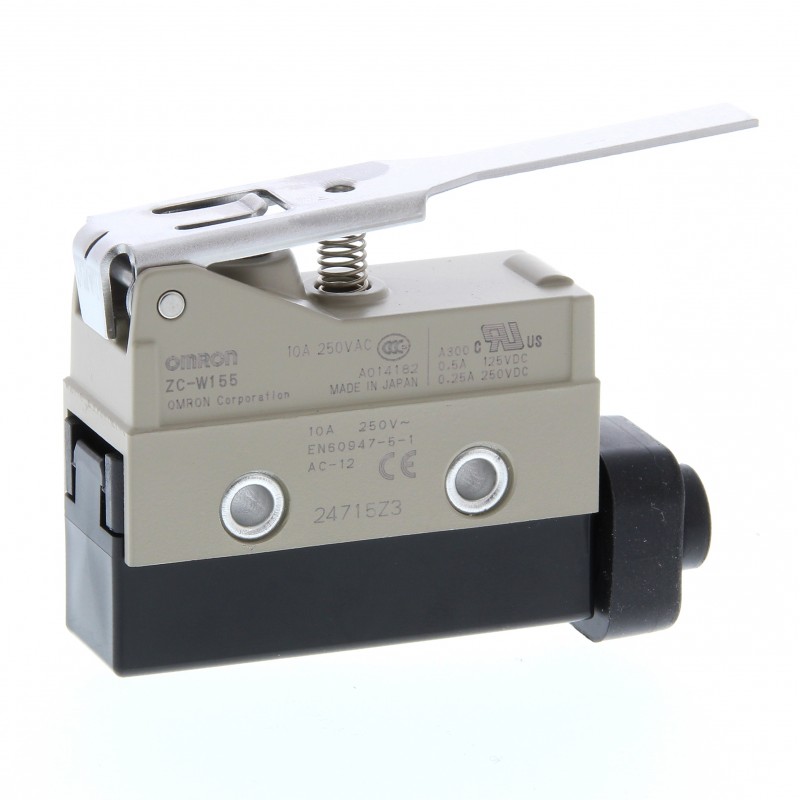

OMRON ZC-W155 ZC557101D ZCW155 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ZC-W155 ZC557101D ZCW155 OMRON The end of the race miniature

Reference: ZC-W155

Code: ZC557101D

Catalog Number: ZCW155

Manufacturer: OMRON

Description:

The end of the race miniature
Enclosed basic switch, hinge lever, SPDT, 15 A

Categories:

  • Sensors > End switch
  • OMRON > Industrial Limit switches / Pushbuttons > ZC

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 470,36 €

Unit Price: 47,036 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material housingMetalDegree of protection (IP)IP67Actuator typeHinge leverActuator detailLever radius 70 mmConnection methodTerminal blockConduit size8.5 - 10.5 mm cable dia.Cable entry directionLeft or RightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication

ETIM for 106351 Sensors (EC000030)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameCoating housing (EF001601)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameAlignment of the control element (EF008793)
Feature valueOther
Feature nameType of control element (EF006976)
Feature valueRotary lever
Feature nameType of interface for safety communication (EF003956)
Feature valueNone
Feature nameType of electric connection (EF003961)
Feature valueOther
Feature nameType of interface (EF006977)
Feature valueNone
Feature nameSwitching function (EF000189)
Feature valueQuick-break switch
Feature nameHousing material (EF001596)
Feature valueMetal
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameSwitching function latching (EF007447)
Feature valueNo
Feature nameWith status indication (EF001602)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameForced opening (EF006694)
Feature valueNo
Feature nameOutput electronic (EF006987)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value1
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameRated operation current Ie at AC-15, 230 V (EF001385)
Feature value10 A
Feature nameRated operation current Ie at DC-13, 125 V (EF007085)
Feature value0.05 A
Feature nameNumber of safety auxiliary contacts (EF006940)
Feature value0
Feature nameRated operation current Ie at DC-13, 24 V (EF007087)
Feature value5 A
Feature nameRated operation current Ie at DC-13, 230 V (EF001386)
Feature value0.03 A
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameRated operation current Ie at AC-15, 125 V (EF007082)
Feature value10 A
Feature nameWidth sensor (EF007094)
Feature value70 mm
Feature nameHeight of sensor (EF007283)
Feature value50.5 mm
Feature nameLength of sensor (EF007334)
Feature value21.7 mm
Feature nameAmbient temperature during operating (EF007515)
Feature value-10 °C

DATASHEET - PDF

Title
Size
Type
ZC-W155 ZCW155 ZC557101D EN_ZC-W155.pdf
1 Mbytes
ZC-W155 ZCW155 ZC557101D zc_55_enclosed_switch_datasheet_en.pdf
932 Kbytes
PDF CATALOGO OMRON AUTOMATION EN
28 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
