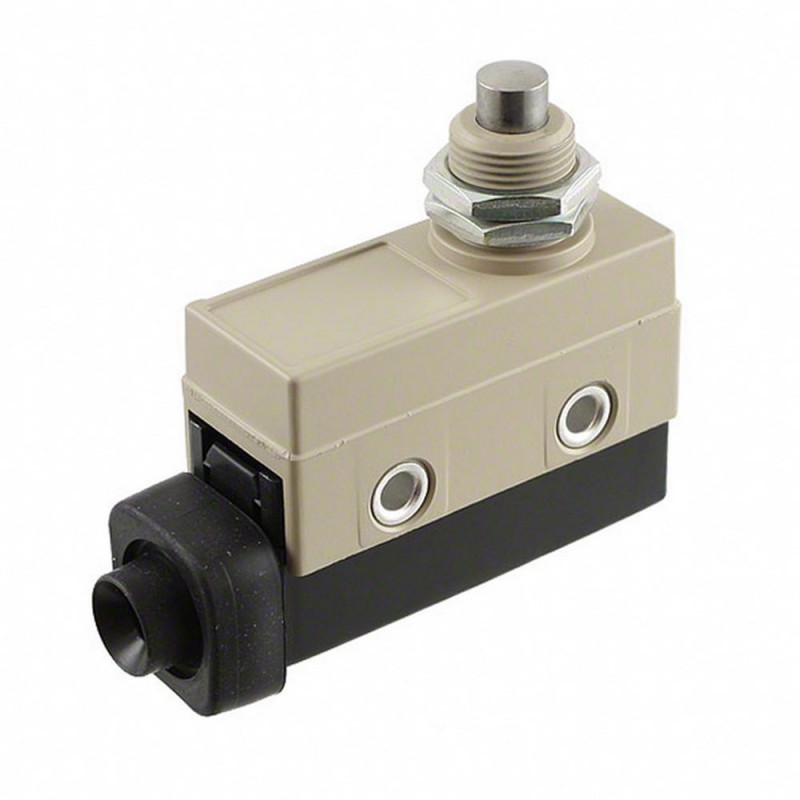

ZC-Q55 ZC552000B ZCQ55 OMRON Plunger panel Mounting High precision
ZC-Q55
ZC552000B
ZCQ55
OMRON
10
Plunger panel Mounting High precision
Enclosed basic switch, panel mount plunger, SPDT, 15A
Sensors > End switch
Industrial Limit switches / Pushbuttons > ZC
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Other |
| Type of control element (EF006976) | Plunger |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Other |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Other |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | No |
| Forced opening (EF006694) | No |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 10 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.05 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 5 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0.03 A |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 10 A |
| Width sensor (EF007094) | 70 mm |
| Height of sensor (EF007283) | 60.2 mm |
| Length of sensor (EF007334) | 21.7 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| ZC-Q55 ZCQ55 ZC552000B EN_ZC-Q55.pdf | 1 Mbytes |
|
| ZC-Q55 ZCQ55 ZC552000B zc_55_enclosed_switch_datasheet_en.pdf | 932 Kbytes |
|
