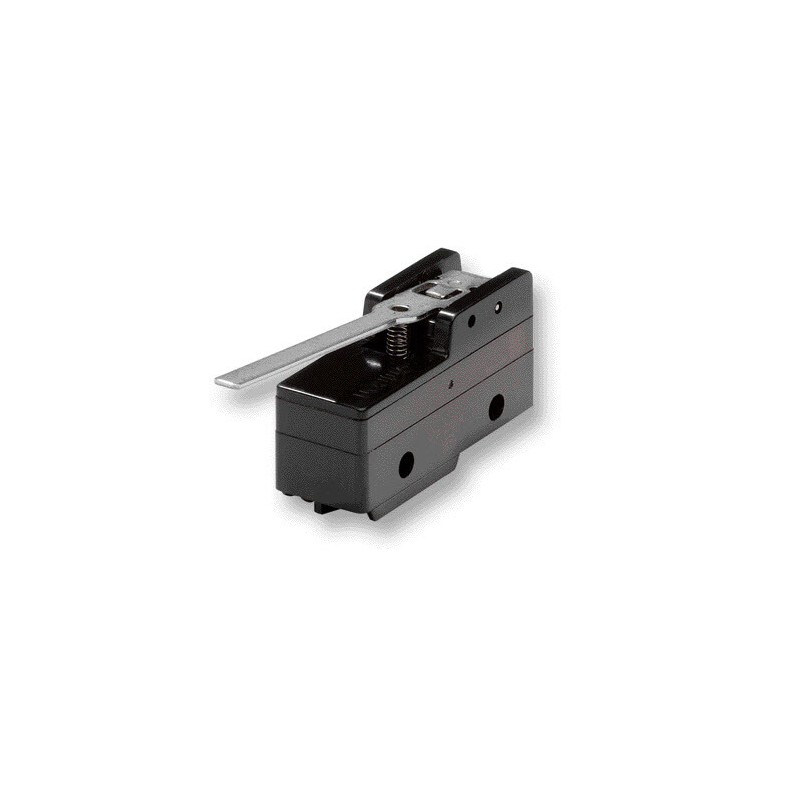

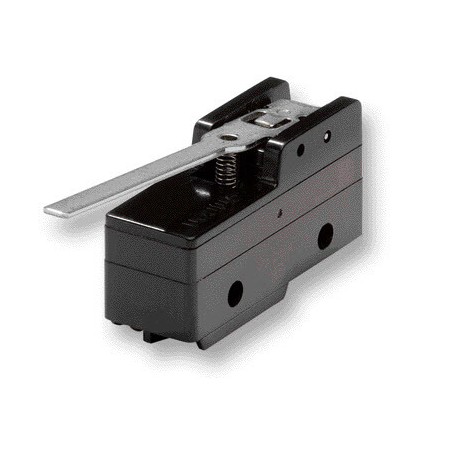

Z-15G Z15G1324F Z15GOMI OMRON End of stroke basic View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

Z-15G Z15G1324F Z15GOMI OMRON End of stroke basic

Z-15G

Z15G1324F

Z15GOMI

OMRON

20

End of stroke basic

General purpose basic switch, pin plunger, SPDT, 15 A, solder terminals

More details


Sensors > End switch

Industrial Limit switches / Pushbuttons > Z15

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total: $345.22
Unit price: $17.26
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Features

Limit switch with basic plastic housing

The Z series of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches. But with the basic plastic housing the basic switches are an ideal solution with best value for money for uncritical environments or when separately encased in subassemblies.

  • Cost efficient basic plastic housing for subassemblies
  • Same electrical and mechanical switching ratings as standard limit switches

Ordering information

Actuator type1

Order code2

Solder terminal

Screw terminal


Pin plunger

Z-15G

Z-15G-B


Short spring plunger

Z-15GD

Z-15GD-B


Leaf spring

Z-15GL

Z-15GL-B


Reverse hinge lever

Z-15GM

Z-15GM-B


Reverse hinge roller lever

Z-15GM2

Z-15GM2-B


Plunger with M12 mounting

Z-15GQ

Z-15GQ-B


Hinge lever

Z-15GW

Z-15GW-B


Hinge roller lever

Z-15GW2

Z-15GW2-B

Specifications

Rated voltage

Non-inductive load

Inductive load

Resistive load

Lamp load

Inductive load

Motor load

NC

NO

NC

NO

NC

NO

NC

NO

125 VAC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

250 VAC

15 A

2.5 A

1.25 A

15 A

3 A

1.5 A

8 VDC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

14 VDC

15 A

3 A

1.5 A

10 A

5 A

2.5 A

30 VDC

6 A

3 A

1.5 A

5 A

5 A

2.5 A

125 VDC

0.5 A3

0.5 A

0.5 A

0.05 A

0.05 A

0.05 A

Durability

Mechanical

10,000,000 operations min.

Electrical

500,000 operations min.

Operating speed

Plunger

0.01 mm to 1 m/s

Operating frequency

Mechanical

240 operations/min

Electrical

20 operations/min

Ambient temperature

Operating

-25 to 80°C (with no icing)

Degree of protection

IP00

Accessories

Terminal covers (protection of electrical contacts against accidental contact of e. g. fingers)

Type

Material

Order code

for soldering terminal models

for screw terminal models



Cover with 5 thinner parts (plastic type) or holes (metal type) as cable exit positions. Protective cover is fixed to basic switch with mounting screws of basic switch.

plastic

AP-A

AP-B

metal

AP1-A

AP1-B


Cover with bottom cable exit

AP-Z

1.Other actuator types are available. For the full range refer to the complete datasheet.

2.Contacts are directly accessible. Additional protective measures are required e.g. order covers from accessories.

3.For switching high currents at high voltages (e.g. 10A at 125VDC) contact your OMRON representative.


ETIM for 382405 Sensors (EC000030)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Construction type housing (EF004008) Cuboid
Degree of protection (NEMA) (EF011959) Other
Coating housing (EF001601) Other
Degree of protection (IP) (EF005474) IP00
Alignment of the control element (EF008793) Other
Type of control element (EF006976) Plunger
Type of interface for safety communication (EF003956) None
Type of electric connection (EF003961) Other
Type of interface (EF006977) None
Switching function (EF000189) Quick-break switch
Housing material (EF001596) Plastic
Explosion safety category for gas (EF003997) None
Switching function latching (EF007447) No
With status indication (EF001602) No
Suitable for safety functions (EF001597) No
Forced opening (EF006694) No
Output electronic (EF006987) No
Number of contacts as change-over contact (EF008257) 1
Number of contacts as normally open contact (EF008256) 0
Rated operation current Ie at AC-15, 230 V (EF001385) 15 A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.5 A
Number of safety auxiliary contacts (EF006940) 0
Rated operation current Ie at DC-13, 24 V (EF007087) 6 A
Rated operation current Ie at DC-13, 230 V (EF001386) 0.25 A
Number of contacts as normally closed contact (EF008255) 0
Rated operation current Ie at AC-15, 125 V (EF007082) 15 A
Width sensor (EF007094) 49.2 mm
Height of sensor (EF007283) 22.3 mm
Length of sensor (EF007334) 17.45 mm
Ambient temperature during operating (EF007515) -25 °C
