OMRONIndustrial Limit switches / PushbuttonsZ15Z-15G-B Z15G1318A Z15GBOMI OMRON End of stroke basic

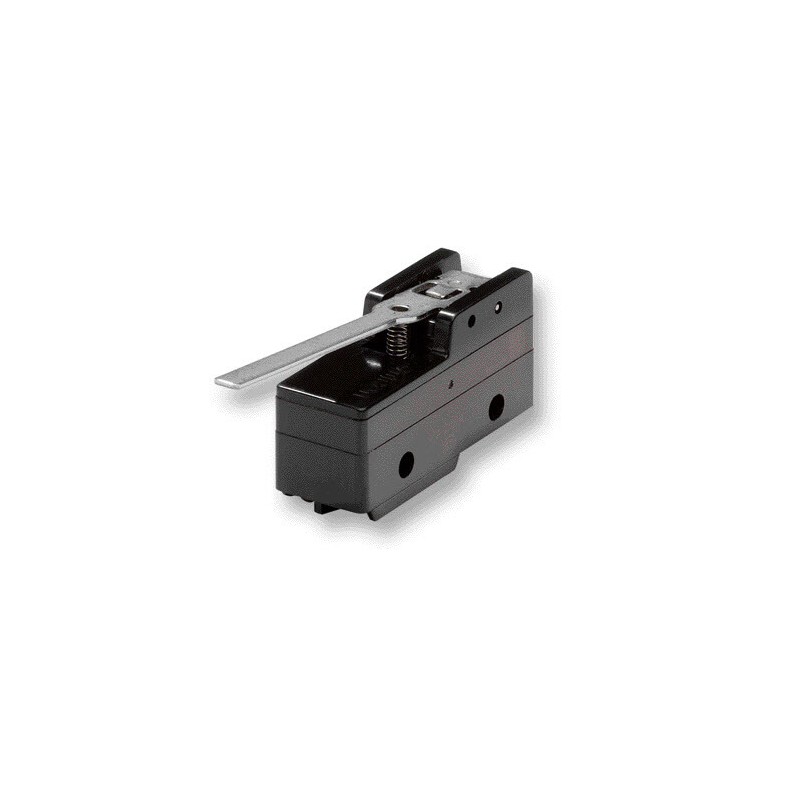

OMRON Z-15G-B Z15G1318A Z15GBOMI - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

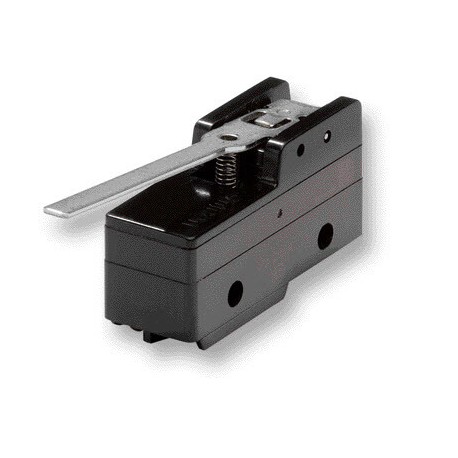

Z-15G-B Z15G1318A Z15GBOMI OMRON End of stroke basic

Reference: Z-15G-B

Code: Z15G1318A

Catalog Number: Z15GBOMI

Manufacturer: OMRON

Description:

End of stroke basic
General purpose basic switch, pin plunger, SPDT, 15 A, screw terminals

Categories:

  • Sensors > End switch
  • OMRON > Industrial Limit switches / Pushbuttons > Z15

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 326,99 €

Unit Price: 16,3495 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

Limit switch with basic plastic housing

The Z series of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches. But with the basic plastic housing the basic switches are an ideal solution with best value for money for uncritical environments or when separately encased in subassemblies.

  • Cost efficient basic plastic housing for subassemblies
  • Same electrical and mechanical switching ratings as standard limit switches

Ordering information

Actuator type1

Order code2

Solder terminal

Screw terminal


Pin plunger

Z-15G

Z-15G-B


Short spring plunger

Z-15GD

Z-15GD-B


Leaf spring

Z-15GL

Z-15GL-B


Reverse hinge lever

Z-15GM

Z-15GM-B


Reverse hinge roller lever

Z-15GM2

Z-15GM2-B


Plunger with M12 mounting

Z-15GQ

Z-15GQ-B


Hinge lever

Z-15GW

Z-15GW-B


Hinge roller lever

Z-15GW2

Z-15GW2-B

Specifications

Rated voltage

Non-inductive load

Inductive load

Resistive load

Lamp load

Inductive load

Motor load

NC

NO

NC

NO

NC

NO

NC

NO

125 VAC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

250 VAC

15 A

2.5 A

1.25 A

15 A

3 A

1.5 A

8 VDC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

14 VDC

15 A

3 A

1.5 A

10 A

5 A

2.5 A

30 VDC

6 A

3 A

1.5 A

5 A

5 A

2.5 A

125 VDC

0.5 A3

0.5 A

0.5 A

0.05 A

0.05 A

0.05 A

Durability

Mechanical

10,000,000 operations min.

Electrical

500,000 operations min.

Operating speed

Plunger

0.01 mm to 1 m/s

Operating frequency

Mechanical

240 operations/min

Electrical

20 operations/min

Ambient temperature

Operating

-25 to 80°C (with no icing)

Degree of protection

IP00

Accessories

Terminal covers (protection of electrical contacts against accidental contact of e. g. fingers)

Type

Material

Order code

for soldering terminal models

for screw terminal models



Cover with 5 thinner parts (plastic type) or holes (metal type) as cable exit positions. Protective cover is fixed to basic switch with mounting screws of basic switch.

plastic

AP-A

AP-B

metal

AP1-A

AP1-B


Cover with bottom cable exit

AP-Z

1.Other actuator types are available. For the full range refer to the complete datasheet.

2.Contacts are directly accessible. Additional protective measures are required e.g. order covers from accessories.

3.For switching high currents at high voltages (e.g. 10A at 125VDC) contact your OMRON representative.

ETIM for 382399 Sensors (EC000030)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameCoating housing (EF001601)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP00
Feature nameAlignment of the control element (EF008793)
Feature valueOther
Feature nameType of control element (EF006976)
Feature valuePlunger
Feature nameType of interface for safety communication (EF003956)
Feature valueNone
Feature nameType of electric connection (EF003961)
Feature valueOther
Feature nameType of interface (EF006977)
Feature valueNone
Feature nameSwitching function (EF000189)
Feature valueQuick-break switch
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameSwitching function latching (EF007447)
Feature valueNo
Feature nameWith status indication (EF001602)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameForced opening (EF006694)
Feature valueNo
Feature nameOutput electronic (EF006987)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value1
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameRated operation current Ie at AC-15, 230 V (EF001385)
Feature value15 A
Feature nameRated operation current Ie at DC-13, 125 V (EF007085)
Feature value0.5 A
Feature nameNumber of safety auxiliary contacts (EF006940)
Feature value0
Feature nameRated operation current Ie at DC-13, 24 V (EF007087)
Feature value6 A
Feature nameRated operation current Ie at DC-13, 230 V (EF001386)
Feature value0.25 A
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameRated operation current Ie at AC-15, 125 V (EF007082)
Feature value15 A
Feature nameWidth sensor (EF007094)
Feature value49.2 mm
Feature nameHeight of sensor (EF007283)
Feature value25.1 mm
Feature nameLength of sensor (EF007334)
Feature value17.45 mm
Feature nameAmbient temperature during operating (EF007515)
Feature value-25 °C

DATASHEET - PDF

Title
Size
Type
Z-15G-B Z15GBOMI Z15G1318A e96e_xs_f_w_c_y92e_sensor_connectors_m8_and_m12_datasheet_en.pdf
2 Mbytes
Z-15G-B Z15GBOMI Z15G1318A z_series_general_purpose_basic_switch_datasheet_en.pdf
4 Mbytes
PDF CATALOGO OMRON AUTOMATION EN
28 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
