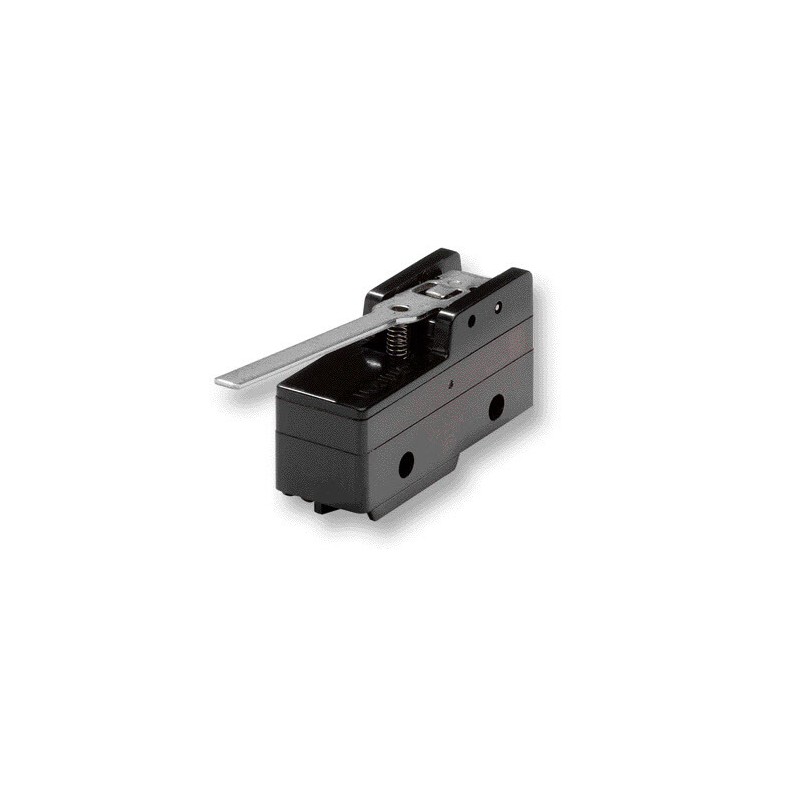

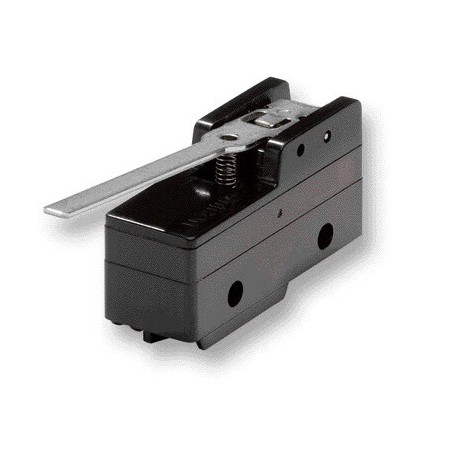

Z-01HD-B Z01H3001M Z01HDB OMRON THE END OF THE RACE BASICS View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

Z-01HD-B Z01H3001M Z01HDB OMRON THE END OF THE RACE BASICS

Z-01HD-B

Z01H3001M

Z01HDB

OMRON

20

THE END OF THE RACE BASICS

BASIC END OF RACE

Basic switch, general purpose, Snap action, Self-reset type, Single-Pole, Double-Throw type, SPDT, Screw terminal (M4)

More details


Sensors > End switch

Industrial Limit switches / Pushbuttons > Other Industrial Limit switches

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total: $713.24
Unit price: $35.66
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


  • Cost efficient basic plastic housing for subassemblies
  • Same electrical and mechanical switching ratings as standard limit switches

Specifications & ordering info

Ordering information

Actuator type1

Order code2

Solder terminal

Screw terminal


Pin plunger

Z-15G

Z-15G-B


Short spring plunger

Z-15GD

Z-15GD-B


Leaf spring

Z-15GL

Z-15GL-B


Reverse hinge lever

Z-15GM

Z-15GM-B


Reverse hinge roller lever

Z-15GM2

Z-15GM2-B


Plunger with M12 mounting

Z-15GQ

Z-15GQ-B


Hinge lever

Z-15GW

Z-15GW-B


Hinge roller lever

Z-15GW2

Z-15GW2-B

Specifications

Rated voltage

Non-inductive load

Inductive load

Resistive load

Lamp load

Inductive load

Motor load

NC

NO

NC

NO

NC

NO

NC

NO

125 VAC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

250 VAC

15 A

2.5 A

1.25 A

15 A

3 A

1.5 A

8 VDC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

14 VDC

15 A

3 A

1.5 A

10 A

5 A

2.5 A

30 VDC

6 A

3 A

1.5 A

5 A

5 A

2.5 A

125 VDC

0.5 A3

0.5 A

0.5 A

0.05 A

0.05 A

0.05 A

Durability

Mechanical

10,000,000 operations min.

Electrical

500,000 operations min.

Operating speed

Plunger

0.01 mm to 1 m/s

Operating frequency

Mechanical

240 operations/min

Electrical

20 operations/min

Ambient temperature

Operating

-25 to 80°C (with no icing)

Degree of protection

IP00

Accessories

Terminal covers (protection of electrical contacts against accidental contact of e. g. fingers)

Type

Material

Order code

for soldering terminal models

for screw terminal models



Cover with 5 thinner parts (plastic type) or holes (metal type) as cable exit positions. Protective cover is fixed to basic switch with mounting screws of basic switch.

plastic

AP-A

AP-B

metal

AP1-A

AP1-B


Cover with bottom cable exit

AP-Z

1.Other actuator types are available. For the full range refer to the complete datasheet.

2.Contacts are directly accessible. Additional protective measures are required e.g. order covers from accessories.

3.For switching high currents at high voltages (e.g. 10A at 125VDC) contact your OMRON representative.


ETIM for 154947 Sensors (EC000030)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Construction type housing (EF004008) Cuboid
Degree of protection (NEMA) (EF011959) Other
Coating housing (EF001601) Other
Degree of protection (IP) (EF005474) IP00
Type of interface for safety communication (EF003956) None
Type of electric connection (EF003961) Other
Type of interface (EF006977) None
Switching function (EF000189) Quick-break switch
Housing material (EF001596) Plastic
Explosion safety category for gas (EF003997) None
Switching function latching (EF007447) No
With status indication (EF001602) No
Suitable for safety functions (EF001597) No
Forced opening (EF006694) No
Output electronic (EF006987) No
Number of contacts as change-over contact (EF008257) 1
Number of contacts as normally open contact (EF008256) 0
Number of safety auxiliary contacts (EF006940) 0
Rated operation current Ie at DC-13, 24 V (EF007087) 0.1 A
Number of contacts as normally closed contact (EF008255) 0
Rated operation current Ie at AC-15, 125 V (EF007082) 0.1 A
Ambient temperature during operating (EF007515) -25 °C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGO OMRON AUTOMATION EN.pdf 28 Mbytes
PDF CATALOG OMRON 2024 EN.pdf 25 Mbytes
Z-01HD-B Z01HDB Z01H3001M EN_Z-15ESR.pdf 4 Mbytes Z-01HD-B Z01HDB Z01H3001M EN_Z-15ESR.pdf
Z-01HD-B Z01HDB Z01H3001M z_series_general_purpose_basic_switch_datasheet_en.pdf 4 Mbytes Z-01HD-B Z01HDB Z01H3001M EN_Z-15ESR.pdf
