View larger Images are for illustrative purposes only. Please refer to data sheet for details.

YK-EthernetIP SP AA043777C YKETHERNETIPSP OMRON Robot SCARA: Spare Part Ethernet/IP

Name: YK-EthernetIP SP AA043777C YKETHERNETIPSP OMRON Robot SCARA: Spare Part Ethernet/IP
Brand: OMRON
SKU: OMRAA043777C
Availability: Discontinued

0/5 - 0 Opiniones

Reference: YK-EthernetIP_SP

Code: AA043777C

Catalog Number: YKETHERNETIPSP

Manufacturer: OMRON

Description:

Robot SCARA: Spare Part Ethernet/IP

Spare Part Ethernet/IP para RCX340

More details

Categories:
Sensors > Accessories/spare parts for robotic arm

Home > OMRON

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products

Best sellers

▲

More info

▲

Features

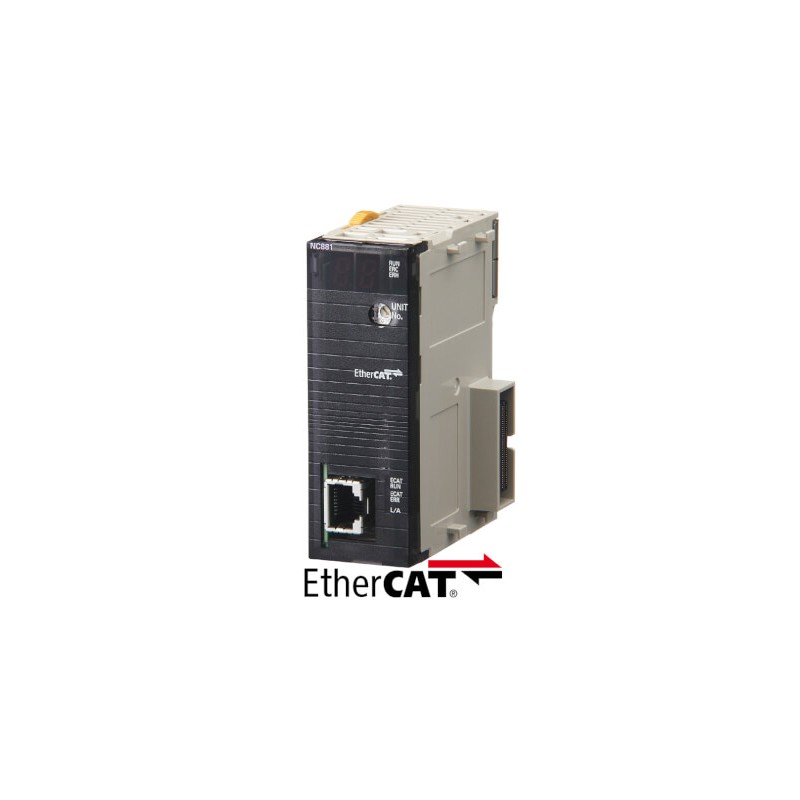

Multi-axis point-to-point positioning controller over EtherCAT

In the minimum of space you can have a complete and powerful position control system when combining the Omron CJ2 PLC, the CJ1W-NC EtherCAT unit and the G5 servo drives with EtherCAT built-in.

Position control units with 2, 4, 8 or 16 axes
NC_82 models support up to 64 additional nodes: inverters, vision systems and distributed I/Os
Linear and circular interpolation
Linear and infinite axes management
Programming languages: ladder and function blocks
Certified PLCopen motion control function blocks
The unit can perform various operation sequences in the memory, operation data
CX-Programmer software for unit setup, EtherCAT network configuration and PLC programming

Ordering information

Position controller unit

Name	Order code
Position controller unit - EtherCAT - 16 axes + 64 nodes for remote I/O	CJ1W-NCF82
Position controller unit - EtherCAT - 8 axes + 64 nodes for remote I/O	CJ1W-NC882
Position controller unit - EtherCAT - 4 axes + 64 nodes for remote I/O	CJ1W-NC482
Position controller unit - EtherCAT - 16 axes	CJ1W-NCF81
Position controller unit - EtherCAT - 8 axes	CJ1W-NC881
Position controller unit - EtherCAT - 4 axes	CJ1W-NC481
Position controller unit - EtherCAT - 2 axes	CJ1W-NC281

EtherCAT related devices

Servo system and frequency inverter

Name	Order code
Accurax G5 servo drive EtherCAT built-in	R88D-KN___-ECT
		MX2 inverter with EtherCAT option board	Frequency inverter	3G3MX2-A_
		MX2 inverter with EtherCAT option board	EtherCAT option board	3G3AX-MX2-ECT

Note:Refer to servo system and frequency inverter sections for detailed specs and ordering information.

GX-Series I/O Blocks

Name		Order code
16 NPN inputs	24 VDC, 6 mA, 1-wire connection, expandable	GX-ID1611
			16 PNP inputs	24 VDC, 6 mA, 1-wire connection, expandable	GX-ID1621
			16 NPN outputs	24 VDC, 500 mA, 1-wire connection, expandable	GX-OD1611
			16 PNP outputs	24 VDC, 500 mA, 1-wire connection, expandable	GX-OD1621
			8 inputs and 8 outputs, NPN	24 VDC, 6 mA input, 500 mA output, 1-wire connection	GX-MD1611
8 inputs and 8 outputs, PNP	24 VDC, 6 mA input, 500 mA output, 1-wire connection	GX-MD1621
16 NPN inputs	24 VDC, 6 mA, 3-wire connection	GX-ID1612
16 PNP inputs	24 VDC, 6 mA, 3-wire connection	GX-ID1622
16 NPN outputs	24 VDC, 500 mA, 3-wire connection	GX-OD1612
16 PNP outputs	24 VDC, 500 mA, 3-wire connection	GX-OD1622
8 inputs and 8 outputs, NPN	24 VDC, 6 mA input, 500 mA output, 3-wire connection	GX-MD1612
8 inputs and 8 outputs, PNP	24 VDC, 6 mA input, 500 mA output, 3-wire connection	GX-MD1622
16 relay outputs	250 VAC, 2 A,1-wire connection, expandable	GX-OC1601
4 analog inputs, current/voltage	±10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	GX-AD0471
2 analog outputs, current/voltage	±10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	GX-DA0271
2 encoder open collector inputs	500 kHz Open collector input	GX-EC0211
2 encoder line-driver inputs	4 MHz Line driver input	GX-EC0241

Note:Refer to Automation systems catalogue for detailed specs and ordering information.

Vision system

Name	Specification	Order code
Vision system with EtherCAT interface	NPN	FZM1-350-ECT
Vision system with EtherCAT interface	PNP	FZM1-355-ECT

Note:Refer to vision system documentation for detailed specs and ordering information.

Computer software

Specifications	Order code
CX-One version 4 or higher	CX-One
CX-Programmer version 9.12 or higher	CX-Programmer

Datasheet - PDF

▲

Title:	Size:	Type:
PDF CATALOG OMRON 2024 EN.pdf	25 Mbytes
