Y92S-32 Y92S7017A Y92S32 OMRON Accessory Temperature Controller
Y92S-32
Y92S7017A
Y92S32
OMRON
50
Accessory Temperature Controller
Relays > Temperature monitoring relay
Temperature and Processes > Accessories Temperature and Processes
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info

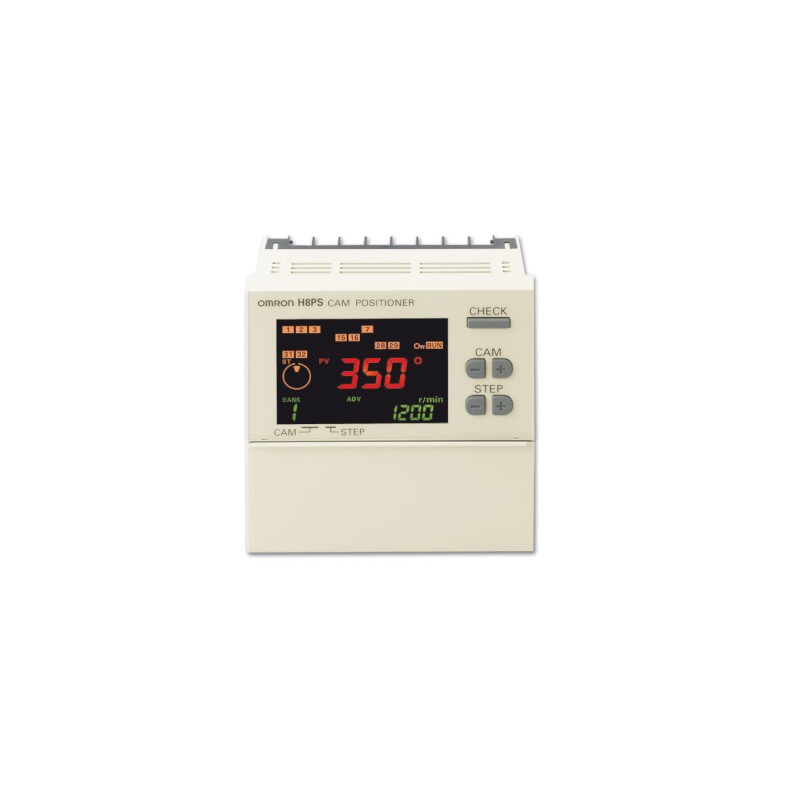

▲Compact, easy-to-use cam positioner
The H8PS provides high-speed operation at 1,600 r/min and high-precision settings to 0.5° ensuring widespread application. H8PS features a highly visible display with back-lit negative transmissive LCD. Advance angle compensation function compensates for output delays.
- H 96 to 121.2 x W 96 x D 60.6 to 67.5 mm
- Front-panel / DIN-rail
- 24VDC
- 8-, 16- and 32-outputs
- NPN/PNP 100mA at 30VDC
Ordering information
Number of outputs | Mounting method | Output configuration | Bank function | Size in mm (H×W×D) | Order code |
|---|---|---|---|---|---|
8-outputs | Flush-mounting | NPN transistor output | No | 96×96×67.5 | H8PS-8B |
PNP transistor output | H8PS-8BP | ||||
Front-mounting/DIN-rail mounting | NPN transistor output | 96×96×60.6 | H8PS-8BF | ||
PNP transistor output | H8PS-8BFP | ||||
16-outputs | Flush-mounting | NPN transistor output | Yes | 96×96×67.5 | H8PS-16B |
PNP transistor output | H8PS-16BP | ||||
Front-mounting/DIN-rail mounting | NPN transistor output | 121.2×96×60.6 | H8PS-16BF | ||
PNP transistor output | H8PS-16BFP | ||||
32-outputs | Flush-mounting | NPN transistor output | 96×96×67.5 | H8PS-32B | |
PNP transistor output | H8PS-32BP | ||||
Front-mounting/DIN-rail mounting | NPN transistor output | 121.2×96×60.6 | H8PS-32BF | ||
PNP transistor output | H8PS-32BFP |
Encoders
Type | Resolution | Cable length | Order code |
|---|---|---|---|
Economy | 256 | 2 m | E6CP-AG5C-C 256 2M |
Standard | 256 | 1 m | E6C3-AG5C-C 256 1M |
2 m | E6C3-AG5C-C 256 2M | ||
360 | E6C3-AG5C-C 360 2M | ||
720 | E6C3-AG5C-C 720 2M | ||
Rigid | 256 | 2 m | E6F-AG5C-C 256 2M |
360 | E6F-AG5C-C 360 2M | ||
720 | E6F-AG5C-C 720 2M |
Accessories
Name | Specification | Order code |
|---|---|---|
Discrete wire output cable | 2 m | Y92S-41-200 |
Connector-type output cable | 2 m | E5ZE-CBL200 |
USB cable | A miniB, 2 m | Y92S-40 |
Parallel input adapter | Two units can operate in parallel | Y92C-30 |
Protective cover | Y92A-96B | |
Watertight cover | Y92A-96N | |
DIN-rail mounting base | Y92F-91 | |
Note:CD-ROM support software H8PS-SOFT-V1 available on request. Please contact your Omron representative.
Encoder accessories
Name | Specification | Order code |
|---|---|---|
Shaft coupling for the E6CP | Axis: 6 mm dia. | E69-C06B |
Shaft coupling for the E6C3 | Axis: 8 mm dia. | E69-C08B |
Shaft coupling for the E6F | Axis: 10 mm dia. | E69-C10B |
Extension cable | 5 m (same for E6CP, E6C3, and E6F) | E69-DF5 |
Specifications
Rated supply voltage | 24 VDC | ||
Inputs | Encoder input | 8-output models: None; 16-/32-output models: Bank inputs 1/2/4, origin input, start input | |
External inputs | Input signals | 8-output models: None; 16-/32-output models: Bank inputs 1/2/4, origin input, start input | |
Input type | No voltage inputs: ON impedance: 1 kΩ max. (leakage current: Approx. 2 mA at 0 Ω) ON residual voltage: 2 V max., OFF impedance: 100 kΩ min., applied voltage: 30 VDC max. Minimum input signal width: 20 ms | ||
Number of banks | 8 banks (for 16-/32-output models only) | ||
Display method | 7-segment, negative transmissive LCD (main display: 11 mm (red), sub-display: 5.5 mm (green)) | ||
Memory backup method | EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min. | ||
Ambient operating temperature | −10 to 55°C (with no icing or condensation) | ||
Storage temperature | −25 to 65°C (with no icing or condensation) | ||
Ambient humidity | 25 to 85% | ||
Degree of protection | Panel surface: IP40, rear case: IP20 | ||
Case color | Light grey (Munsell 5Y7/1) | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| Y92S-32 Y92S32 Y92S7017A m075_h8ps_cam_positioner_datasheet_en_en.pdf | 2 Mbytes |
|
