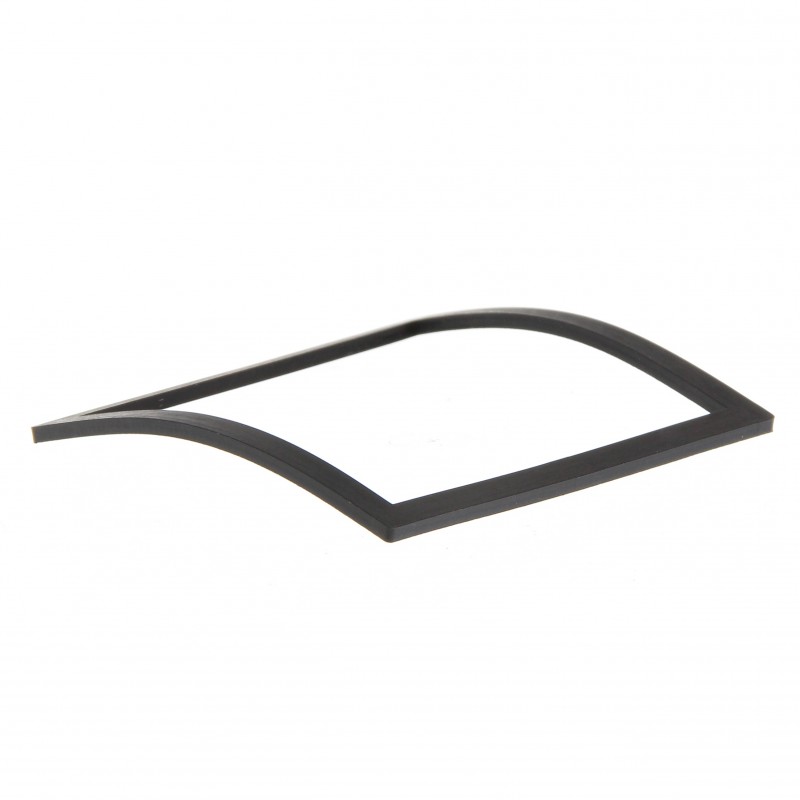

Y92S-29 Y92S7016C Y92S29 OMRON Rubber gasket
Y92S-29
Y92S7016C
Y92S29
OMRON
25
Rubber gasket
Waterproof packing for use with 48x48mm devices and Y92F30 flush mounting adapter
Relays > Accessories/spare parts for switching relay
Timers > Accessories Timers
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Ordering information
Output type | Supply voltage | Functions | External connection | Size in mm (H×W×D) | Inputs | Order code |
|---|---|---|---|---|---|---|
Contact output | 100 to 240 VAC | A: Signal ON-delay toff: Twin timer OFF start | Screw terminals | 48×48×84 | Signal, Reset, Gate (NPN/PNP inputs) | H5CX-A-N |
12 to 24 VDC/24 VAC | 48×48×65 | H5CX-AD-N | ||||
Transistor output | 100 to 240 VAC | 48×48×84 | H5CX-AS-N | |||
12 to 24 VDC/24 VAC | 48×48×65 | H5CX-ASD-N | ||||
Contact output | 100 to 240 VAC | 11-pin socket | 48×48×69.7 | Signal, Reset, Gate (NPN/PNP inputs) | H5CX-A11-N | |
12 to 24 VDC/24 VAC | H5CX-A11D-N | |||||
Transistor output | 12 to 24 VDC/24 VAC | H5CX-A11SD-N | ||||
Contact output | 100 to 240 VAC | 8-pin socket | 48×48×69.7 | Signal, Reset (NPN inputs) | H5CX-L8-N | |
12 to 24 VDC/24 VAC | H5CX-L8D-N | |||||
Transistor output | 12 to 24 VDC/24 VAC | H5CX-L8SD-N | ||||
| Contact output Models with instantaneous contact outputs | 100 to 240 VAC | A-2: Power ON-delay 1 toff: Twin timer OFF start 1 | − | H5CX-L8E-N | ||
12 to 24 VDC/24 VAC | H5CX-L8ED-N | |||||
Transistor output | 12 to 24 VDC | A: Signal ON-delay 1 | Screw terminals | 48×48×65 | Signal, Reset, Gate (NPN/PNP inputs) | H5CX-BWSD-N |
Accessories
Name | Order code | |
|---|---|---|
Flush-mounting adapter | Y92F-30 | |
Waterproof packing | Y92S-29 | |
Front-connecting socket | 8-pin, finger safe type | P2CF-08-E |
11-pin, finger safe type | P2CF-11-E | |
Back-connecting socket | 8-pin | P3G-08 |
11-pin | P3GA-11 | |
Hard cover | Y92A-48 | |
Soft cover | Y92A-48F1 | |
Front panels | Light gray | Y92P-CXT4G |
White | Y92P-CXT4S | |
Specifications
Item | H5CX-A_ | H5CX-A11_ | H5CX-L8_ |
|---|---|---|---|
Display | 7-segment, negative transmissive LCD | ||
Present value: 12 mm high characters | |||
red, orange or green (programmable) | red | ||
Set value: 6 mm high characters, green | |||
Digits | 4 digits | ||
Total time range | 0.001 s to 9,999 h (configurable) | ||
Timer mode | Elapsed time (Up), remaining time (Down) (selectable) | ||
Input signals | Signal, reset, gate | Signal, reset | |
Key protection | Yes | ||
Memory backup | EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min. | ||
Ambient temperature | Operating: −10 to 55°C (no icing or condensation), side-by-side mounting: −10 to 50°C | ||
Case color | Black (N1.5) | ||
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| Y92S-29 Y92S29 Y92S7016C ES_H5CX-A-N.pdf | 7 Mbytes |
|
