OMRONCountersACCESSORIES COUNTERSY92F-76 H7E 9002M Y92F76 OMRON Adapter for panel mounting of the H7E

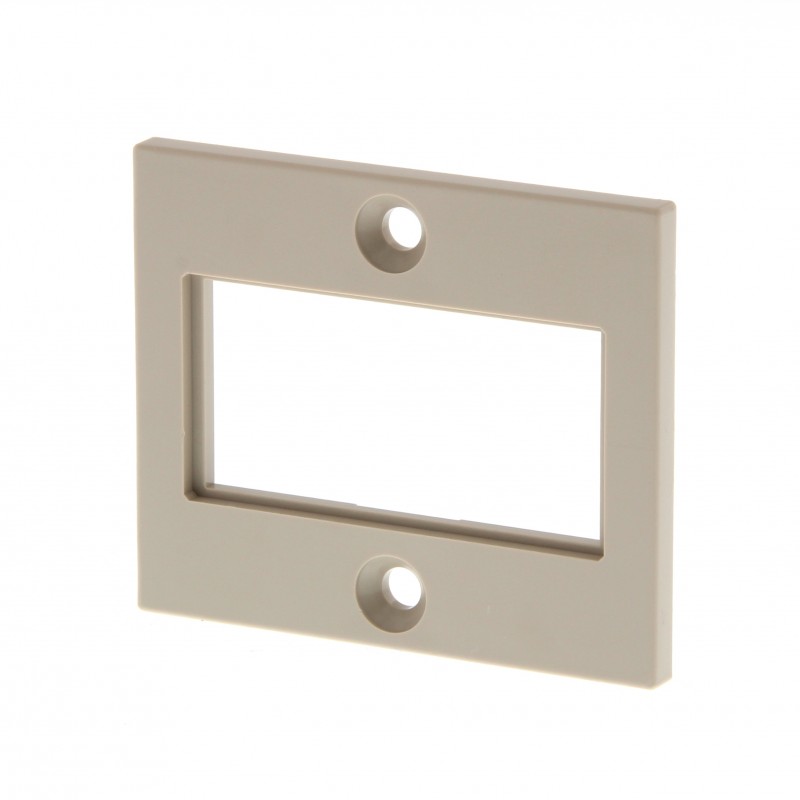

OMRON Y92F-76 H7E 9002M Y92F76 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

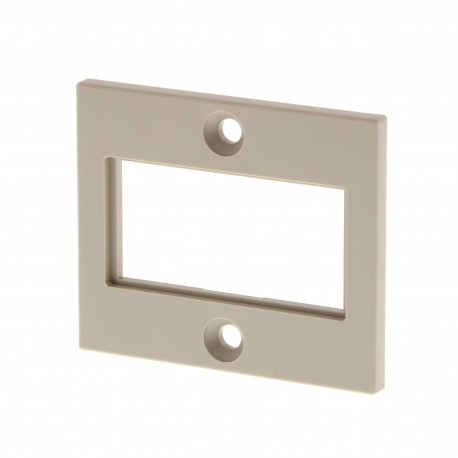

Y92F-76 H7E 9002M Y92F76 OMRON Adapter for panel mounting of the H7E

Reference: Y92F-76

Code: H7E 9002M

Catalog Number: Y92F76

Manufacturer: OMRON

Description:

Adapter for panel mounting of the H7E
H7E panel mount adapter
Flush mounting adapter for H7E, panel cut-out 52.5x27.5mm

Categories:

  • Devices for distribution board-/surface mounting > Accessories/spare parts for measuring instruments for installation
  • OMRON > Counters > Accessories Counters

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 6,70 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Self-powered Counter H7EC
Subminiature Totalizing Counter
Requires No External Power Supply
DIN-sized 48 x 24 mm
Wire-wrapterminalandscrewterminaltypes available.
AC/DC voltage, DC voltage, and No-voltage input types available.
Panel adapters for existing cutouts available see
Accessories section.
Conforms to EMC standards.
H7EC-FBV conforms to EN61010-1/IEC1010-1. R
Approved by UL.
Ordering Information
Totalizing Counters
Operating modeUp type
Display LCD digital (character height: 6.7 mm)
ResetExternal (electrical) reset External/Manual reset
Number of digits 7 6
Count inputAC/DC voltage input
DC voltage inputNo-voltage input
(contact/solid-state)
DC voltage input No-voltage input
(contact/solid-state)
Max. counting speed (see note)
Terminals Wire- wrap
20 cps 1 kcps 30 cps1 kcps30 cps1 kcps 30 cps 1 kcps 30 cps
---H7EC-VH7EC-VLH7EC H7EC-LH7EC-VM H7EC-VLMH7EC-MH7EC-LM
Screw H7EC-FBV H7EC-BV H7EC-BVL H7EC-B H7EC-BL H7EC-BVM H7EC-BVLM H7EC-BM H7EC-BLM
Approved standards UL
Note: For details about matching the counting speed with the appropriate input device, see the Precautions section.
1

ETIM for 119559 Modular devices for distribution board/surface mounting (EC002295)

Feature nameType of accessory/spare part (EF000215)
Feature valueInstallation mounting set
Feature nameAccessory (EF013236)
Feature valueYes
Feature nameSpare part (EF013237)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
PDF CATALOGO OMRON AUTOMATION EN
19 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
