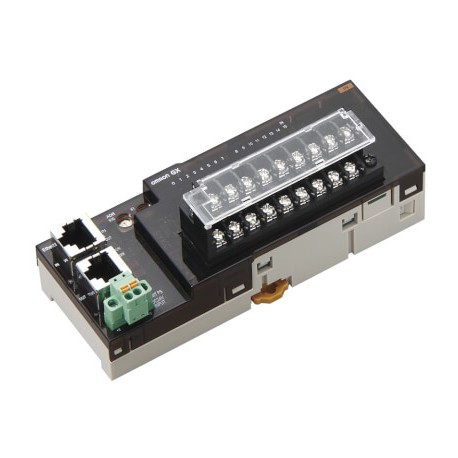

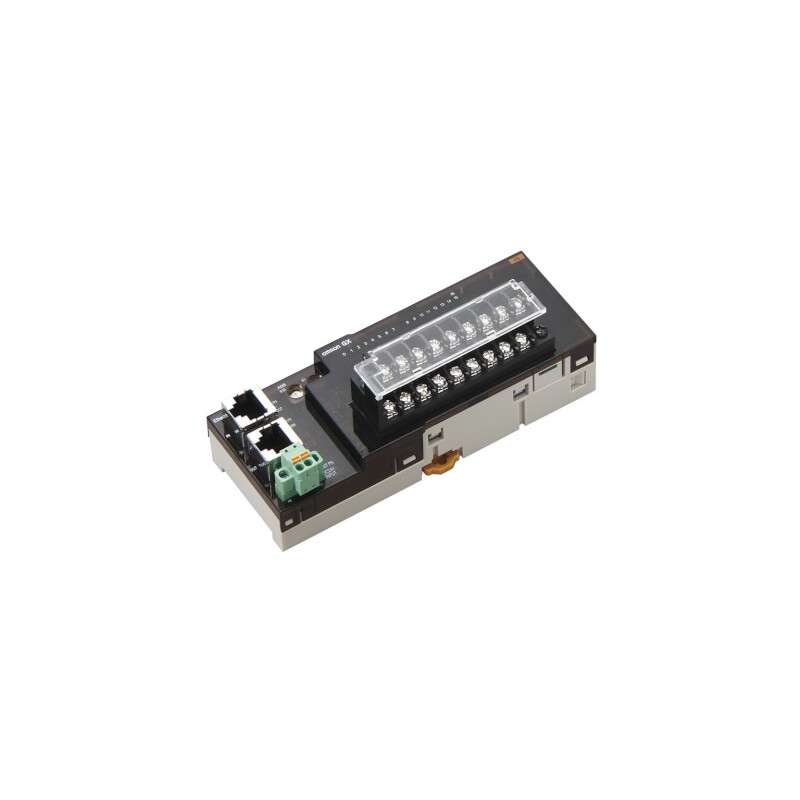

XWT-OD08 XWT 7005M 226543 OMRON Expansion Module 8 NPN Outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

XWT-OD08 XWT 7005M 226543 OMRON Expansion Module 8 NPN Outputs

XWT-OD08

XWT 7005M

XWTOD08CHN

OMRON

Available Ship on today

Module Expansion 8 Outputs NPN

Expansion Module 8 NPN Outputs

More details


Remote I/O > Other Remote I/O

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total price: $382.71
Unit price: $382.71

Quantity Price
1+$382.71
2+$365.28
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Features

When speed counts: EtherCAT I/O

EtherCAT is an extremely fast industrial automation network, which uses standard Ethernet cabling. It makes very efficient use of the standard Ethernet transmission frame, with each node accessing the entire frame on the fly. This reduces the delay in each slave to microsecond level. Its deterministic nature makes EtherCAT extremely suitable for motion control. Omron provides PLC-based as well as stand-alone motion control solutions based on EtherCAT. The GX-series I/O units provide the basic in- and outputs for such systems, including high-speed encoder inputs which can feed position information into the controller.

  • Compact size IP20 housing
  • Expandable digital I/Os
  • Detachable I/O terminal blocks
  • Selectable high-speed input response time

Ordering information

Unit Type

Specification

Size in mm (H×W×D)

Remarks

Order code

16-point NPN input unit

24 VDC, 6 mA per point

52×135×57

Expandable with one XWT unit

GX-ID1611

16-point NPN input unit

24 VDC, 6 mA per point

52×200×69

3-tier connection for direct sensor wiring

GX-ID1612

16-point PNP input unit

24 VDC, 6 mA per point

52×135×57

Expandable with one XWT unit

GX-ID1621

16-point PNP input unit

24 VDC, 6 mA per point

52×200×69

3-tier connection for direct sensor wiring

GX-ID1622

16-point relay output unit

2 A per point, max. 8 A per common

52×160×58

with easy-to-replace relays, expandable with one XWT unit

GX-OC1601

16-point NPN output unit

24 VDC, 0.5 A per point

52×135×57

Expandable with one XWT unit

GX-OD1611

16-point NPN output unit

24 VDC, 0.5 A per point

52×200×69

3-tier connection for direct sensor wiring

GX-OD1612

16-point PNP output unit

24 VDC, 0.5 A per point

52×135×57

Expandable with one XWT unit

GX-OD1621

16-point PNP output unit

24 VDC, 0.5 A per point

52×200×69

3-tier connection for direct sensor wiring

GX-OD1622

8-point input + 8-point output unit (NPN)

24 VDC, input 6 mA, output 0.5 A per point

52×135×57

-

GX-MD1611

8-point input + 8-point output unit (NPN)

24 VDC, input 6 mA, output 0.5 A per point

52×200×69

3-tier connection for direct sensor wiring

GX-MD1612

8-point input + 8-point output unit (PNP)

24 VDC, input 6 mA, output 0.5 A per point

52×135×57

-

GX-MD1621

8-point input + 8-point output unit (PNP)

24 VDC, input 6 mA, output 0.5 A per point

52×200×69

3-tier connection for direct sensor wiring

GX-MD1622

4-Channel analog input unit

1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,

52×135×57

Resolution 1/6000, conversion time 4 ms (4 inputs)

GX-AD0471

2-Channel analog output unit

1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,

52×135×57

Resolution 1/6000, conversion time 2 ms (2 outputs)

GX-DA0271

1-Channel incremental encoder input (24V)

Open collector, up to 125 kHz

52×215×69

A, B, Z, 2 × Latch, Reset inputs

GX-EC0211

1-Channel incremental encoder input (line driver)

RS422 signal level, up to 1 MHz

52×215×69

A, B, Z, 2 × Latch, Reset inputs

GX-EC0241

Expansion units

Unit Type

Specification

Size in mm (H×W×D)

Remarks

Order code

8-point PNP input expansion unit

24 VDC, 6 mA per point

50×66×50

Expansion unit for GX, DRT2 and CRT1 series

XWT-ID08-1

16-point PNP input expansion unit

24 VDC, 6 mA per point

50×94×50

Expansion unit for GX, DRT2 and CRT1 series

XWT-ID16-1

8-point PNP output expansion unit

24 VDC, 0.5 A per point

50×66×50

Expansion unit for GX, DRT2 and CRT1 series

XWT-OD08-1

16-point PNP output expansion unit

24 VDC, 0.5 A per point

50×94×50

Expansion unit for GX, DRT2 and CRT1 series

XWT-OD16-1

3 port branching uni

24 VDC, 3 x RJ45

90×25×78

EtherCAT junction box for T-branching

GX-JC03

6 port branching unit

24VDC, 6 x RJ45

90×48×78

EtherCAT junction box for star branching

GX-JC06

Note:To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
