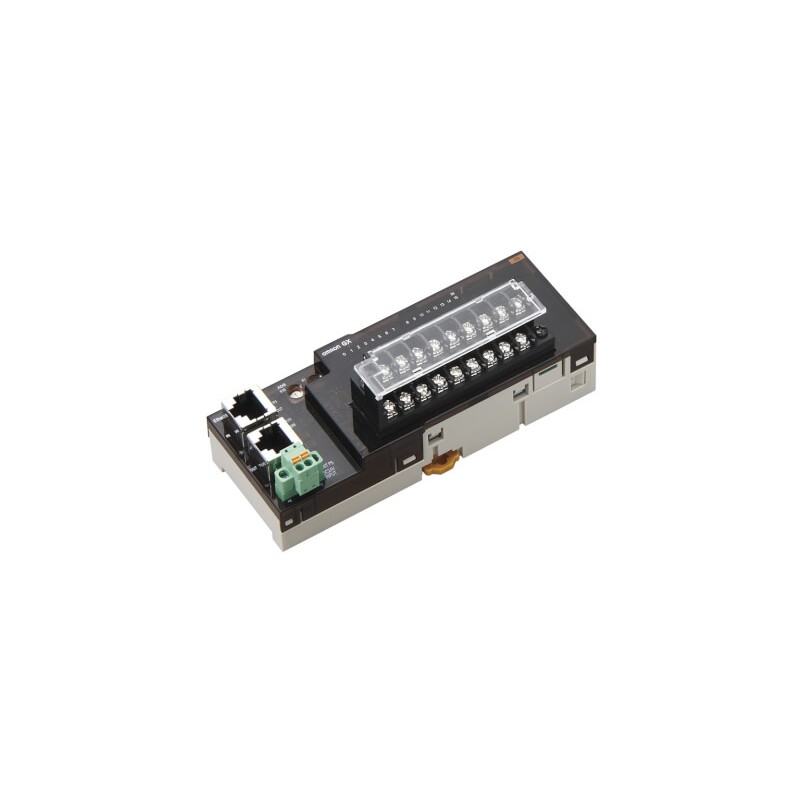

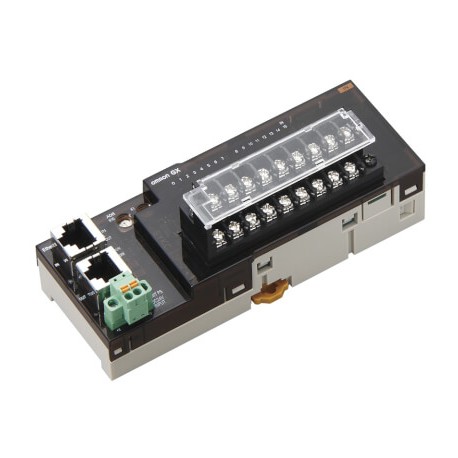

XWT-ID16 XWT 7002F XWTID16CHN OMRON Module Expansion 16 Inputs NPN

Name: XWT-ID16 XWT 7002F XWTID16CHN OMRON Module Expansion 16 Inputs NPN
Brand: OMRON
SKU: OMRXWT7002F
Price: 501.25 USD
Availability: OutOfStock

Reference: XWT-ID16

Code: XWT 7002F

Catalog Number: XWTID16CHN

Manufacturer: OMRON

Description:

Module Expansion 16 Inputs NPN

CRT1/DRT2/GX-series I/O expansion unit, 16 x 24 VDC inputs, NPN (1 max per I/O terminal, specific models only)

Categories:

PLC's > Fieldbus, decentr. periphery - digital I/O module
OMRON > Remote I/O > Other Remote I/O

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 447,78 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 weeks.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Features

When speed counts: EtherCAT I/O

EtherCAT is an extremely fast industrial automation network, which uses standard Ethernet cabling. It makes very efficient use of the standard Ethernet transmission frame, with each node accessing the entire frame on the fly. This reduces the delay in each slave to microsecond level. Its deterministic nature makes EtherCAT extremely suitable for motion control. Omron provides PLC-based as well as stand-alone motion control solutions based on EtherCAT. The GX-series I/O units provide the basic in- and outputs for such systems, including high-speed encoder inputs which can feed position information into the controller.

Compact size IP20 housing
Expandable digital I/Os
Detachable I/O terminal blocks
Selectable high-speed input response time

Ordering information

Unit Type	Specification	Size in mm (H×W×D)	Remarks	Order code
16-point NPN input unit	24 VDC, 6 mA per point	52×135×57	Expandable with one XWT unit	GX-ID1611
16-point NPN input unit	24 VDC, 6 mA per point	52×200×69	3-tier connection for direct sensor wiring	GX-ID1612
16-point PNP input unit	24 VDC, 6 mA per point	52×135×57	Expandable with one XWT unit	GX-ID1621
16-point PNP input unit	24 VDC, 6 mA per point	52×200×69	3-tier connection for direct sensor wiring	GX-ID1622
16-point relay output unit	2 A per point, max. 8 A per common	52×160×58	with easy-to-replace relays, expandable with one XWT unit	GX-OC1601
16-point NPN output unit	24 VDC, 0.5 A per point	52×135×57	Expandable with one XWT unit	GX-OD1611
16-point NPN output unit	24 VDC, 0.5 A per point	52×200×69	3-tier connection for direct sensor wiring	GX-OD1612
16-point PNP output unit	24 VDC, 0.5 A per point	52×135×57	Expandable with one XWT unit	GX-OD1621
16-point PNP output unit	24 VDC, 0.5 A per point	52×200×69	3-tier connection for direct sensor wiring	GX-OD1622
8-point input + 8-point output unit (NPN)	24 VDC, input 6 mA, output 0.5 A per point	52×135×57	-	GX-MD1611
8-point input + 8-point output unit (NPN)	24 VDC, input 6 mA, output 0.5 A per point	52×200×69	3-tier connection for direct sensor wiring	GX-MD1612
8-point input + 8-point output unit (PNP)	24 VDC, input 6 mA, output 0.5 A per point	52×135×57	-	GX-MD1621
8-point input + 8-point output unit (PNP)	24 VDC, input 6 mA, output 0.5 A per point	52×200×69	3-tier connection for direct sensor wiring	GX-MD1622
4-Channel analog input unit	1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,	52×135×57	Resolution 1/6000, conversion time 4 ms (4 inputs)	GX-AD0471
2-Channel analog output unit	1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,	52×135×57	Resolution 1/6000, conversion time 2 ms (2 outputs)	GX-DA0271
1-Channel incremental encoder input (24V)	Open collector, up to 125 kHz	52×215×69	A, B, Z, 2 × Latch, Reset inputs	GX-EC0211
1-Channel incremental encoder input (line driver)	RS422 signal level, up to 1 MHz	52×215×69	A, B, Z, 2 × Latch, Reset inputs	GX-EC0241

Expansion units

Unit Type	Specification	Size in mm (H×W×D)	Remarks	Order code
8-point PNP input expansion unit	24 VDC, 6 mA per point	50×66×50	Expansion unit for GX, DRT2 and CRT1 series	XWT-ID08-1
16-point PNP input expansion unit	24 VDC, 6 mA per point	50×94×50	Expansion unit for GX, DRT2 and CRT1 series	XWT-ID16-1
8-point PNP output expansion unit	24 VDC, 0.5 A per point	50×66×50	Expansion unit for GX, DRT2 and CRT1 series	XWT-OD08-1
16-point PNP output expansion unit	24 VDC, 0.5 A per point	50×94×50	Expansion unit for GX, DRT2 and CRT1 series	XWT-OD16-1
3 port branching uni	24 VDC, 3 x RJ45	90×25×78	EtherCAT junction box for T-branching	GX-JC03
6 port branching unit	24VDC, 6 x RJ45	90×48×78	EtherCAT junction box for star branching	GX-JC06

Note:To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
