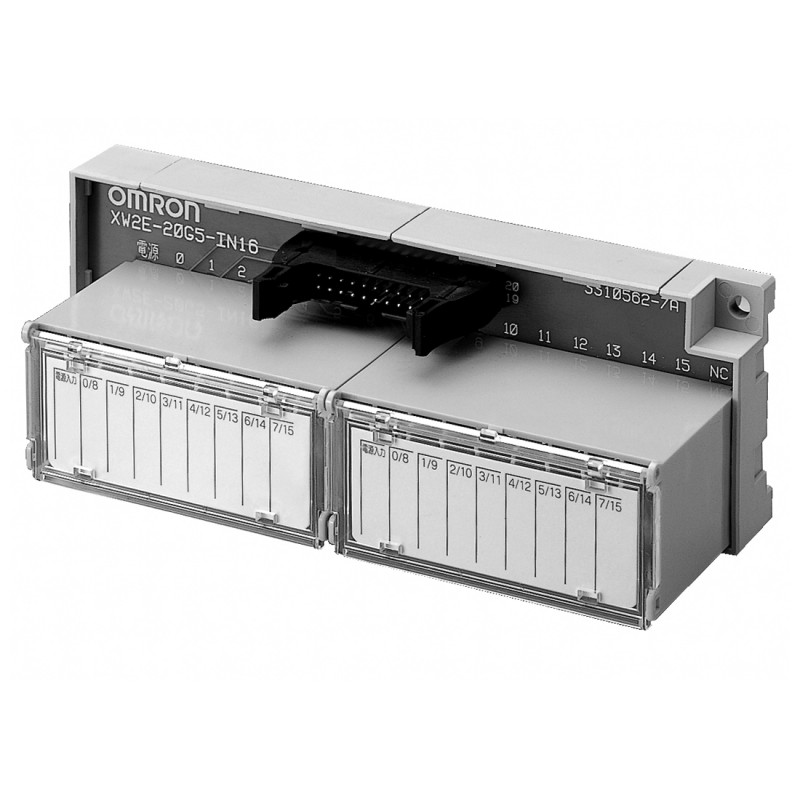

XW2E-20G5-IN16 XW2E0001R XW2E20G5IN16 OMRON Connector block 16 inputs with common
XW2E-20G5-IN16
XW2E0001R
XW2E20G5IN16
OMRON
Connector block 16 inputs with common
Control Systems > XW2
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- For 16 inputs only.
- The three-tiered terminal block simplifies wiring because the power supply terminal block is wired with just one crimp terminal.
Specifications & ordering info
Ordering Information
Connector-TerminalBlock Conversion Unit
| No. of inputs | No. of poles | Mounted Connector model | Cable Connector model | Order code |
|---|---|---|---|---|
| 16 | 20 | XG4A-2031 | XG4M-2030-T | XW2E-20G5-IN16 |
Accessories (Order Separately)
ConnectingCables for Connector-Terminal Block Conversion Units
Referto the XW2Z datasheet.
Specifications
| Rated current | 1 A |
| Rated voltage | 12 to 24 VDC |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mAmax.) |
| Ambient operating temperature | 0 to 55°C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| XW2E-20G5-IN16 XW2E20G5IN16 XW2E0001R EN_XW2E-20G5-IN16.pdf | 344 Kbytes |
|
