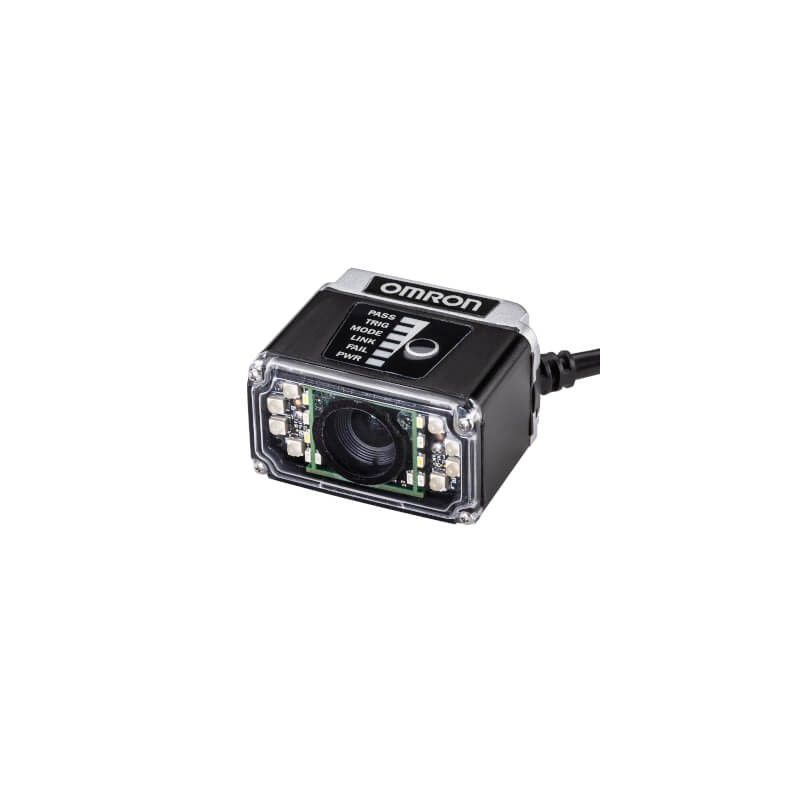

OMRON V420-F190M03M-SRX V4205076D V420F190M03MSRX.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

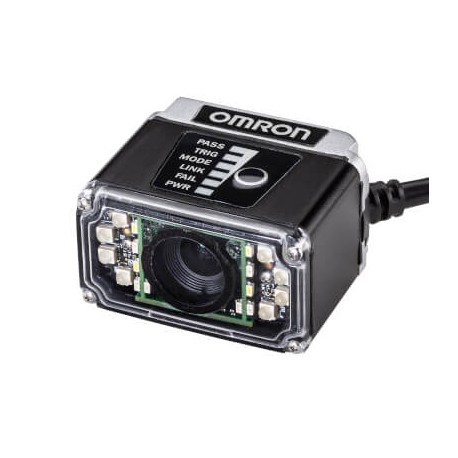

V420-F190M03M-SRX V4205076D V420F190M03MSRX,1 OMRON V420 Code Reader, 0.3 MP monochrome, Medium view, Fixed ..

Reference: V420-F190M03M-SRX

Code: V4205076D

Catalog Number: V420F190M03MSRX.1

Manufacturer: OMRON

Description:

V420 Code Reader, 0.3 MP monochrome, Medium view, Fixed focus 190 mm, Red light, X-Mode decoder, Serial RS-232, USB, or Ethernet over USB, IP54

Categories:

  • Sensors > Matrix code reader
  • OMRON > Industrial barcode readers > BarCode Readers and Smart Cameras

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Number of pixels0.3 MPCamera typeMonochromeAutofocusFocus distance190-190 mmField of view (width)121-121 mmDecoder typeX-Mode (advanced 1D+2D+DPM)Frame rate60 fpsIlluminationRed LEDCommunication port(s)Ethernet TCP/IP, Serial RS-232C, USBImage width752 pixelsImage height480 pixelsShutter typeGlobalProduct Height (unpacked)25.4 mmProduct Width (unpacked)44.5 mmProduct Depth (unpacked)38.1 mmProduct Weight (unpacked)120 gDegree of protection (IP)IP54

ETIM for 697706 Sensors (EC002999)

Feature nameType of fastening (EF002442)
Feature valueWith screws
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP54
Feature nameModel (EF000010)
Feature valueFix mounted
Feature nameType of interface (EF006977)
Feature valueEthernet
Feature nameRadio standard Bluetooth (EF007178)
Feature valueNo
Feature nameWith exchange lens (EF004053)
Feature valueNo
Feature nameRadio standard WLAN 802.11 (EF007179)
Feature valueNo
Feature nameMax. image capture frequency (EF009809)
Feature value60 Hz
Feature nameNumber of digital outputs (EF001993)
Feature value3
Feature nameMax. electricity consumption (EF000619)
Feature value0.65 A
Feature nameMax. transmission range (EF001327)
Feature value190 mm
Feature nameWidth (EF000008)
Feature value44.5 mm
Feature nameNominal voltage DC (EF004221)
Feature value5 V
Feature nameNumber of digital inputs (EF001992)
Feature value3
Feature nameHeight (EF000040)
Feature value25.4 mm
Feature nameDepth (EF000049)
Feature value38.1 mm
