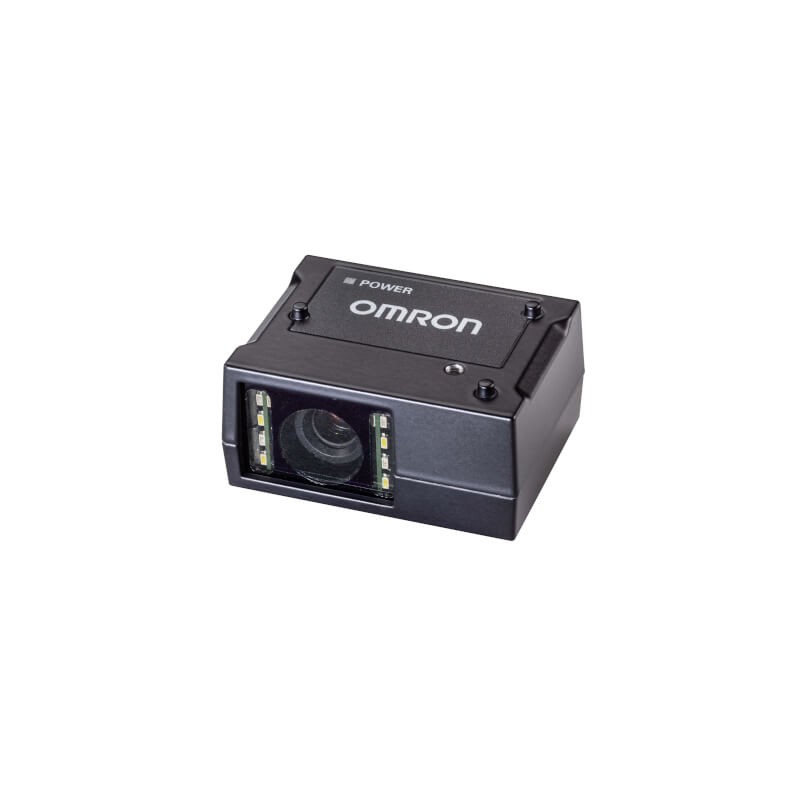

OMRON V320-F081M50C-NNX V3205100B V320F081M50CNNX.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

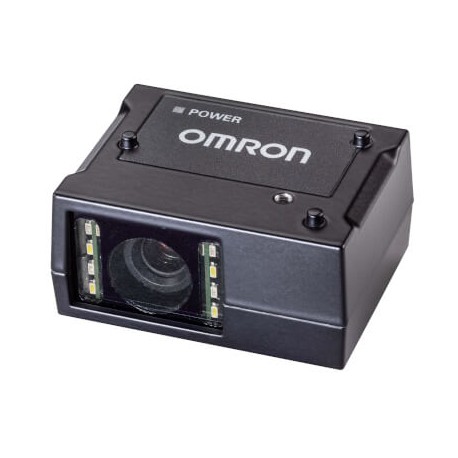

V320-F081M50C-NNX V3205100B V320F081M50CNNX,1 OMRON V320 Code reader, 5.0 MP color, Medium view, Fixed focus..

Reference: V320-F081M50C-NNX

Code: V3205100B

Catalog Number: V320F081M50CNNX.1

Manufacturer: OMRON

Description:

V320 Code reader, 5.0 MP color, Medium view, Fixed focus 81 mm, No outer light, X-Mode decoder, RS-232, Ethernet via USB, IP40

Categories:

  • Sensors > Matrix code reader
  • OMRON > Industrial barcode readers > BarCode Readers and Smart Cameras

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.838,78 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Number of pixels5.0 MPCamera typeColorAutofocusFocus distance81-81 mmField of view (width)54-54 mmDecoder typeX-Mode (advanced 1D+2D+DPM)Frame rate5 fpsIlluminationInner LEDs onlyCommunication port(s)Ethernet TCP/IP, Serial RS-232C, USBImage width2592 pixelsImage height1944 pixelsShutter typeRollingProduct Height (unpacked)24.1 mmProduct Width (unpacked)51.5 mmProduct Depth (unpacked)38.8 mmDegree of protection (IP)IP40

ETIM for 697532 Sensors (EC002999)

Feature nameType of fastening (EF002442)
Feature valueWith screws
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameModel (EF000010)
Feature valueFix mounted
Feature nameType of interface (EF006977)
Feature valueEthernet
Feature nameRadio standard Bluetooth (EF007178)
Feature valueNo
Feature nameWith exchange lens (EF004053)
Feature valueNo
Feature nameRadio standard WLAN 802.11 (EF007179)
Feature valueNo
Feature nameMax. image capture frequency (EF009809)
Feature value5 Hz
Feature nameNumber of digital outputs (EF001993)
Feature value1
Feature nameMax. electricity consumption (EF000619)
Feature value0.45 A
Feature nameMax. transmission range (EF001327)
Feature value81 mm
Feature nameWidth (EF000008)
Feature value51.5 mm
Feature nameNominal voltage DC (EF004221)
Feature value5 V
Feature nameNumber of digital inputs (EF001992)
Feature value1
Feature nameHeight (EF000040)
Feature value24.1 mm
Feature nameDepth (EF000049)
Feature value38.8 mm
