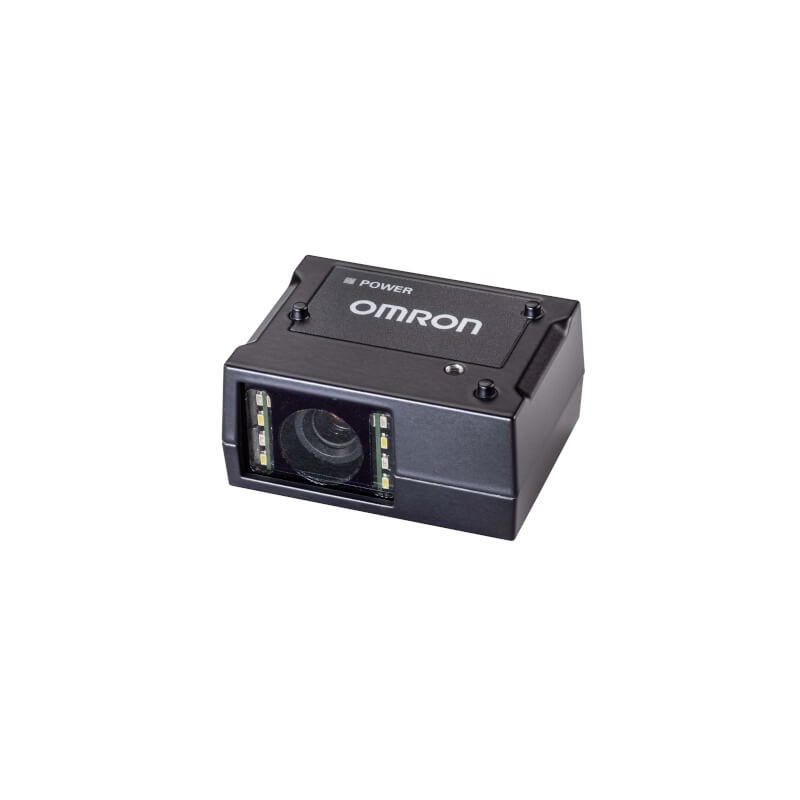

OMRON V320-F064M03M-NNP V3205017M V320F064M03MNNP.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

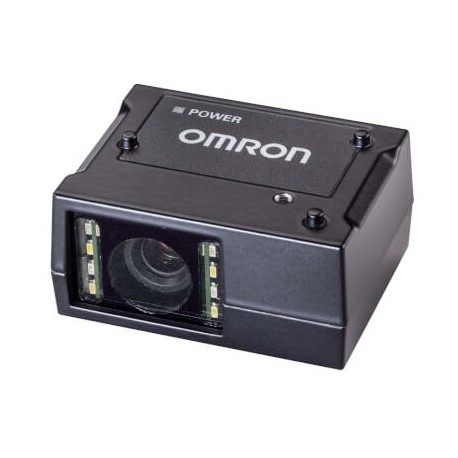

V320-F064M03M-NNP V3205017M V320F064M03MNNP,1 OMRON V320 Code reader, 0.3 MP monochrome, Medium view, Fixed ..

Reference: V320-F064M03M-NNP

Code: V3205017M

Catalog Number: V320F064M03MNNP.1

Manufacturer: OMRON

Description:

V320 Code reader, 0.3 MP monochrome, Medium view, Fixed focus 64 mm, No outer light, 1D/2D decoder, RS-232, Ethernet via USB, IP40

Categories:

  • Sensors > Matrix code reader
  • OMRON > Industrial barcode readers > BarCode Readers and Smart Cameras

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Number of pixels0.3 MPCamera typeMonochromeAutofocusFocus distance64-64 mmField of view (width)43-43 mmDecoder typePlus Mode (high-speed 1D+2D)Frame rate60 fpsIlluminationInner LEDs onlyCommunication port(s)Ethernet TCP/IP, Serial RS-232C, USBImage width752 pixelsImage height480 pixelsShutter typeGlobalProduct Height (unpacked)24.1 mmProduct Width (unpacked)51.5 mmProduct Depth (unpacked)38.8 mmDegree of protection (IP)IP40

ETIM for 697473 Sensors (EC002999)

Feature nameType of fastening (EF002442)
Feature valueWith screws
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameModel (EF000010)
Feature valueFix mounted
Feature nameType of interface (EF006977)
Feature valueEthernet
Feature nameRadio standard Bluetooth (EF007178)
Feature valueNo
Feature nameWith exchange lens (EF004053)
Feature valueNo
Feature nameRadio standard WLAN 802.11 (EF007179)
Feature valueNo
Feature nameMax. image capture frequency (EF009809)
Feature value60 Hz
Feature nameNumber of digital outputs (EF001993)
Feature value1
Feature nameMax. electricity consumption (EF000619)
Feature value0.45 A
Feature nameMax. transmission range (EF001327)
Feature value64 mm
Feature nameWidth (EF000008)
Feature value51.5 mm
Feature nameNominal voltage DC (EF004221)
Feature value5 V
Feature nameNumber of digital inputs (EF001992)
Feature value1
Feature nameHeight (EF000040)
Feature value24.1 mm
Feature nameDepth (EF000049)
Feature value38.8 mm
