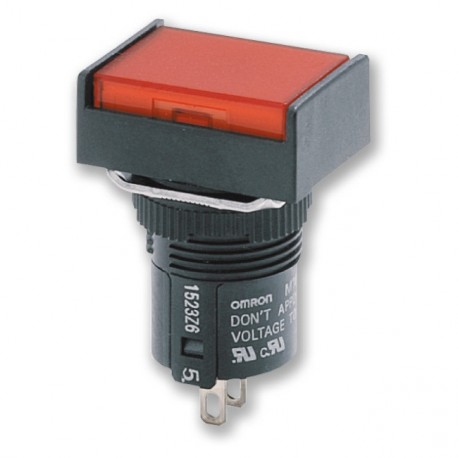

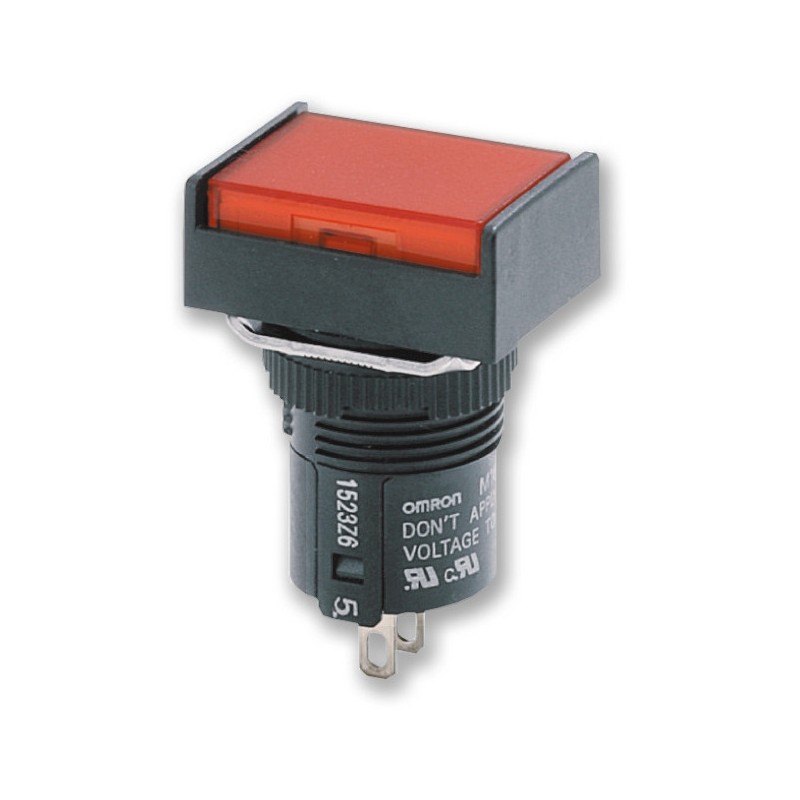

A16-2NRN 160017 OMRON Race Final Industrial / Push buttons, red neon lamp 220Vac View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

A16-2NRN 160017 OMRON Race Final Industrial / Push buttons, red neon lamp 220Vac

A16-2NRN

160017

OMRON

Available

Ship on today

Race Final Industrial / Push buttons, red neon lamp 220Vac

More details


Safety

Industrial Limit switches / Pushbuttons

A16

* Brand new produt in its original packing covered by the warranties and certifications provided by OMRON

*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Pushbutton Switch
A16
Mounting Aperture of 16 mm
• Modular construction
(Pushbutton + Case + Lamp + Switch)
• Wide Variety of Control and Signal Devices: Lighted, Non-Light- ed, and Buzzer
• UL and cUL approved.
• Conforms to EN60947-5-1, IEC947-5-1
• Quick and easy assembly, snap-in Switch.
• Wide range of switching capacity from standard to microload
• High reliability, IP65
• Short mounting depth, less than 28.5 mm below panel
Model Number Structure
■ Model Number Legend
Completely Assembled
The model numbers used to order sets of Units are illustrated below. One set comprises the Pushbutton, Lamp (lighted models only), Case, and
Switch.
(1)(2) (3)(4)(5) (6) (7)
A 1 65 L - J R M - 24D - 2
(1) Degree of Protection
Symbol Protection
(7) Contact Configuration
Symbol TypeTerminal
No symbol IP40
5IP65 oil-resistant
(2) Lighted/Non-lighted
1 SPDT
2 DPDT
1PSPDT
Solder
Terminal
PCB
Symbol
No symbol
Type
Non-lighted
2PDPDT
2SDPDT
Terminal
Screw-Less
Clamp
LLighted
(3) Shape of Pushbutton
(6) Light Source
Only DPDT contacts are available with Screw-Less Clamp.
SymbolShape
JRectangular 2-way guard
(4) Color of Pushbutton
(5) Switch Operation
Symbol Type
Operating voltage
Rated voltage
A Square 2-way guard
Symbol Color
SymbolOperation
No symbol
Non-lighted
TRoundProjecting model
RRed
M Momentary
55 VAC/VDC 6 VAC/VDC
3JRectangular 3-way guard
YYellow
AAlternate
12 Incandescent lamp
12 VAC/VDC 14 VAC/VDC
BA Square 24-mm square
PYPure yellow
GGreen W White ABlue
B Black (non-lighted models only)
Momentary-action:Self-resetting
Alternate-action: Self-holding
2424 VAC/VDC 28 VAC/VDC
5D 5 ±5% VDC5 VDC
12DLED 12 ±5% VDC 12 VDC
24D 24 ±5% VDC 24 VDC
Voltage Reduction Unit (24-V Built-in LED)
"Colored-illumination" models
SymbolType
Operating voltage
Rated voltage
operate in the way shown below:
T1 LED
90 to 121 VAC/VDC110 VAC
UnlitLit
White Color
The built-in LED
is colored.
T2 180 to 242 VAC/VDC220 VAC
Note: 1. Solder terminals are available only with 100-V
models.
2. The Voltage Reduction Unit is not available for models with PCB terminals.
Pushbutton Switch A16G-5
