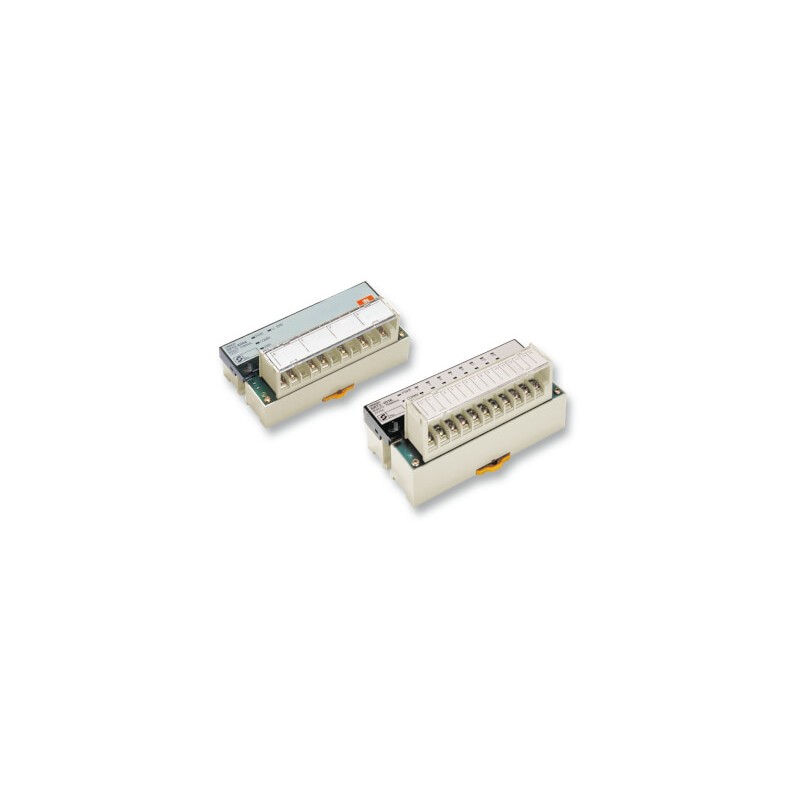

SRT2-ROC08 SRT27012M SRT2ROC08CHN OMRON Module 8 relay Outputs Compobus/S
SRT2-ROC08
SRT27012M
SRT2ROC08CHN
OMRON
Module 8 relay Outputs Compobus/S
Module 8 Compobus/S relay outputs
CompoBus/S digital output terminal, 8x relay outputs, 3 A, max. 3 A per common
PLC's > Fieldbus, decentr. periphery - digital I/O module
Remote I/O > SRT (Compobus S)
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Fast and easy over CompoBus/S
Omron's unique CompoBus/S is the most efficient I/O bus for machine automation. With free topology and up to 500 m bus length in long-distance mode, it can be used as a remote I/O system. In high-speed mode (100 m max.) the guaranteed sub-millisecond cycle time makes it ideal for efficient machine control. Used with the compact CPM2C-S PLC as master, your machine control system will fit in the smallest spaces.
- Compact size in IP20 housing
- Fast cycle time; less than 1 ms per 256 I/O points
- Easy set-up; no software required
- Choice of 4- 8- and 16-point Digital I/O; transistor-, and relay models
- Analog In/Outputs and customisable modules available
Ordering information
0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, | ||||
0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, |
Note:To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
Accessories
CompoBus/S 4-wire flatcable for power and communication (100 m) | |
| Feature Name | Feature Value |
|---|---|
| Type of output voltage (EF008222) | AC/DC |
| Degree of protection (IP) (EF005474) | IP20 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Type of digital output (EF003601) | Relay |
| Type of electric connection (EF003961) | Screw connection |
| Radio standard UMTS (EF008525) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Short-circuit protection, outputs available (EF003203) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Digital inputs configurable (EF008516) | No |
| Digital outputs configurable (EF008520) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| System accessory (EF004118) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Supporting protocol for ASI (EF003051) | No |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 100 mm |
| Number of digital inputs (EF001992) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Depth (EF000049) | 50 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of digital outputs (EF001993) | 8 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Output current (EF003202) | 3 A |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Height (EF000040) | 50 mm |
| Supply voltage DC (EF007534) | 20.4 V |
| Permitted voltage at output (EF007553) | 0 V |
