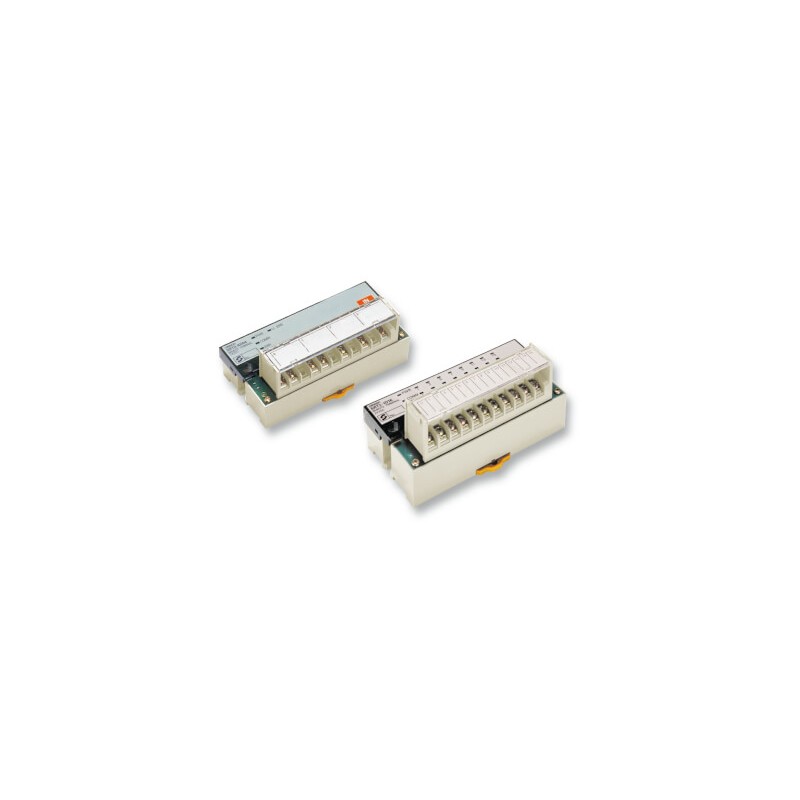

SRT2-ID04-1 SRT27001E SRT2ID041CHN OMRON Module 4 PNP inputs Compobus/S

4-point PNP input unit

24 VDC, 6 mA per point

48×80×50

Compact IP20 I/O

SRT2-ID04-1

8-point PNP input unit

24 VDC, 6 mA per point

48×80×50

Compact IP20 I/O

SRT2-ID08-1

16-point PNP input unit

24 VDC, 6 mA per point

48×105×50

Compact IP20 I/O

SRT2-ID16-1

16-point PNP input unit

24 VDC, 6 mA per point

50×180×59

3-tier connection for direct sensor wiring

SRT2-ID16T-1

4-point PNP output unit

24 VDC, 0.3 A per point

48×80×50

Compact IP20 I/O

SRT2-OD04-1

8-point PNP output unit

24 VDC, 0.3 A per point

48×80×50

Compact IP20 I/O

SRT2-OD08-1

16-point PNP output unit

24 VDC, 0.3 A per point

48×105×50

Compact IP20 I/O

SRT2-OD16-1

16-point PNP output unit

24 VDC, 0.5 A per point

50×180×59

3-tier connection for direct sensor/actuator wiring

SRT2-OD16T-1

8-point input + 8-point output unit (PNP)

24 VDC, input 6 mA, output 0.3 A per point

50×180×59

3-tier connection for direct actuator wiring

SRT2-MD16T-1

8-point relay output unit

Max. 3 A per point

50×100×50

with easy-to-replace relays

SRT2-ROC08

16-point relay output unit

Max. 3 A per point

50×155×50

with easy-to-replace relays

SRT2-ROC16

4-Channel analog input unit

0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V,
0 to 20 mA, 4 to 20 mA

48×105×50

Resolution 1/6000, conversion time 4 ms (4 inputs)

SRT2-AD04

2-Channel analog output unit

0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V,
0 to 20 mA, 4 to 20 mA

48×105×50

Resolution 1/6000, conversion time 2 ms (2 outputs)

SRT2-DA02

CompoBus/S 4-wire flatcable for power and communication (100 m)

SCA1-4F10

CompoBus/S branch connector (IDC) for flatcable

SCN1-TH4

CompoBus/S termination connector (IDC) for flatcable

SCN1-TH4T

CompoBus/S termination block (screw connection)

SRS1-T
