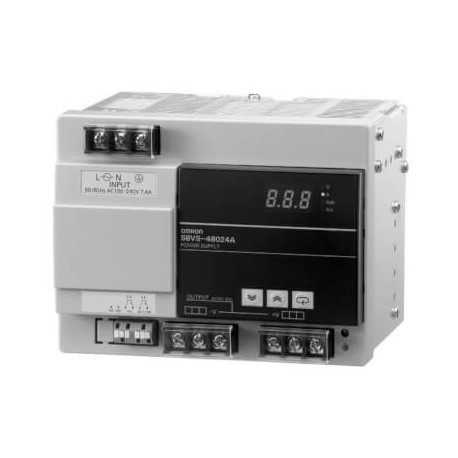

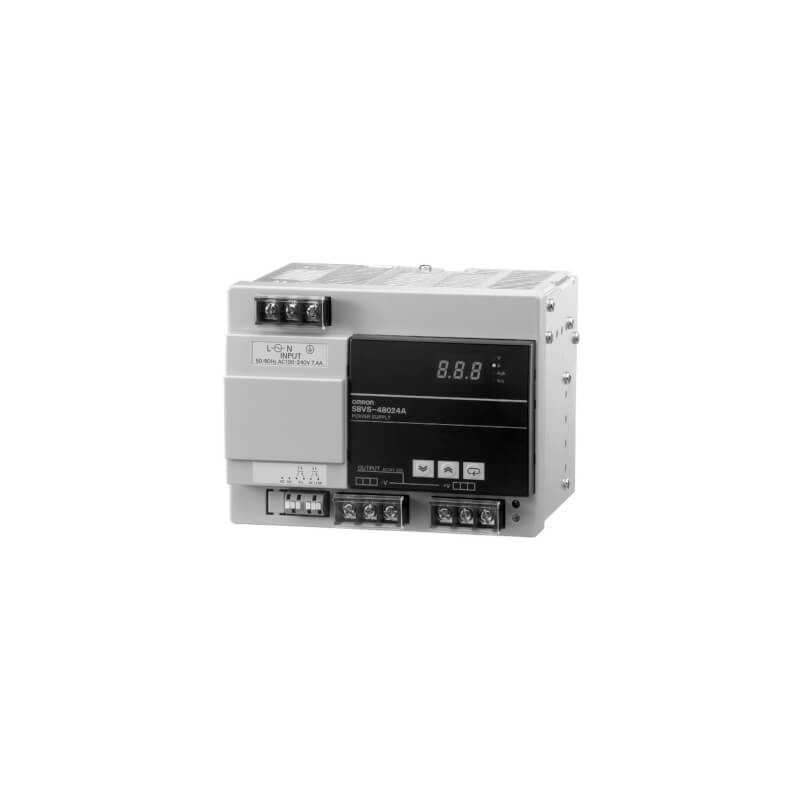

OMRON S8VS-48024A S8VS0167E S8VS48024A.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

S8VS-48024A S8VS0167E S8VS48024A,1 OMRON 480W / 24V / 20A DIN Rail

Reference: S8VS-48024A

Code: S8VS0167E

Catalog Number: S8VS48024A.1

Manufacturer: OMRON

Description:

480W / 24V / 20A DIN Rail
Power supply, 480 W, 100 to 240 VAC input, 24 VDC, 20 A output, DIN rail mounting, digital display running voltage and current, peak current, and fore
Power supply, 480 W, 100 to 240 VAC input, 24 VDC, 20 A output, DIN rail mounting, digital display running voltage and current, peak current, and forecast monitoring function with settable alarm point

Categories:

  • Low-voltage industrial components > DC-power supply
  • OMRON > Power supplies > S8VS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 834,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output480 WEfficiency93 %Rated output current20 ATemperature range-10-60 °CTerminal typeScrewCommunication port(s)NoneAlarm functionTransistor - sinking, Transistor - sourcingNumber of output branches1Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VAllowable supply voltage DC80-370 VProduct Width (unpacked)151.2 mmProduct Height (unpacked)120 mmProduct Depth (unpacked)127.2 mm

ETIM for 333444 Low-voltage industrial controls and switchgear (EC002540)

Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueNone
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameWall mounting possible (EF003973)
Feature valueNo
Feature nameSecondary voltage adjustable (EF007002)
Feature valueYes
Feature nameModular version (EF001126)
Feature valueYes
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameStabilized (EF005302)
Feature valueYes
Feature nameOutput voltage stabilized (EF003092)
Feature valueYes
Feature nameDirect mounting possible (EF005689)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameShort-circuit-proof (EF007332)
Feature valueNo
Feature namePower consumption (EF000346)
Feature value560 VA
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameNominal value output voltage 1 (EF009393)
Feature value24 V
Feature nameWidth (EF000008)
Feature value150 mm
Feature nameDepth (EF000049)
Feature value127.2 mm
Feature nameMax. output current 1 (EF008284)
Feature value20 A
Feature nameBuilt-in height (EF000332)
Feature value127.2 mm
Feature nameBuilt-in width (EF000846)
Feature value150.000 mm
Feature nameHeight (EF000040)
Feature value115 mm
Feature namePower output (EF003034)
Feature value480 W
Feature nameNominal value output current 1 (EF009396)
Feature value20 A
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value100 V
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value100 V
Feature name1st secondary output voltage (EF006792)
Feature value21.6 V
