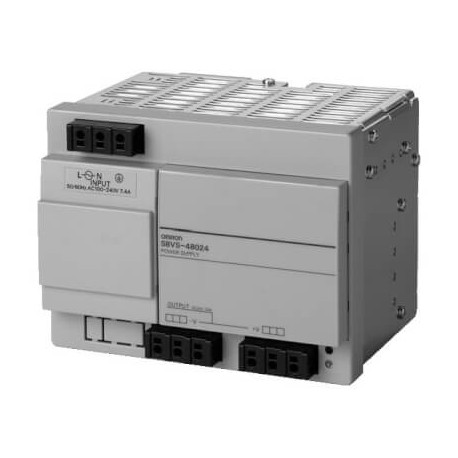

OMRON S8VS-48024 S8VS0169A S8VS48024.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

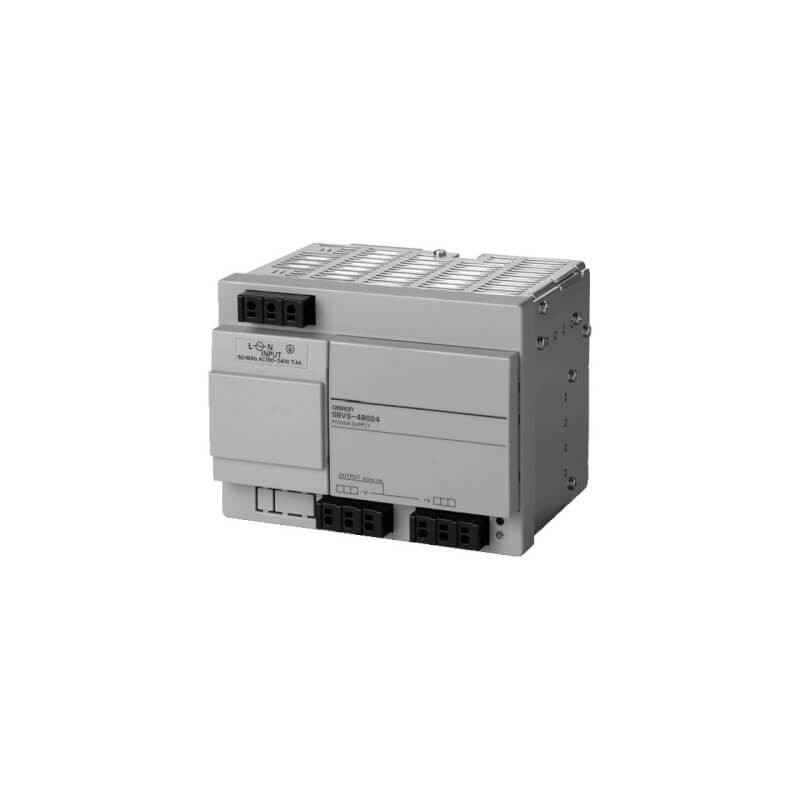

S8VS-48024 S8VS0169A S8VS48024,1 OMRON 480W / 24V / 20A DIN Rail

Reference: S8VS-48024

Code: S8VS0169A

Catalog Number: S8VS48024.1

Manufacturer: OMRON

Description:

480W / 24V / 20A DIN Rail
Power supply, 480 W, 100-240 VAC input, 24 VDC, 20 A output, DIN rail mounting, basic model

Categories:

  • Low-voltage industrial components > DC-power supply
  • OMRON > Power supplies > S8VS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 458,37 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Specifications

TypeBook type
Mounting methodDIN rail
PhaseSingle
Power output480 W
Efficiency93 %
Output voltage24 V
Rated output current20 A
Temperature range25-85 °C
TerminalScrew
Communication port(s)None
Alarm function-
Number of output branches1
Rated supply voltage at AC 50 Hz100-240 V
Allowable supply voltage AC85-264 V

ETIM for 323513 Low-voltage industrial controls and switchgear (EC002540)

Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueNone
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameWall mounting possible (EF003973)
Feature valueYes
Feature nameSecondary voltage adjustable (EF007002)
Feature valueYes
Feature nameModular version (EF001126)
Feature valueYes
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameStabilized (EF005302)
Feature valueYes
Feature nameOutput voltage stabilized (EF003092)
Feature valueYes
Feature nameDirect mounting possible (EF005689)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameShort-circuit-proof (EF007332)
Feature valueNo
Feature namePower consumption (EF000346)
Feature value560 VA
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameNominal value output voltage 1 (EF009393)
Feature value24 V
Feature nameWidth (EF000008)
Feature value150 mm
Feature nameDepth (EF000049)
Feature value127.2 mm
Feature nameMax. output current 1 (EF008284)
Feature value20 A
Feature nameBuilt-in height (EF000332)
Feature value127.2 mm
Feature nameBuilt-in width (EF000846)
Feature value150.000 mm
Feature nameHeight (EF000040)
Feature value115 mm
Feature namePower output (EF003034)
Feature value480 W
Feature nameNominal value output current 1 (EF009396)
Feature value20 A
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value100 V
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value100 V
Feature name1st secondary output voltage (EF006792)
Feature value21.6 V
